Figure 21. Stm32H7X7I-Eval Mcu - ST STM32H757I-EVAL User Manual

U7A
PA0 N5
WAKEUP PA0
PA1 N4
RMII_REF_CLK PA1
PA2 N3
ETH_MDIO PA2
ULPI_D0 PA3 U2
LED3_RGB PA3
PA4 U3
EXT_RESET PA4
PA5 T3
ULPI_CK PA5
PA6 R3
LCD_BL_CTRL PA6
PA7 R5
RMII_CRS_DV PA7
PA8 E15
MCO PA8
R255 10K PA9 D15
VBUS_FS2 PA9
SB59 Closed PA10 D14
USB_FS2_DM USB_FS2_ID PA10
JP2 PA11 E17
FDCAN1_RX PA11
SB50 Closed PA12 E16
FDCAN1_TX PA12
SB60 Closed PA13 C15
USB_FS2_DP TMS/SWDIO PA13(JTMS/SWDIO)
PA14 B14
TCK/SWCLK PA14(JTCK/SWCLK)
PA15 A14
TDI PA15(JTDI)
CEC
ULPI_D1 PB0 U5
PB0
ULPI_D2 PB1 T5
PB1
PB2 R34 33 R6
QSPI_CLK PB2
PB3 C6
TDO/SWO PB3(JTDO/TRACESWO)
PB4 B7
TRST PB4(NJTRST)
ULPI_D7 PB5 A5
PB5
PB6 B5
I2C1_SCL PB6
PB7 C5
I2C1_SDA PB7
PB8 D5
SDIO1_CKIN PB8
PB9 D4
SDIO1_CDIR PB9
ULPI_D3 PB10 P11
PB10
ULPI_D4 PB11 P12
PB11
SB48 Open ULPI_D5 PB12 T14
USB_FS1_ID PB12
R254 [N/A] ULPI_D6 PB13 U14
VBUS_FS1 PB13
SB46 Closed PB14 U15
USART1_TX PB14
SB47 Open PB15 T15
USB_FS1_DM PB15
SB51 Closed
USART1_RX
SB49 Open
USB_FS1_DP
SB38 Closed PC0 L2
ETH_MDC ULPI_STP PC0
PC1 M2
PDM1_D1 PC1
PC2 M3
DFSDM_CLK PC2
PC3 M4
DFSDM_DATA1 PC3
PC4 T4
RMII_RXD0 PC4
PC5 U4
RMII_RXD1 PC5
SB58 Closed PC6 F14
SDIO1_D0DIR PC6
PC7 F13
SDIO1_D123DIR PC7
PC8 E13
SDIO1_D0 PC8
PC9 E14
SDIO1_D1 PC9
SB45 Open PC10 A13
QSPI_BK2_NCS SDIO1_D2 PC10
PC11 B13
SDIO1_D3 PC11
PC12 C12
SDIO1_CLK PC12
PC13 E3
TAMPER_KEY PC13
PC14 C2
PC14-OSC32_IN
C11 1.5pF R18 0 PC15 C1
PC15-OSC32_OUT
STM32H7
X2
NX3215SA-32.768KHZ-EXS00A-MU00525
C10 1.5pF R17 0
PA[0..15]
PA[0..15]
D[0..31]
D[0..31]
PB[0..15]
PB[0..15]
A[0..23]
A[0..23]
PC[0..15]
PC[0..15]
PD[0..15]
PD[0..15]
LCD_R[0..7]
LCD_R[0..7]
PE[0..15]
PE[0..15]
LCD_G[0..7]
LCD_G[0..7]
PF[0..15]
PF[0..15]
LCD_B[0..7]
LCD_B[0..7]
ULPI_D[0..7]
ULPI_D[0..7]

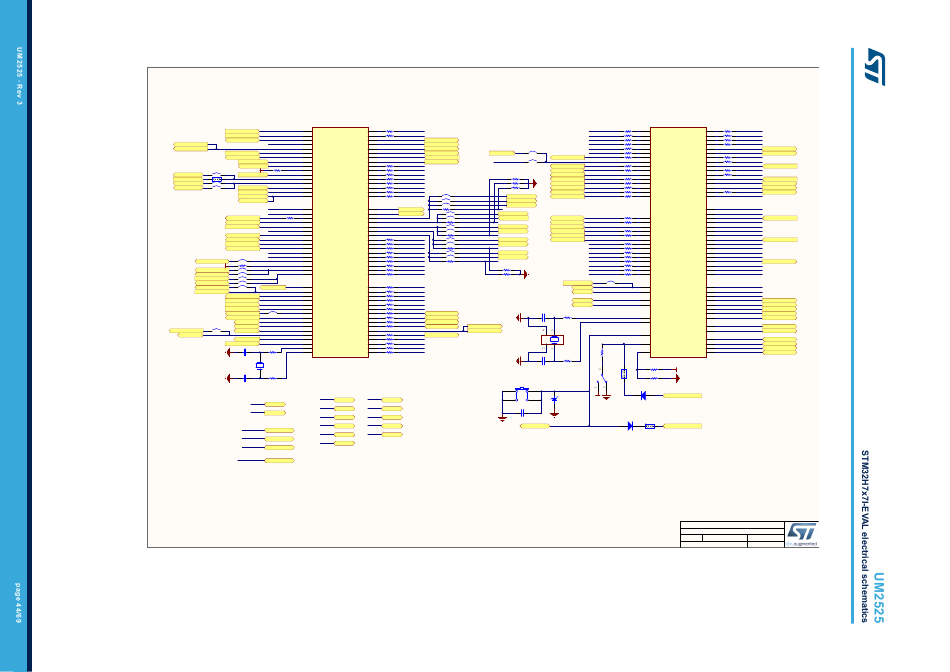

Figure 21. STM32H7x7I-EVAL MCU
D13 R265 33 PD0 D2
PD0
E12 R262 33 PD1 D3
PD1
D12 PD2
PD2 SDIO1_CMD
B12 PD3
PD3 FDCAN1_STBY
A12 PD4
PD4 FMC_NOE
A11 PD5 SB62
PD5 FMC_NWE ETH_nINT
B11 PD6
PD6 FMC_NWAIT
C11 PD7 SAI1_MCLKA SB56
PD7 FMC_NE1
U16 R73 33 PD8 D13
PD8
T17 R76 33 PD9 D14
PD9
T16 R75 33 PD10 D15
PD10
R15 R275 33 PD11 A16 R233 220K
PD11
R16 R274 33 PD12 A17 R238 220K
PD12
R17 R271 33 PD13 A18 R241 220K
PD13
P16 R77 33 PD14 D0
PD14
P15 R269 33 PD15 D1 SB15 Closed
PD15 TRACE_CK
SB57 Closed SAI1_MCLKA
SAI1_MCLKA
SB11 Closed
PDM1_CLK1
C4 PE0 R234 33 PE2 A23
PE0 FMC_NBL0
B4 PE1 SB9 Closed
PE1 FMC_NBL1 TRACE_D0
C3 SB8 Closed
PE2 SAI1_SDB
D3 R236 33 PE3 A19
PE3
D2 SB7 Closed
PE4 TRACE_D1
D1 SB5 Closed
PE5 SAI1_FSA
E5 R231 33 PE4 A20
PE6
U9 R54 33 PE7 D4 SB41 Closed
PE7 TRACE_D2
T9 R67 33 PE8 D5 SB42 Closed
PE8 SAI1_SCKA
P9 R66 33 PE9 D6 R217 33 PE5 A21
PE9
N9 R280 33 PE10 D7 SB3 Closed
PE10 TRACE_D3
P10 R68 33 PE11 D8 SB2 Closed
PE11 SAI1_SDA
R10 R278 33 PE12 D9 R230 33 PE6 A22
PE12
T10 R70 33 PE13 D10
PE13
U10 R277 33 PE14 D11 R218 220K
PE14
R11 R69 33 PE15 D12 R227 220K
PE15
G4 R224 33 PF0 A0
PF0
G3 R226 33 PF1 A1
PF1
G1 R222 33 PF2 A2
PF2
H4 R223 33 PF3 A3
PF3
J5 R221 33 PF4 A4
PF4
J4 R219 33 PF5 A5
PF5
K2 R14 33 PF6 C8
PF6 QSPI_BK1_IO3
K3 R13 33 PF7
PF7 QSPI_BK1_IO2
K4 R232 33 PF8
PF8 QSPI_BK1_IO0
L4 R239 33 PF9
PF9 QSPI_BK1_IO1 LED1_RGB
L3 PF10
PF10 DSI_RESET
T7 R252 33 PF11
PF11 SDNRAS
R7 R250 33 PF12 A6 X1
PF12
P7 R251 33 PF13 A7 NX3225HA-25MHz-EXS00A-CH00343
PF13
P8 R53 33 PF14 A8
PF14
R9 R279 33 PF15 A9
PF15
C9
B1
TD-0341 [RESET/Black]
1 2
PG[0..15] 4 3
PG[0..15]
PH[0..15] C94
PH[0..15]
PI[0..15]
PI[0..15]
100nF
PJ[0..15]
PJ[0..15] RESET#
PK[0..7]
PK[0..7]
U7B
A10 PG0 R50 33 T8 A16
PG0 PI0
A11 PG1 R51 33 U8 A15
PG1 PI1
A12 PG2 R270 33 H16 B15
PG2 PI2
A13 PG3 R260 33 H15 C14
PG3 PI3
A14 PG4 R261 33 H14 A4
PG4 PI4
Closed A15 PG5 R272 33 G14 A3
PG5 PI5
PG6 R259 33 G15 A2
QSPI_BK1_NCS PG6 PI6
Open PG7 F16 B3
PG7 PI7
PG8 R268 33 F15 E4
SDCLK PG8 PI8
PG9 R244 33 A10 E2
QSPI_BK2_IO2 PG9 PI9
PG10 A9 F3
FMC_NE3 PG10 PI10
PG11 R49 33 B9 F4
RMII_TX_EN PG11 PI11
PG12 R48 33 C9 H1
RMII_TXD1 PG12 PI12
PG13 R37 33 D9 H2
RMII_TXD0 PG13 PI13
PG14 R29 33 D8 H3
QSPI_BK2_IO3 PG14 PI14
PG15 R245 33 D6 P5
SDNCAS PG15 PI15
N6
PJ0
P6
PJ1
PH2 R228 33 N2 T6
QSPI_BK2_IO0 PH2 PJ2
PH3 R235 33 P2 U6
QSPI_BK2_IO1 PH3 PJ3
PH4 P3 U7
ULPI_NXT PH4 PJ4
PH5 R248 33 P4 R12
SDNWE PH5 PJ5
PH6 R58 33 T11 N15
SDNE1 PH6 PJ6
PH7 U13 N14
SDCKE1 PH7 PJ7
D16 PH8 R71 33 T13 N13
PH8 PJ8
D17 PH9 R72 33 R13 M14
PH9 PJ9
D18 PH10 R276 33 P13 L14
PH10 PJ10
D19 PH11 R273 33 P14 K14
PH11 PJ11
D20 PH12 R74 33 R14 D11
PH12 PJ12
D21 PH13 R258 33 D16 E10
PH13 PJ13
D22 PH14 R257 33 B17 D10
PH14 PJ14
D23 PH15 R266 33 B16 B10
PH15 PJ15
SB43 Closed
Potentiometer
PA0_C T1 J14
PA0_C PA0_C PK0
PA1_C T2 J15
PA1_C PA1_C PK1
H17
PK2
PC2_C R1 C8
PC2_C PC2_C PK3
PC3_C R2 B8
PC3_C PC3_C PK4
A8
PK5
3.9pF C7
PK6
R15 0 PH0 J2 D7
PH0-OSCIN PK7
PH1 J1
PH1-OSCOUT
L16
DSI_CKP
L17
DSI_CKN
RESET# K1
NRST
M16
DSI_D0P
BOOT0 E8 M17
BOOT0 DSI_D0N
K16
DSI_D1P
R3 E7 K17
PDR_ON DSI_D1N
10K
R16 0 STM32H7
3.9pF SW1 R247 10K
+3V3
09.03290.01 JP3
R249 [N/A]
D3
Bootloader_BOOT0
+3V3
D19 BAT60JFILM
ESDALC6V1-1U2
D1
JP6
Bootloader_RESET
BAT60JFILM
Title: MCU
Project: STM32H7xxI-EVAL
Size: A3 Reference:
Date: 2/13/2019
R256 33 PI0 D24
R264 33 PI1 D25
R263 33 PI2 D26
R267 33 PI3 D27
PI4
FMC_NBL2
PI5
FMC_NBL3
R243 33 PI6 D28
R240 33 PI7 D29
PI8
EXPANDER_INT
R242 33 PI9 D30
R246 33 PI10 D31
PI11
ULPI_DIR
PI12
LCD_HSYNC
PI13
LCD_VSYNC
R220 0 PI14
LCD_CLK
PI15 LCD_R0
PJ0 LCD_R1
PJ1 LCD_R2
PJ2 LCD_R3
DSI_TE
PJ3 LCD_R4
PJ4 LCD_R5
PJ5 LCD_R6
PJ6 LCD_R7
PJ7 LCD_G0
TRGIN
PJ8 LCD_G1
PJ9 LCD_G2
PJ10 LCD_G3
PJ11 LCD_G4
PJ12 LCD_B0
TRGOUT
PJ13 LCD_B1
PJ14 LCD_B2
PJ15 LCD_B3
PK0 LCD_G5
PK1 LCD_G6
PK2 LCD_G7
PK3 LCD_B4
LED1_MIPI
PK4 LCD_B5
LED2_MIPI
PK5 LCD_B6
LED3_MIPI
PK6 LCD_B7
LED4_MIPI
PK7
LCD_ENB
DSI_CK_P
DSI_CK_N
DSI_D0_P
DSI_D0_N
DSI_D1_P
DSI_D1_N
MB1246 Revision: E.2
Sheet: 2 of 17
