Jumper

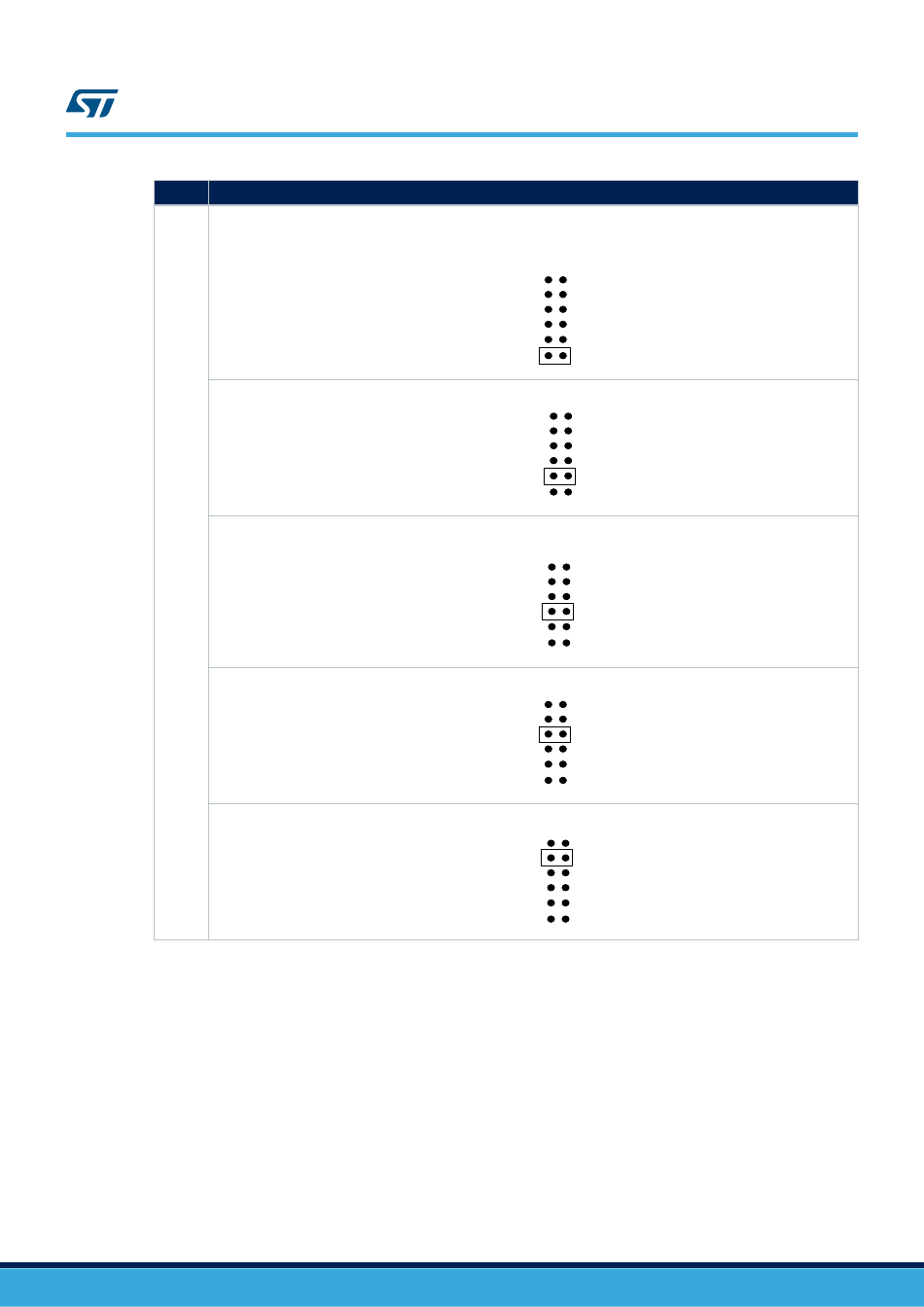

JP10 is used to select one of the six possible power supply resources.
To supply the STM32H7x7I-EVAL board through the USB connector of the STLINK-V3E (CN23) set JP10 as shown
below: (default setting)
To supply the STM32H7x7I-EVAL board through the jack (CN10), set JP10 as shown below:
To supply the STM32H7x7I-EVAL board through the daughterboard connectors (CN6 and CN7), set JP10 as
shown below:
JP10
To supply the STM32H7x7I-EVAL board through the USB OTG1_FS (CN16), set JP10 as shown below:
To supply the STM32H7x7I-EVAL board through the USB OTG2_FS (CN18), set JP10 as shown below:
UM2525 - Rev 3
Description
HS
FS1
FS2
D5V
PSU
STlk
HS
FS1
FS2
D5V
PSU
STlk
HS
FS1
FS2
D5V
PSU
STlk
HS
FS1
FS2
D5V
PSU
STlk
HS
FS1
FS2
D5V
PSU
STlk
UM2525
Power supply
page 12/69
