Before you begin
April 2019

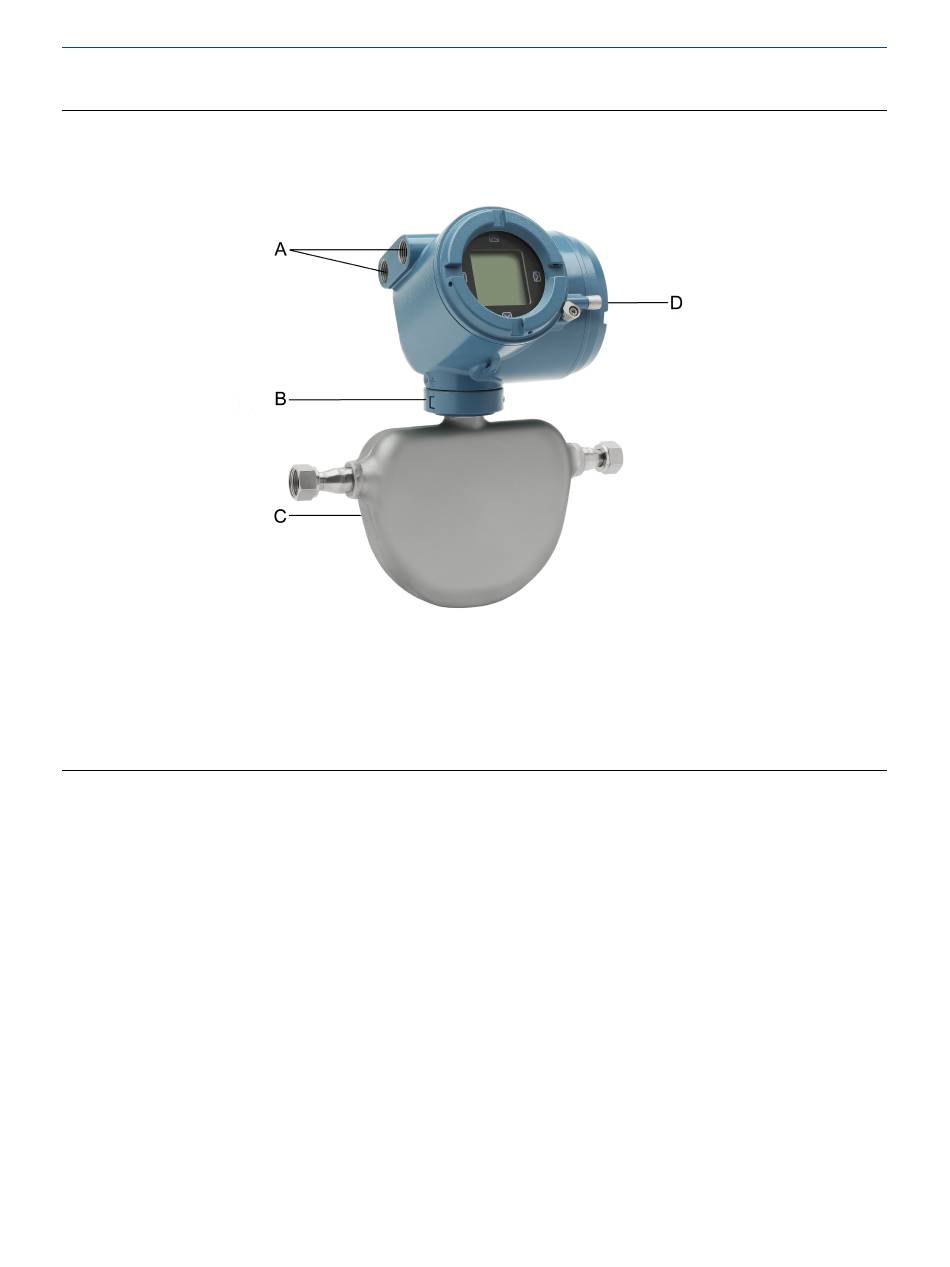

Figure 1-2: 4200 transmitter -- Integral mount
A. Conduit openings
B. Clamping ring
C. Sensor case
D. Transmitter housing cover (hidden from view)
The transmitter is installed directly on the sensor.
The connections between the transmitter and sensor are 9-wire, and do not require field wiring on the
integral mount version.
The I/O connections consist of 2 channels, each channel being 2-wire. Power must be supplied to Channel A
for the transmitter to operate, while Channel B connections are optional.
