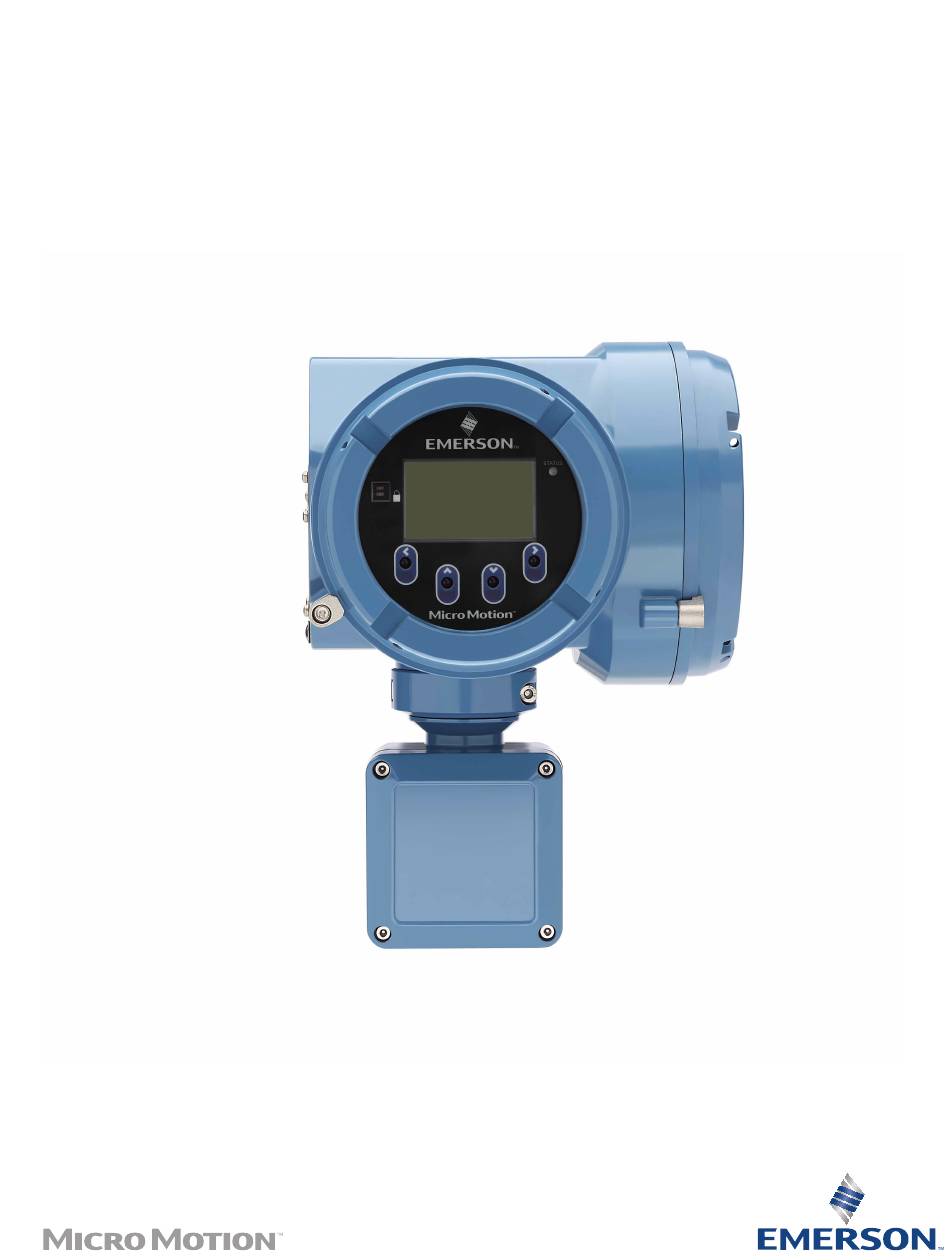

- Page 1 Installation Manual MMI-20029969, Rev AC October 2022 ™ Micro Motion 5700 Transmitters ™ Installation Manual for F Fieldbus OUNDATION...
- Page 2 Micro Motion employees. If you fail to follow Micro Motion procedures, then Micro Motion will not accept your returned equipment. Return procedures and forms are available on our web support site at Emerson.com, or by calling the Micro Motion Customer Service department.
-
Page 3: Table Of Contents
Installation Manual Contents MMI-20029969 October 2022 Contents Chapter 1 Before you begin......................5 1.1 About this document........................5 1.2 Hazard messages......................... 5 1.3 Related documentation....................... 5 Chapter 2 Planning........................7 2.1 Installation checklist........................7 2.2 Additional considerations for retrofitting existing installations............ 8 2.3 Power requirements........................ - Page 4 Contents Installation Manual October 2022 MMI-20029969 Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
-
Page 5: Before You Begin
Related documentation You can find all product documentation on the product documentation DVD shipped with the product or at Emerson.com. See any of the following documents for more information: • Micro Motion 5700 Product Data Sheet... - Page 6 Before you begin Installation Manual October 2022 MMI-20029969 ™ • Micro Motion 5700 Transmitters for F Fieldbus: Configuration and Use Manual OUNDATION • PROFIBUS-PA User and Installation Guideline • Sensor installation manual Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
-
Page 7: Chapter 2 Planning
For ATEX/IECEx installations, strictly adhere to the safety instructions documented in the ATEX/IECEx approvals documentation available on the product documentation DVD shipped with the product or at Emerson.com. □ Verify that you have the appropriate cable and required cable installation parts for your installation. -
Page 8: Additional Considerations For Retrofitting Existing Installations
Planning Installation Manual October 2022 MMI-20029969 Only qualified personnel can select and install these elements in accordance with EN/IEC 60079-14 for ATEX/IECEx or to NEC/CEC for North America. □ To maintain the Ingress protection thread sealant, a sealing washer, or O-ring must be applied: —... -
Page 9: Power Requirements
Installation Manual Planning MMI-20029969 October 2022 Variable Setting Density calibration factors — — — — — — Function block settings Channel assignment L_Type XD_scale (engineering units assignment) Power requirements Self-switching AC/DC input, automatically recognizes supply voltage: • 85 to 240 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum •... - Page 10 Planning Installation Manual October 2022 MMI-20029969 Wire gauge Resistance 2.5 mm 0.0136 Ω/m 1.5 mm 0.0228 Ω/m 1.0 mm 0.0340 Ω/m 0.75 mm 0.0460 Ω/m 0.50 mm 0.0680 Ω/m 2.3.1 Maximum cable lengths between sensor and transmitter The maximum cable length between the sensor and transmitter, which are installed separately, is determined by cable type.
-
Page 11: Mounting And Sensor Wiring
Prerequisites • Emerson recommends 5/16-18 (8 mm–1.25) fasteners that can withstand the process environment. Emerson does not supply bolts or nuts as part of the standard offering (general purpose bolts and nuts are available as an option). • Ensure that the surface is flat and rigid and that it does not vibrate or move excessively. - Page 12 Mounting and sensor wiring Installation Manual October 2022 MMI-20029969 Figure 3-2: Mounting bracket to a stainless steel transmitter 2. For wall-mount installations, secure the mounting bracket to the prepared surface. Figure 3-3: Wall-mounting bracket and dimensions for an aluminum transmitter A.
- Page 13 Installation Manual Mounting and sensor wiring MMI-20029969 October 2022 Figure 3-4: Wall-mounting bracket and dimensions for a stainless steel transmitter A. 7.51 in (190.8 mm) B. 3.67 in (93.2 mm) 3. For aluminum transmitters, place and attach the transmitter-mounting bracket to the mounting bracket secured to the wall or instrument pole.
- Page 14 Mounting and sensor wiring Installation Manual October 2022 MMI-20029969 3.2.2 Mount the transmitter to a pole Prerequisites • Ensure that the instrument pole extends at least 12 in (305 mm) from a rigid base and is no more than 2 in (51 mm) in diameter. •...
-
Page 15: Wire A Remote-Mount Transmitter To The Sensor
Preparation and Installation Guide. • Connect the cable to the sensor-mounted core processor or junction box as described in the sensor documentation. You can access all product documentation on the documentation DVD shipped with the product or at Emerson.com. Installation Manual... - Page 16 Mounting and sensor wiring Installation Manual October 2022 MMI-20029969 Procedure 1. Remove the transmitter-to-sensor wiring compartment cover to reveal the terminal connections. Figure 3-8: Removal of the transmitter-to-sensor wiring compartment cover 2. Feed the sensor wiring cable into the transmitter wiring compartment. Figure 3-9: Sensor wiring feedthrough 3.
- Page 17 Installation Manual Mounting and sensor wiring MMI-20029969 October 2022 Figure 3-10: Four-wire transmitter-to-sensor wiring connections Figure 3-11: Nine-wire transmitter-to-sensor wiring connections Note Connect the four drain wires in the nine-wire cable to the ground screw located inside the junction box. 4.
-
Page 18: Ground The Meter Components
Mounting and sensor wiring Installation Manual October 2022 MMI-20029969 Ground the meter components In 4-wire or 9-wire remote installations, the transmitter and sensor are grounded separately. Prerequisites NOTICE Improper grounding could cause inaccurate measurements or meter failure. WARNING Improper grounding could result in an explosion causing death or serious injury. Note For hazardous area installations in Europe, refer to standard EN 60079-14 or national standards. -
Page 19: Rotate The Transmitter On The Sensor (Optional)
Installation Manual Mounting and sensor wiring MMI-20029969 October 2022 Rotate the transmitter on the sensor (optional) In integral installations, you can rotate the transmitter on the sensor up to 360° in 45° increments. Procedure 1. Using a 4 mm hex key, loosen and remove the clamp securing the transmitter head in place. - Page 20 Mounting and sensor wiring Installation Manual October 2022 MMI-20029969 4. Replace the clamp in its original position and tighten the cap screw. Torque to 28 in lbf (3.16 N m) to 30 in lbf (3.39 N m). Figure 3-14: Re-attachment of the sensor clamp Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
-
Page 21: Rotate The User Interface On The Transmitter (Optional)
Installation Manual Mounting and sensor wiring MMI-20029969 October 2022 Rotate the user interface on the transmitter (optional) The user interface on the transmitter electronics module can be rotated 90°, 180°, or 270° from the original position. Figure 3-15: Display components A. -
Page 22: Rotate The Sensor Wiring Junction Box On A Remote-Mount Transmitter (Optional)
Mounting and sensor wiring Installation Manual October 2022 MMI-20029969 7. Gently press the display module back onto the connector. 8. Tighten display screws. 9. Place the display cover onto the main enclosure. 10. Turn the display cover clockwise until it is fully seated. 11. - Page 23 Installation Manual Mounting and sensor wiring MMI-20029969 October 2022 Figure 3-17: Rotate the transmitter on the junction box 3. Gently set the junction box into its new position, confirming that the position is locked. 4. Replace the clamp in its original position and tighten the cap screw. Torque to 28 in lbf (3.16 N m) to 30 in lbf (3.39 N m).
- Page 24 Mounting and sensor wiring Installation Manual October 2022 MMI-20029969 Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
-
Page 25: Wiring The Channels
Installation Manual Wiring the channels MMI-20029969 October 2022 Wiring the channels Available channels Fieldbus channels (output board code E with Channel A assignment F for OUNDATION intrinsically safe H1 outputs) Signal Channel A Channel B Channel C Wiring terminal Channel IS mA output IS Frequency OUNDATION... -
Page 26: I/O Wiring
Wiring the channels Installation Manual October 2022 MMI-20029969 2. Confirm which transmitter channels are activated, or ON, and identify the type of configuration you will be wiring to based on the options available. Figure 4-1: Activated channel identification 3. Record the channel and wiring configuration on the label provided inside the transmitter housing cover. -
Page 27: Fisco-Input Entity Parameters
Installation Manual Wiring the channels MMI-20029969 October 2022 Figure 4-3: 5700 F fieldbus wiring OUNDATION A. Bus power supply B. F fieldbus network per F fieldbus wiring specification OUNDATION OUNDATION C. Spur to network wiring specification D. Terminals 1 and 2 Note The communication terminals (1 and 2) are not polarity-sensitive. -
Page 28: Wiring For Nonhazardous Installations
Wiring the channels Installation Manual October 2022 MMI-20029969 Wiring for nonhazardous installations Follow these procedures for explosion-proof, nonincendive, or nonhazardous installations. 4.5.1 Wire the mA output for nonhazardous installations Prerequisites WARNING Meter installation and wiring should be performed only by suitably-trained personnel using the appropriate government and corporate safety standards. - Page 29 Installation Manual Wiring the channels MMI-20029969 October 2022 mA Output loop resistance Figure 4-5: mA Output: loop resistance A. Loop resistor (ohms) B. Supply voltage VDC (V) C. Rmax = maximum value of loop resistor allowed D. Rmin = minimum value of loop resistance required Loop resistance equation Rmax = (Vsupply −...
- Page 30 Wiring the channels Installation Manual October 2022 MMI-20029969 Figure 4-6: FO and DO wiring when connected to a measurement system A. Frequency Output or Discrete Output B. Channel C C. 8-30 VDC (maximum) D. Load resistor (500 Ω resistance recommended for 24V supply). Use the following equations for other load resistance values: •...
-
Page 31: Wiring For Hazardous Installations
Installation Manual Wiring the channels MMI-20029969 October 2022 Frequency Output high and low voltages for nonhazardous installations Figure 4-8: 24VDC supply A. Output voltage (V) B. Load resistance RL (Ω) C. Low voltage D. High voltage E. Voltage (volts) F. Time High and low voltage equations High voltage ≈... - Page 32 Wiring the channels Installation Manual October 2022 MMI-20029969 Parameter 4-20mA Output Frequency Output and Discrete Output Internal 0.27 nF 11.27 nF capacitance (Ci) Internal 5µH 5µH inductance (Li) Hazardous area voltage The open circuit voltage for the selected barrier must be less than 30 VDC (Vmax = 30 VDC).
- Page 33 Installation Manual Wiring the channels MMI-20029969 October 2022 Figure 4-9: mA Output wiring in a hazardous area A. mA Output B. Channel B C. 10–30 VDC (maximum) D. Loop resistor E. Measurement device F. Safety barrier G. Rbarrier Add the Rbarrier and loop resistor D together to determine the proper Supply Voltage VDC(Volts).
- Page 34 Wiring the channels Installation Manual October 2022 MMI-20029969 4.6.3 Wire the Frequency Output or Discrete Output for hazardous installations Prerequisites WARNING Meter installation and wiring should be performed only by suitably-trained personnel using the appropriate government and corporate safety standards. Procedure Wire to the appropriate output terminal and pins.
- Page 35 Installation Manual Wiring the channels MMI-20029969 October 2022 Frequency Output high and low voltages for hazardous installations Figure 4-12: 24VDC supply with a 300-ohm barrier A. Output voltage (V) B. Load resistance RL (Ω) C. Low voltage D. High voltage E.
- Page 36 Wiring the channels Installation Manual October 2022 MMI-20029969 Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
-
Page 37: Wiring The Power Supply
Installation Manual Wiring the power supply MMI-20029969 October 2022 Wiring the power supply You can install a user-supplied switch in the power supply line. Important For compliance with the Low Voltage Directive 2014/35/EU (European installations), verify that the transmitter is located in close proximity to a switch. Procedure 1. - Page 38 Wiring the power supply Installation Manual October 2022 MMI-20029969 Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
-
Page 39: Power Up The Transmitter
Installation Manual Power up the transmitter MMI-20029969 October 2022 Power up the transmitter The transmitter must be powered up for all configuration and commissioning tasks or for process measurement. Procedure WARNING If the transmitter is in a hazardous area, do not remove the housing cover while the transmitter is powered up. - Page 40 Power up the transmitter Installation Manual October 2022 MMI-20029969 Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
-
Page 41: Chapter 7 Guided Setup
Installation Manual Guided setup MMI-20029969 October 2022 Guided setup At initial startup of the transmitter, the guided configuration screen appears on the transmitter display. This tool guides you through basic configuration of the transmitter. The guided setup allows you to upload configuration files, set the transmitter display options, configure channels, and review sensor calibration data. - Page 42 Guided setup Installation Manual October 2022 MMI-20029969 Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
-
Page 43: Using The Display Controls
Installation Manual Using the display controls MMI-20029969 October 2022 Using the display controls The transmitter display interface includes a display (LCD panel) and four optical switches – left, up, down, and right arrow keys – used to access the display menus and navigate the display screens. - Page 44 Using the display controls Installation Manual October 2022 MMI-20029969 Figure 8-2: Example 1: Active arrow indicators on the transmitter display Figure 8-3: Example 2: Active arrow indicators on the transmitter display Micro Motion 5700 transmitters for F Fieldbus OUNDATION...
-
Page 45: Available Service Port Connection
Installation Manual Available service port connection MMI-20029969 October 2022 Available service port connection Use the service port connection to download or upload data from/to the transmitter. To access the service port, use: • Any commonly-available USB drive Note The USB drive must be in FAT format. The transmitter does not recognize NTFS format. •... - Page 46 © 2022 Micro Motion, Inc. All rights reserved. The Emerson logo is a trademark and service mark of Emerson Electric Co. Micro Motion, ELITE, ProLink, MVD and MVD Direct Connect marks are marks of one of the Emerson Automation Solutions family of companies.
