7.3.6. Starting CX-Protocol and Opening the Project File

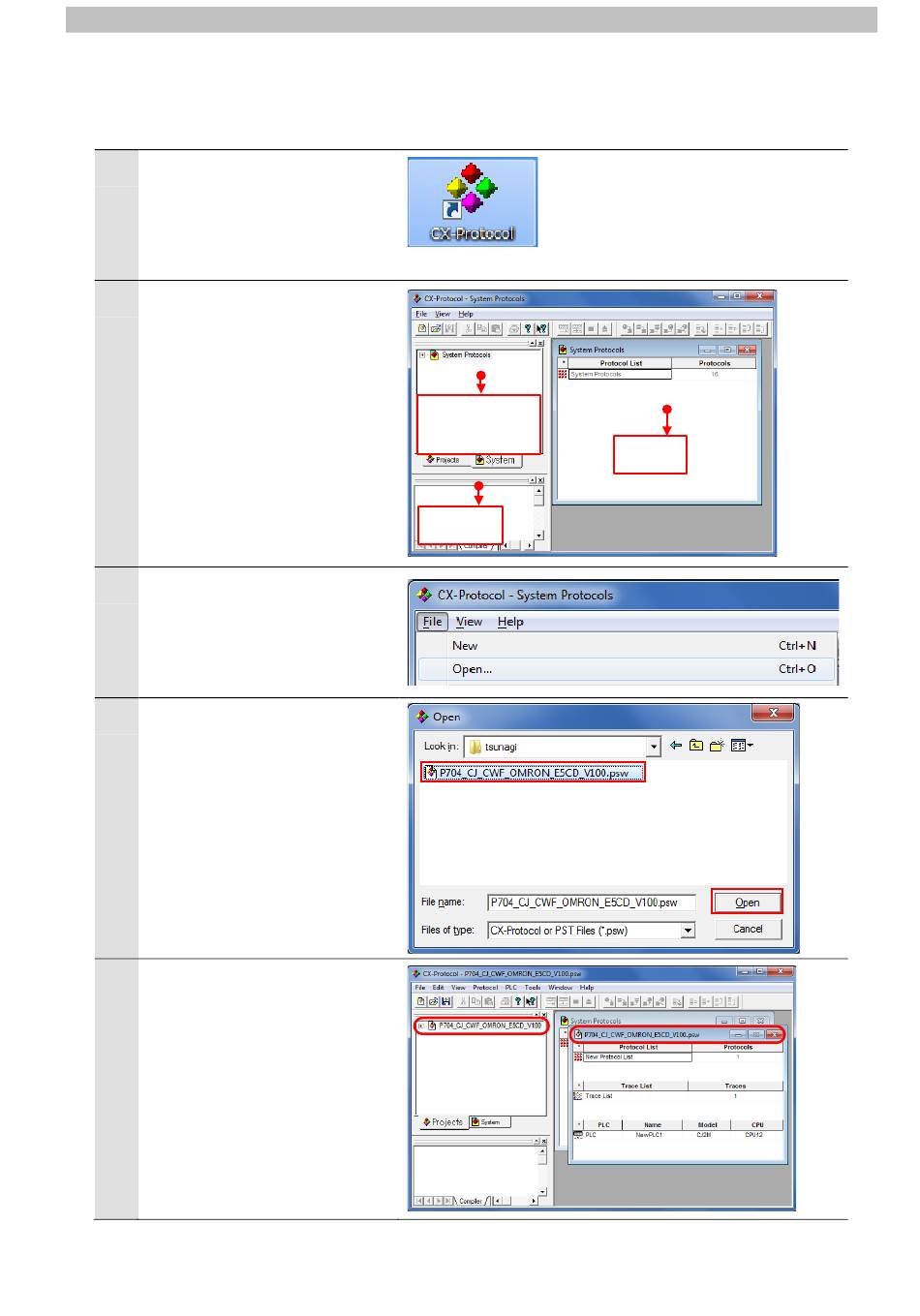

Start CX-Protocol and open the project file.
1
Start CX-Protocol.
*If the User Account Control
Dialog Box is displayed at start,
make a selection to start
CX-Protocol.
2
Start CX-Protocol.
The following panes are
displayed in this window.
Top left: Project Workspace
Bottom left: Output Window
Right: Project Window
3
Select Open from the File Menu.
4
The Open Dialog Box is
displayed.
Select P704_CJ_CWF_
OMRON_E5CD_V100.psw and
click Open.
*Obtain the project file from
OMRON.
5
The project data read are
displayed in both the Project
Workspace and the Project
Window.
7．Serial Communications Connection Procedure
Project
Workspace
Output
Window
Project
Window
