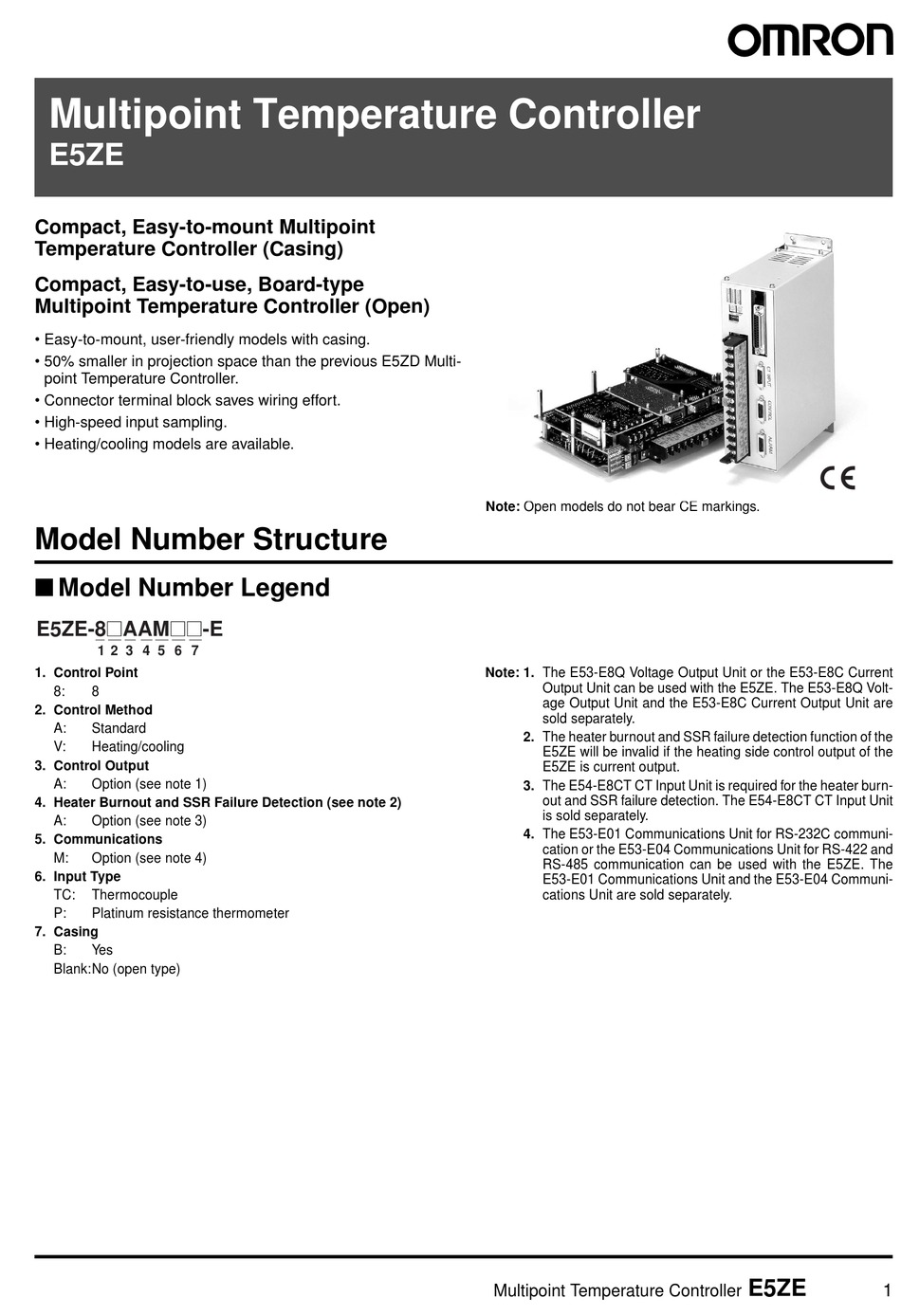

Multipoint Temperature Controller
E5ZE
Compact, Easy-to-mount Multipoint
Temperature Controller (Casing)
Compact, Easy-to-use, Board-type
Multipoint Temperature Controller (Open)
• Easy-to-mount, user-friendly models with casing.
• 50% smaller in projection space than the previous E5ZD Multi-
point Temperature Controller.
• Connector terminal block saves wiring effort.
• High-speed input sampling.
• Heating/cooling models are available.
Model Number Structure
Model Number Legend
E5ZE-8@AAM@@-E
1 2 3 4 5 6 7
1. Control Point
8:
8
2. Control Method
A:
Standard
V:
Heating/cooling
3. Control Output
A:
Option (see note 1)
4. Heater Burnout and SSR Failure Detection (see note 2)
A:
Option (see note 3)
5. Communications
M:
Option (see note 4)
6. Input Type
TC:
Thermocouple
P:
Platinum resistance thermometer
7. Casing
B:
Yes
Blank:No (open type)
Note: Open models do not bear CE markings.
Note: 1. The E53-E8Q Voltage Output Unit or the E53-E8C Current
Output Unit can be used with the E5ZE. The E53-E8Q Volt-
age Output Unit and the E53-E8C Current Output Unit are
sold separately.
2. The heater burnout and SSR failure detection function of the
E5ZE will be invalid if the heating side control output of the
E5ZE is current output.
3. The E54-E8CT CT Input Unit is required for the heater burn-
out and SSR failure detection. The E54-E8CT CT Input Unit
is sold separately.
4. The E53-E01 Communications Unit for RS-232C communi-
cation or the E53-E04 Communications Unit for RS-422 and
RS-485 communication can be used with the E5ZE. The
E53-E01 Communications Unit and the E53-E04 Communi-
cations Unit are sold separately.
Multipoint Temperature Controller
E5ZE
1

Advertisement

Table of Contents
loading

Summary of Contents for Omron E5ZE

  • Page 1 Standard 2. The heater burnout and SSR failure detection function of the Heating/cooling E5ZE will be invalid if the heating side control output of the 3. Control Output E5ZE is current output. Option (see note 1) 3. The E54-E8CT CT Input Unit is required for the heater burn- out and SSR failure detection.
  • Page 2: Ordering Information

    Accessories (Order Separately) Current Transformers (CT) Hole diameter 5.8 mm 12.0 mm Model E54-CT1 E54-CT3 Note: The above CTs are not provided with the E5ZE. Recommended Power Supply S82J Switching Power Supply Input voltage Power ratings Output voltage Output current Model...
  • Page 3 E5ZD-SDL3-X E5ZD-SDLM Note: 1. The Setting Display Unit is originally for use with the E5ZD. Be careful when using the Setting Display Unit with the E5ZE as some of the E5ZE’s functions cannot be used with the Setting Display Unit.
  • Page 4: Specifications

    OFF leakage current: 1 mA DC max. Alarm outputs Temperature alarm: The total output of all control points (alarm 1 NPN open collector output and alarm 2 NPN open collector output) HB alarm (heater burnout detection): Total output of all control points (1-point NPN open collector...
  • Page 5: Platinum Resistance Thermometer

    Min. setting unit 1 C or 0.1 C Note: 1. The setting selector set to 0 (K) or 0 (Pt 100) before shipping. 2. A temperature range is factory-set to a range of –200 to 1,300 C (K(CA)) or 100.0 to 500.0 C (Pt 100).
  • Page 6 Conforms to EN50081-2, EN50082-2 (see note 3) Note: 1. The measurement accuracy of the E5ZE used with a thermocouple B at 400 C or 750 F max. is not guaranteed. The following measurement accuracy values are applied to the E5ZE.
  • Page 7: Communications Specifications

    RS-422: 500 m, RS-232C: 15 m, RS-485: 500 m • Recommended connectors: RS-232C: XM2@ D-sub connector (25 pin) (OMRON) 2. A maximum of 16 Temperature Controllers can be connected to one host computer using serial communications (RS-422 or RS-485). Communications • Set point •...
  • Page 8 Operating voltage range 85% to 110% of rated supply voltage Power consumption Approx. 12 W (at 100 VAC) to 18 W (at 240 VAC), approx. 13 W (at 24 VDC) Setting method Digital setting via Up and Down Keys Display method...
  • Page 9 Dimensions Note: All units are in millimeters unless otherwise indicated. E5ZE-8@AAM@B-E The mounting brackets can be fixed to the posi- Mounting Holes tion marked with *. Mounting bracket Mounting Mounting fixed screw bracket 220 0.4 Mounting bracket 40 0.2 E5ZE-8@AAM@-E...
  • Page 10: System Configuration

    G7VC-OC16 G7VC-OA16 G7VC-OD16 Connections Use E5ZE-CBL@@@ Connecting Cables to connect the following devices to the E5ZE. • XW2B-20G4 and XW2B-20G5 Connector Terminal Conversion Units • G7TC-OC08, G7TC-OC16, G7VC-OC16, G7VC-OD16, and G7VC-OA16 I/O Blocks !Caution Do not connect any device other than those listed above to the E5ZE using E5ZE-CBL@@@ Connecting Cables, or the E5ZE may malfunction or accidents may result.
  • Page 11 Do not short-circuit terminals 7, 8, 20, and 21. Be sure to use the cold junction compensator (no. 13 and 15) pro- The number of each of the above platinum resistance thermometer is vided with the E5ZE. The lot and serial numbers of the cold junction a point number.
  • Page 12 Alarm Output and Cooling Side Control Output (For Heating and Cooling Control Model Only) Cooling side control output (Do not use these terminals when using an E5ZE Standard Model.) Point number Not used Not used Not used XW2B-20G4 or XW2B-20G5...
  • Page 13 G7TC-OC16 Alarm Output and Cooling Side Control Output (For Heating and Cooling Control Models Only) G7TC-OC16 I/O Block Not used Drive power supply for G7TC Point (12 or 24 VDC) number Cooling side control output (Do not use these terminals when using an E5ZE Standard Model.
  • Page 14 Field ground Signal ground Send data Output Receive data Input Request send Output Send enable Input Data set ready Input Data terminal ready Output Connection Only a single E5ZD-SDL can be connected via RS-232C. RS-232C Pin Connection E5ZE Multipoint Temperature Controller...
  • Page 15 Conforming to EIA RS-485 Connecting Signals Signal name Symbol Signal direction Terminal block pin number Terminal A – Input/Output 21, 23 Terminal B Input/Output 20, 24 Signal ground Terminal Block The size of each screw is M3. E5ZE Multipoint Temperature Controller...
  • Page 16 Inside the control panel Note: 1. Place the power supply, filter, input sensor, I/O terminals, and communications cable inside the control panel when wiring them. 2. If the communications cable between devices extends outside the control panel, satisfy the following conditions when wiring them.
  • Page 17 Output Unit E53-E8Q for voltage E53-E8C for current output output Tighten the screws through the holes marked with a black dot ( ) to the fixing studs of the E5ZE. Mounting Position of I/O Units Connector Communication Unit Communication Unit...
  • Page 18 Mounting the Units Use appropriate Phillips screwdriver for the screws. Use of an inappropriate screwdriver may damage the screws and cause insufficient tightening. Mount the Units in an environment where anti-static electricity countermeasures have been taken. Store the removed screws carefully and use them again when required.
  • Page 19 0.43 to 0.58 N·m, or 4.4 to with the E5ZE. 5.9 kgf·cm. If the stud screws are loose, tighten each of them to a torque of 0.43 to 0.58 N·m, or 4.4 to 5.9 kgf·cm. Control panel...
  • Page 20 Warranty and Limitations of Liability WARRANTY OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS.
