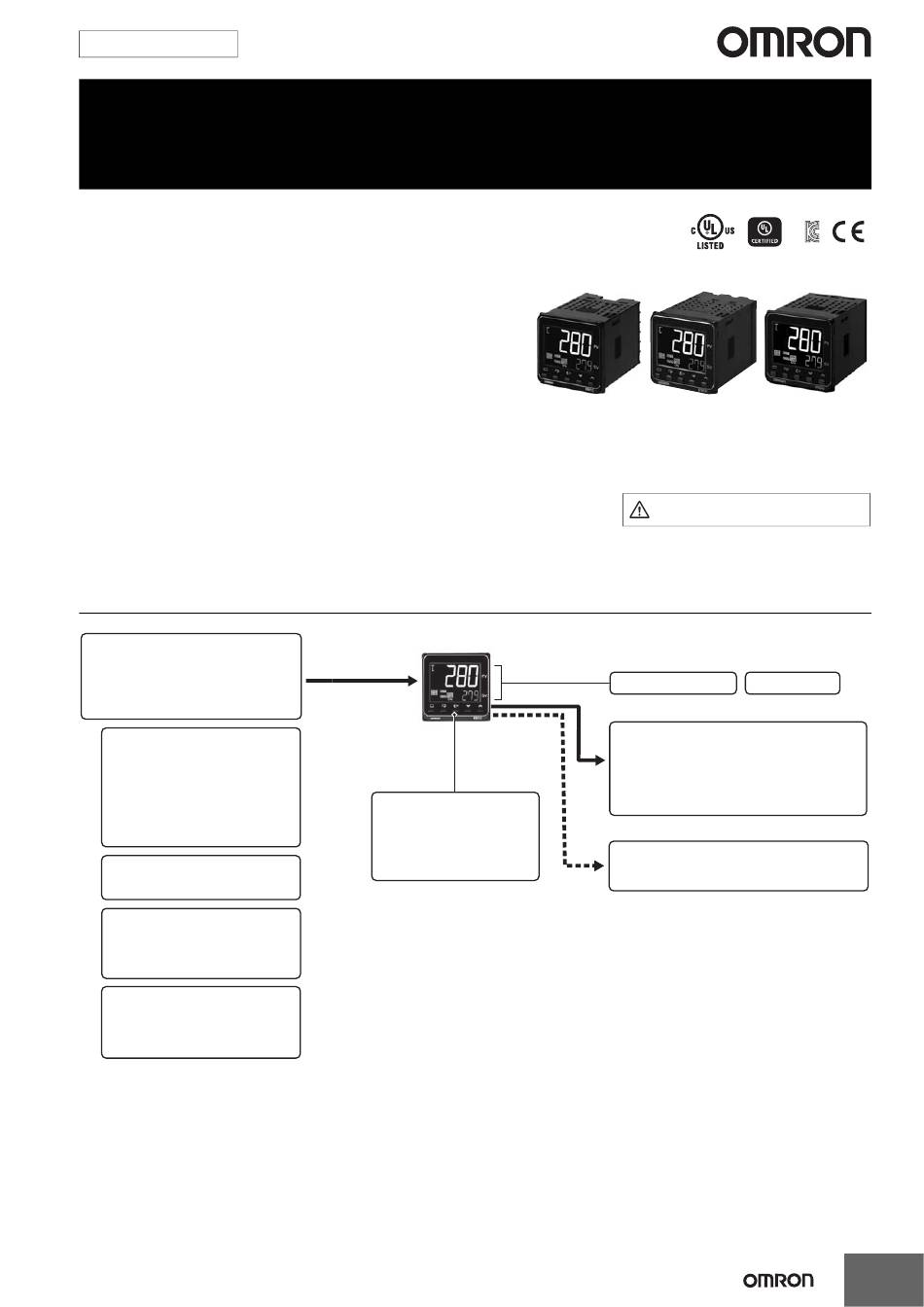

Digital Temperature Controller (Simple Type)
E5CC-800/E5CC-B-800/E5CC-U-800
Large White PV Display That's Easier to Read.
Easy to Use, from Model Selection to
Setup and Operation.
Models with Push-In Plus Terminal
Blocks Added to Lineup.
• The white PV display with a height of 15.2 mm improves
visibility.
• High-speed sampling at 50 ms.
• Select from models with screw terminal blocks, models with
Push-In Plus terminal blocks for reduced wiring work, and
Plug-in Models that can be removed from the terminal block.
• Short body with depth of only 60 mm. (Screw Terminal Blocks)
• Easy connections to a PLC with programless communications.
Use component communications to link Temperature
Controllers to each other.
Main I/O Functions
Sensor Input
Universal input
• Thermocouple
• Pt
• Analog current/voltage
Indication Accuracy
• Thermocouple input:
<E5CC-800/E5CC-B-800>±0.3%PV
<E5CC-U-800>±1%PV
• Pt input: ±0.2% of PV
• Analog input:
±0.2% of FS
Sampling Period
• 50 ms
Serial Communications
<E5CC-800/E5CC-B-800>
<E5CC-U-800>
• None
• None
• RS-485
Event Inputs
<E5CC-800/E5CC-B-800>
<E5CC-U-800>
• None
• None
• 2
E5CC-800/E5CC-B-800/E5CC-U-800
• PF (shift) Key
• Temperature status display
• Independent heating and
cooling PID control
• Changed parameter display
(E5CC-800/-U-800) (E5CC-B-800)
* CSA conformance evaluation by UL.
48 × 48 mm
48 × 48 mm
Screw Terminal
Push-In Plus
Blocks
Terminal Blocks
E5CC-800
E5CC-B-800
Refer to your OMRON website for the most recent information on
applicable safety standards.
Refer to Safety Precautions on page 58.
Dual displays: PV/SV
Control Output 1
• Relay output
• Voltage output
(for driving SSR)
• Linear current output
Auxiliary Outputs
• 2
(48 × 48 mm)
*
48 × 48 mm
Plug-in Models
E5CC-U-800
4-digit displays
1
