Dimensional Drawings; Figure 20: Sensor Head Dimensions With Probe Tip Cover; Table 10: Physical Specifications - Tektronix IsoVu TIVM Series User Manual

Table 10: Physical specifications
Characteristic
Net weight
Sensor tip cables
Sensor head
Controller box
TekVPI Comp box
Sensor tip cable length
Fiber cable length
TIVM1, TIVM02, TIVM05
TIVM1L, TIVM02L, TIVM05L
TekVPI cable length
Overall length and tolerances
Comp box to controller
Controller to sensor head
(TIVM1, TIVM02, TIVM05)
Controller to sensor head
(TIVM1L, TIVM02L, TIVM05L)

Dimensional drawings

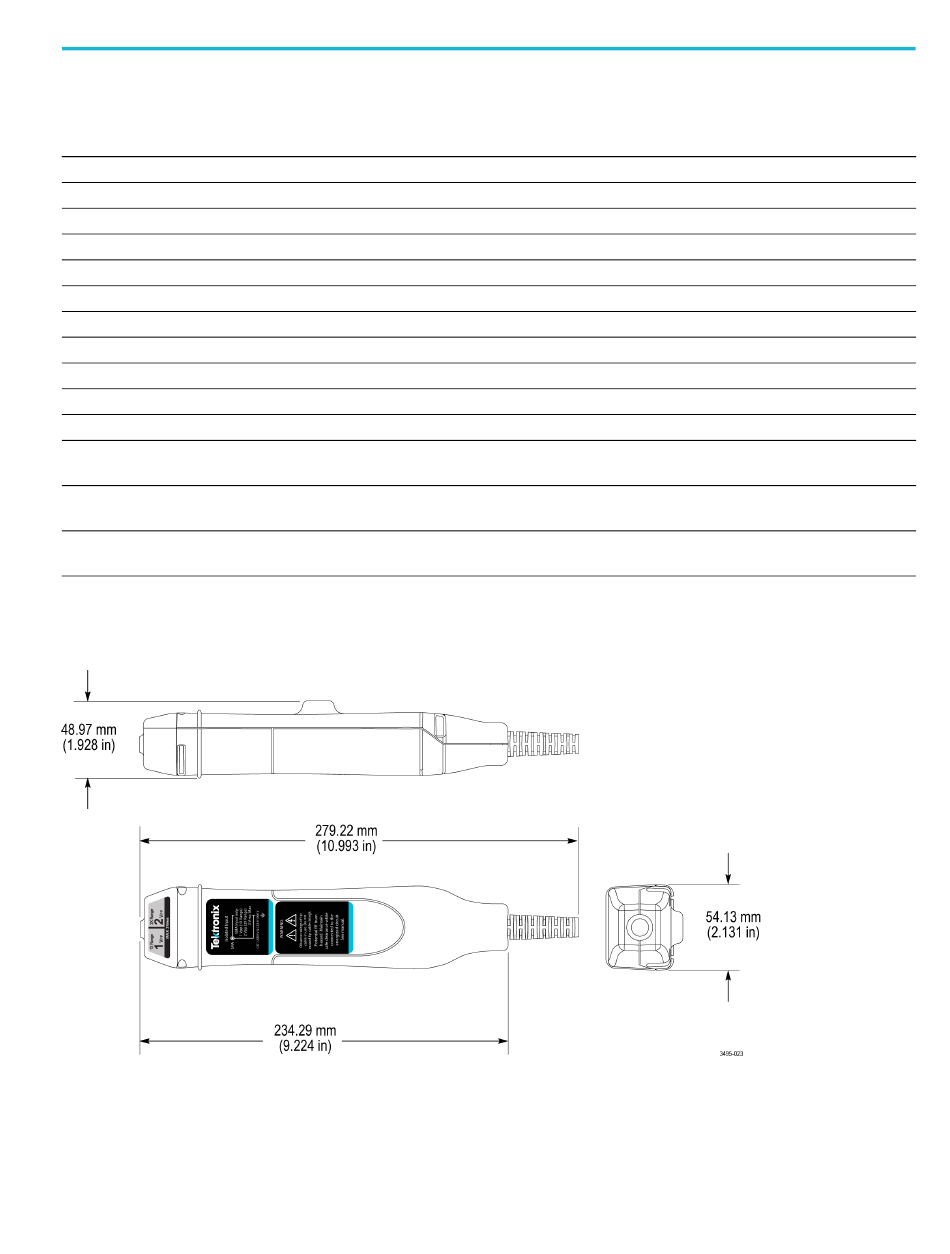

Figure 20: Sensor head dimensions with probe tip cover

TIVM Series Measurement System User Manual
Description
(Weight does not include accessories and packaging.)
0.025 kg (0.055 lb)
0.363 kg (0.8 lb)
0.816 kg (1.8 lb)
0.57 kg (0.125 lb)
15.24 cm (6.0 in)
3 m (9.84 ft)
10 m (32.81 ft)
55.88 cm (22 in)
0.5588 m ±3.81 cm (22 in ±1.5 in) shoulder-to-shoulder, Boot area included in the overall
length.
2.9718 m ±10.2 cm (117 in ±4 in)
9.982 m ±10.2 cm (393 in ±4 in)
