Operating information
16
Another source of aberrations is introduced when the signal is below the cutoff
frequency of the digital filter (5.0 Hz). The following figure shows a close-up
view of the front edge of a 0.1 Hz 800 mV
also created by the digital filter.

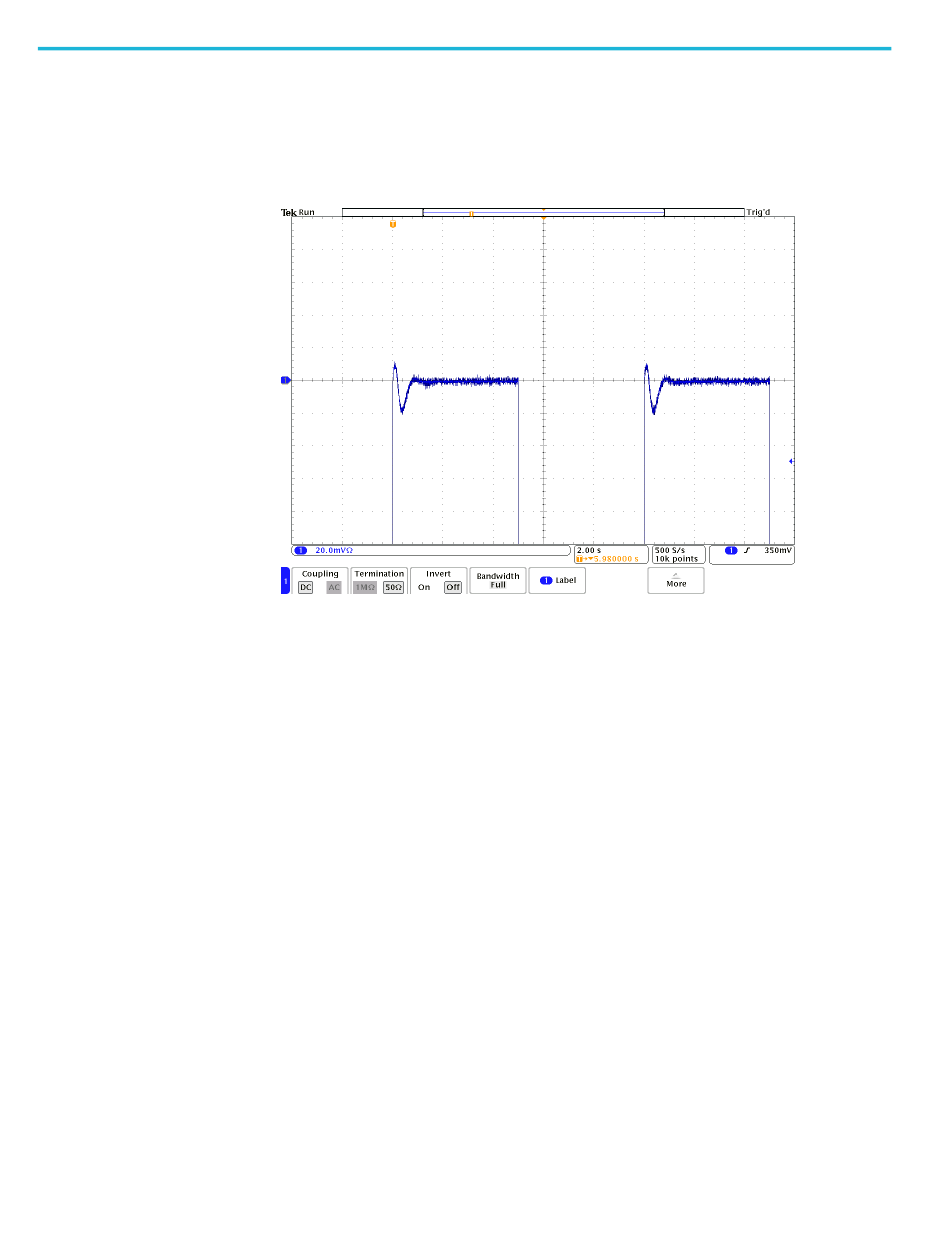

Figure 11: Digital filter aberrations (about 2.5% of V
The following figure shows the aberrations after the offset correction has been
disabled. When the offset correction is disabled, the system no longer corrects for
long-term drift due to temperature change and fiber movement.
square wave. These aberrations are
p-p
)
p-p
