Tektronix 6 Series Instructions Manual
Low profile digitizer with factory option 6-sec enhanced security instrument declassification and security
Hide thumbs
Also See for 6 Series:
- Installation and safety manual (124 pages) ,
- Declassification and security instructions (17 pages) ,
- Printable help (518 pages)
Related Manuals for Tektronix 6 Series
Summary of Contents for Tektronix 6 Series

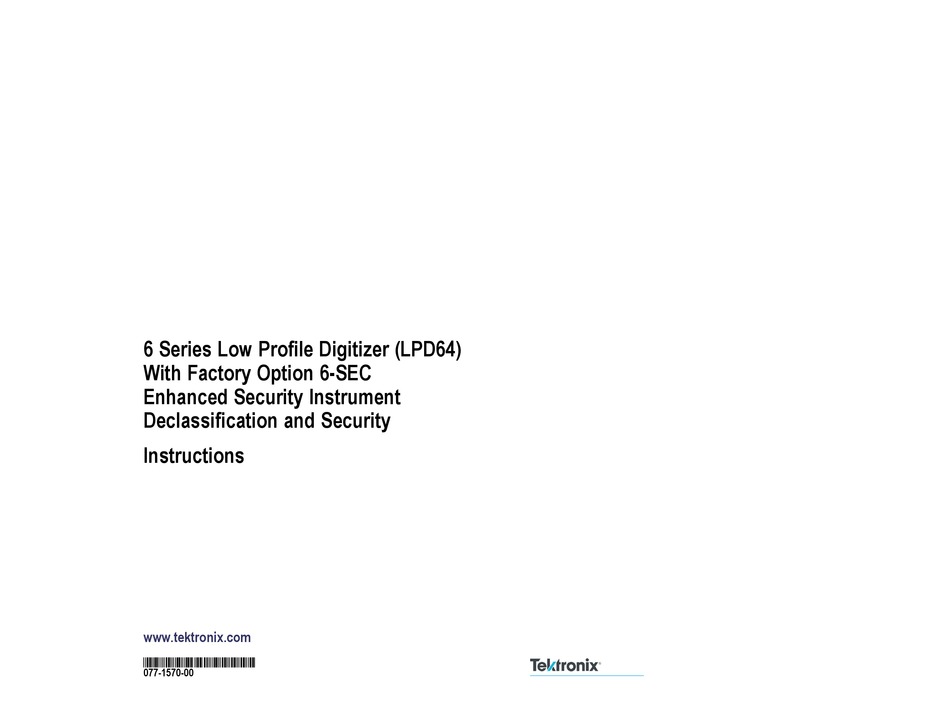

- Page 1 6 Series Low Profile Digitizer (LPD64) With Factory Option 6-SEC Enhanced Security Instrument Declassification and Security Instructions www.tektronix.com *P077157000* 077-1570-00...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Table Of Contents
Table of Contents Preface ................................Supported products ............................About option 6-SEC ............................Terms................................Memory device clear and sanitize procedures........................Nonvolatile, volatile memory device table terminology....................Nonvolatile, volatile memory devices: information and clearing/sanitizing ................Media and data export devices ..........................Resetting the instrument CMOS ..........................Resetting the instrument clock .......................... - Page 4 Table of Contents LPD64 Declassification and Security Instructions...
-
Page 5: Preface
Preface This document helps customers with data security concerns to clear orsanitize aTektronix 6 Series Low Profile Digitizer (LPD64) instrument with factory installed option 6-SEC. The instrument has data storage devices (memory and a removable mass storage drive) and data export interfaces (USB and Ethernet). -
Page 6: About Option 6-Sec
Preface About option 6-SEC NOTE. Option 6-SEC must be ordered at the same time you order an instrument. Option 6-SEC provides the highest level of instrument security for the LPD64. Option features include: Instrument hardware that is configured to easily declassify the instrument: The main system memory is easily removed without disassembling the instrument Data can only be saved to or read from a USB port on the instrument, a mounted network drive, or through the programmatic interface... -
Page 7: Terms
Preface Terms The following terms may be used in this document: Clear. This eradicates data on media/memory before reusing it in a secured area. All reusable memory is cleared to deny access to previously stored information by standard means of access. Erase. - Page 8 Preface LPD64 Declassification and Security Instructions...
-
Page 9: Memory Device Clear And Sanitize Procedures
Memory device clear and sanitize procedures Nonvolatile, volatile memory device table terminology The tables in this section use the following terms: User data. Describes the type of information stored in the device. Refers to waveforms or other measurement information representing signals connected to the instrument by users. User settings. -
Page 10: Nonvolatile, Volatile Memory Devices: Information And Clearing/Sanitizing
Memory device clear and sanitize procedures Nonvolatile, volatile memory devices: information and clearing/sanitizing The following tables list the volatile and nonvolatile memory devices in the instrument Table 1: Volatile memory devices Type of user Backed-up Method of Data input User Type and size Function info stored... - Page 11 Memory device clear and sanitize procedures Table 2: Nonvolatile memory devices Type of user Method of Data input User Type and size Function info stored modification method Location accessible To clear To sanitize Linux m.2 Solid Host instrument operating Instrument Directly settable Written by Socket (m.2)
- Page 12 Memory device clear and sanitize procedures Type of user Method of Data input User Type and size Function info stored modification method Location accessible To clear To sanitize None None Factory Module Not applicable, does Not applicable, does not EEPROM Holds the SODIMM 1 Kb memory configuration...
- Page 13 Memory device clear and sanitize procedures Type of user Method of Data input User Type and size Function info stored modification method Location accessible To clear To sanitize Flash Memory None Indirect Application Internal to the Not applicable, does Not applicable, does not Stores analog board 64 KB microcontroller firmware...
-
Page 14: Media And Data Export Devices
Memory device clear and sanitize procedures Media and data export devices The following table lists the data export devices in the instrument. Table 3: Media and data export devices Method of Data input Type Function modification method Location User accessible To disable Directly User writeable... -
Page 15: Resetting The Instrument Cmos
Memory device clear and sanitize procedures Resetting the instrument CMOS Resetting the CMOS device resets clock and BIOS configuration data. Do the following steps to reset the instrument CMOS device: 1. Disconnect the instrument power cord. 2. Disconnect all probes and cables. 3. -
Page 16: Resetting The Instrument Clock
Tektronix to gain access to the instrument BIOS settings once the password is changed from the factory default value. If you need to return the instrument to Tektronix for service, you must reset the BIOS password back to the factory default value Tektronix before sending to the Tektronix Service Center. - Page 17 Memory device clear and sanitize procedures 10. Double-tap the Date and Time badge in the lower right of the screen. 11. Tap the Time Zone field and select the correct time zone for your instrument location. 12. Enable the Automatically adjust clock for Daylight Savings Time function if used in your time zone. 13.
-
Page 18: How To Sanitize A Working Instrument
How to sanitize a working instrument How to sanitize a working instrument 1. Remove any USB memory devices from the instrument, and store or destroy the USB memory devices in accordance with your organization’s guidelines. 2. Clear the Ethernet port settings: a. - Page 19 How to sanitize a working instrument 4. Clear the Network Configuration password: a. Enter the instrument’s IP address into a Web browser on a PC that has network access to the instrument. b. Click the Security for Network Config link on the left side of the screen. c.
-
Page 20: How To Sanitize A Nonfunctional Instrument
How to sanitize a nonfunctional instrument How to sanitize a nonfunctional instrument Do the following to clear or sanitize your instrument if it is not functioning and must be returned to Tektronix for repair: CAUTION. To avoid damaging other circuits in the instrument, perform the following procedure in a static-safe environment with proper electrostatic discharge controls in place (such as a grounded workbench mat and antistatic wrist strap). - Page 21 10. Package the instrument for shipping. Contact Tektronix for guidelines on correct packaging to best protect your instrument during shipping. 11. Send the instrument to a Tektronix Service Center. The instrument will then be repaired, calibrated as necessary, and returned to you.
-
Page 22: Repair Charges
How to sanitize a nonfunctional instrument In North America, contact the Tektronix Customer Care Center (1-800-833-9200) for assistance with returning the instrument to a service center. Worldwide, visit www.tektronix.com to find contacts in your area. Repair charges Replacement of damaged and missing hardware is charged according to the rate at the time of replacement.
