Reference information

Installing the square pins on the circuit board

42

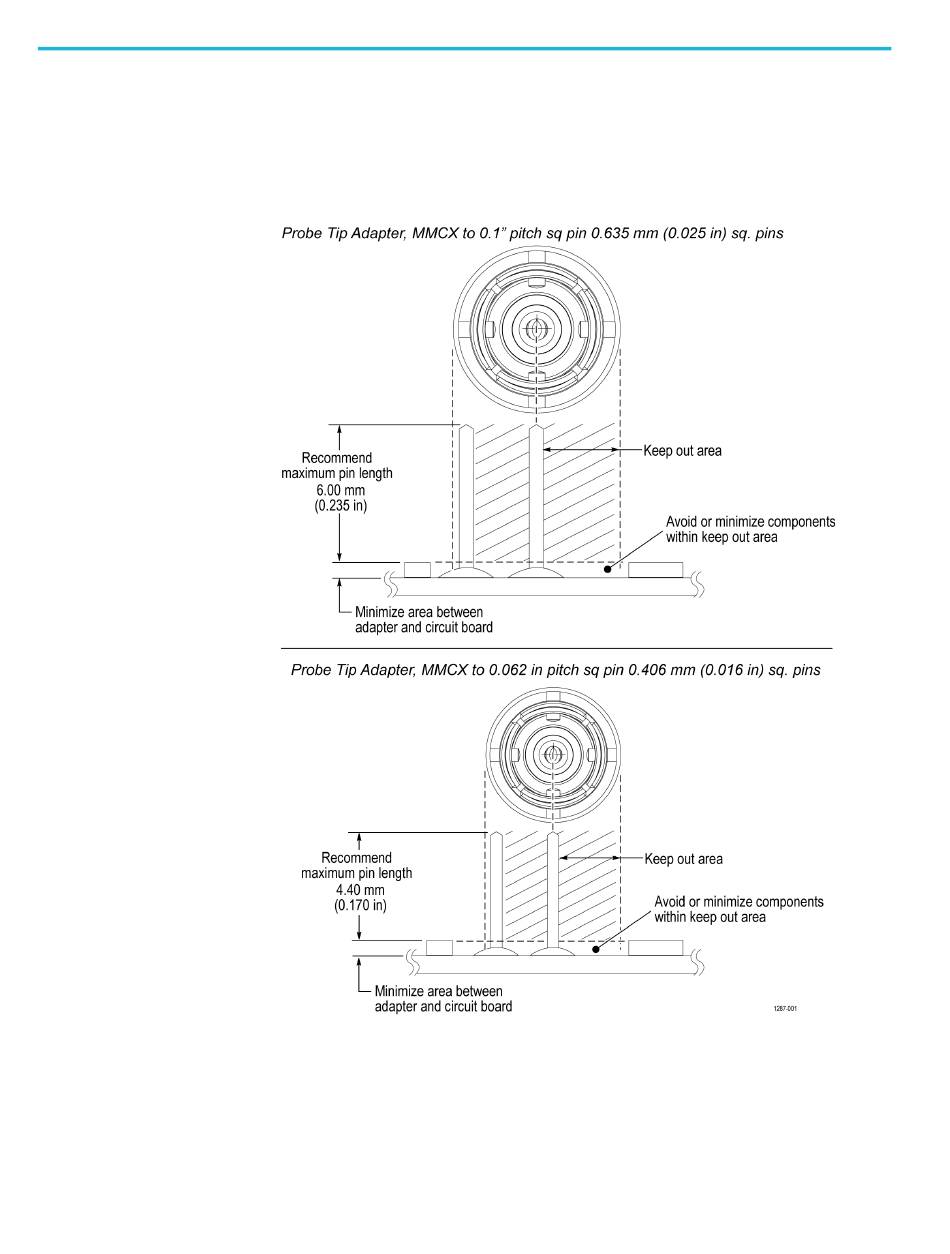

The following figure shows the recommended clearance requirements for
connecting the adapters to the square pins on the circuit board. The bottoms
of the adapters are shown at the top.

Figure 33: Adapter clearance requirements

TIVM Series Measurement System User Manual
