Reference information

Use the following steps to install the solder pins using the soldering aide on the

circuit board:

1. Carefully insert the solder pins into the soldering aide as shown in the

following illustration.

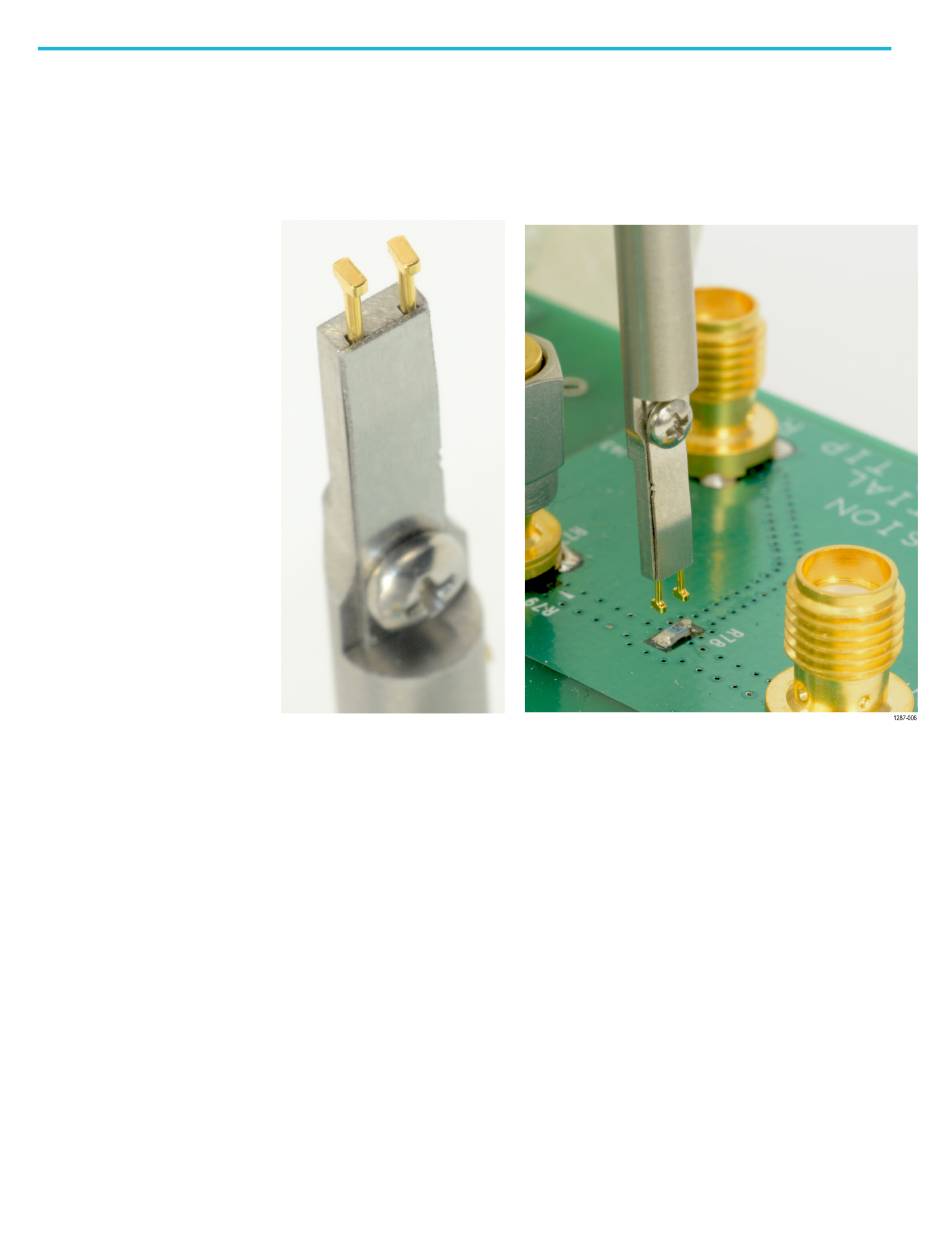

Figure 35: Using the soldering aide to install the square pins on the circuit board

2. Use the soldering aide to hold the square pins in place while soldering the

square pins to the circuit board.

3. If necessary apply a small amount of adhesive to further strengthen the

connection to the circuit board. However, keep the height of the adhesive to a

minimum to provide good electrical contact for the adapter. (See Figure 33.)

TIVM Series Measurement System User Manual
