Controls and indicators

Controller
TIVM Series Measurement System User Manual
The following figure shows the indicators and buttons on the controller; their
functions are described in the following table.

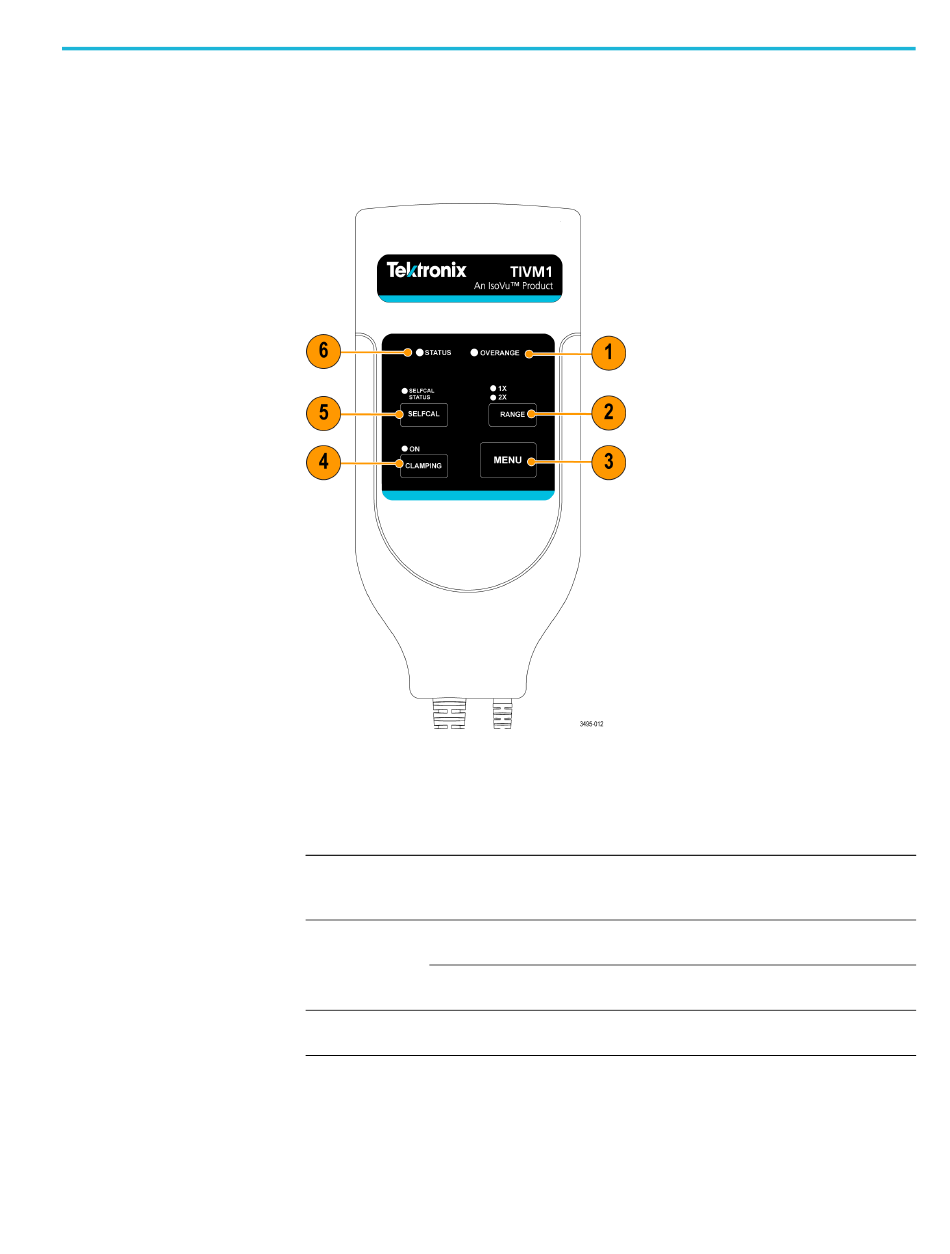

Figure 3: Controller indicators and buttons

Table 5: Controller indicators and buttons

Item Description
1 OVER RANGE Indicator. This red LED indicates if the DC/low frequency
differential voltage applied to the sensor head or attached sensor tip cable
has exceeded the maximum specified input voltage levels.
2 RANGE indicator. The two LEDs indicate the differential input range
setting.
RANGE button. Push this button to toggle between one of two differential
input voltage ranges.
3 MENU button. Push this button to view the Probe Control menu on the
oscilloscope display.
Operating information
7
