Operating information

Figure 2: RF burn hazard zone around the sensor head

6

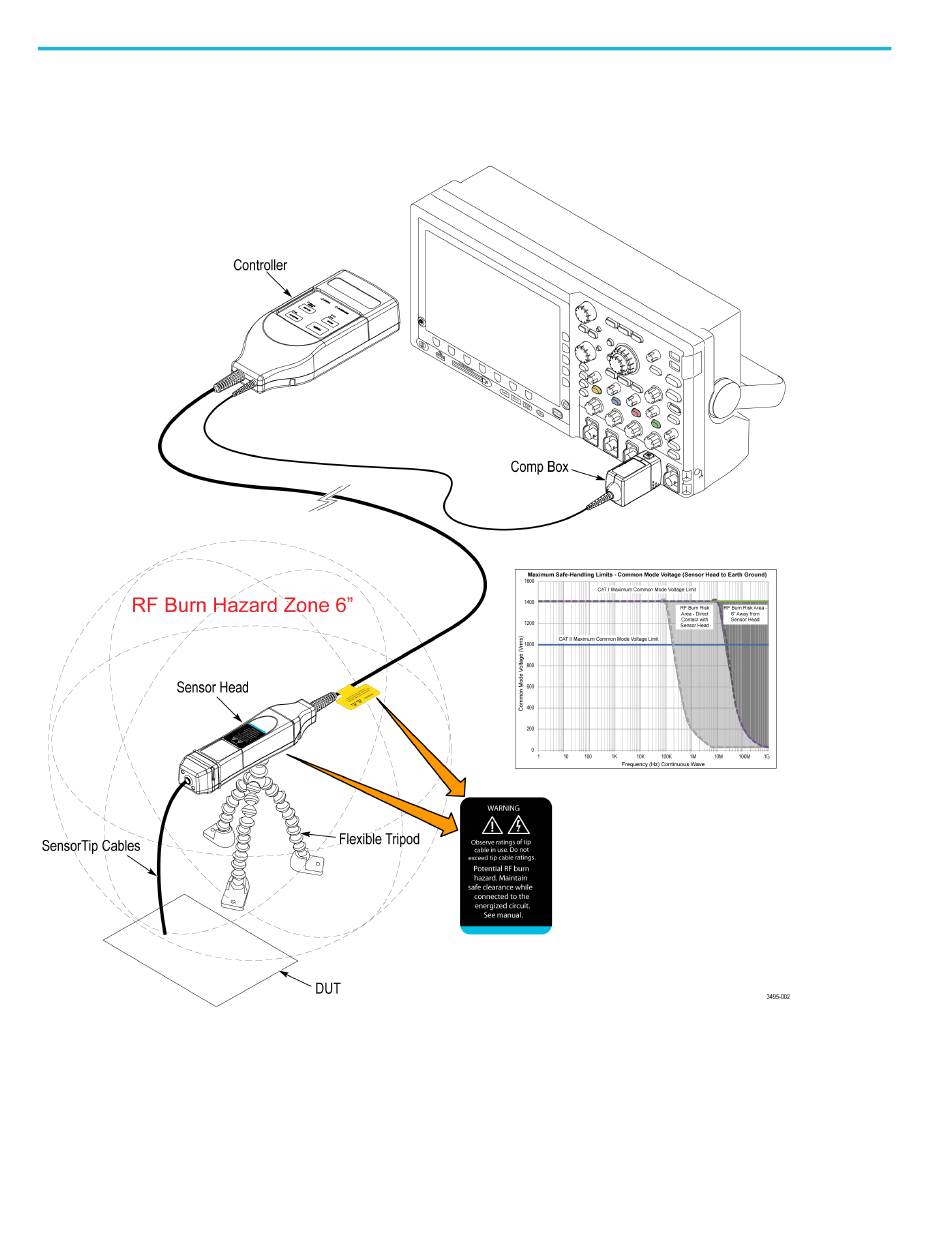

The following figure shows the components of the measurement system and the
potential RF burn area when working with hazardous voltages.
