1X/2X Range
TIVM Series Measurement System User Manual

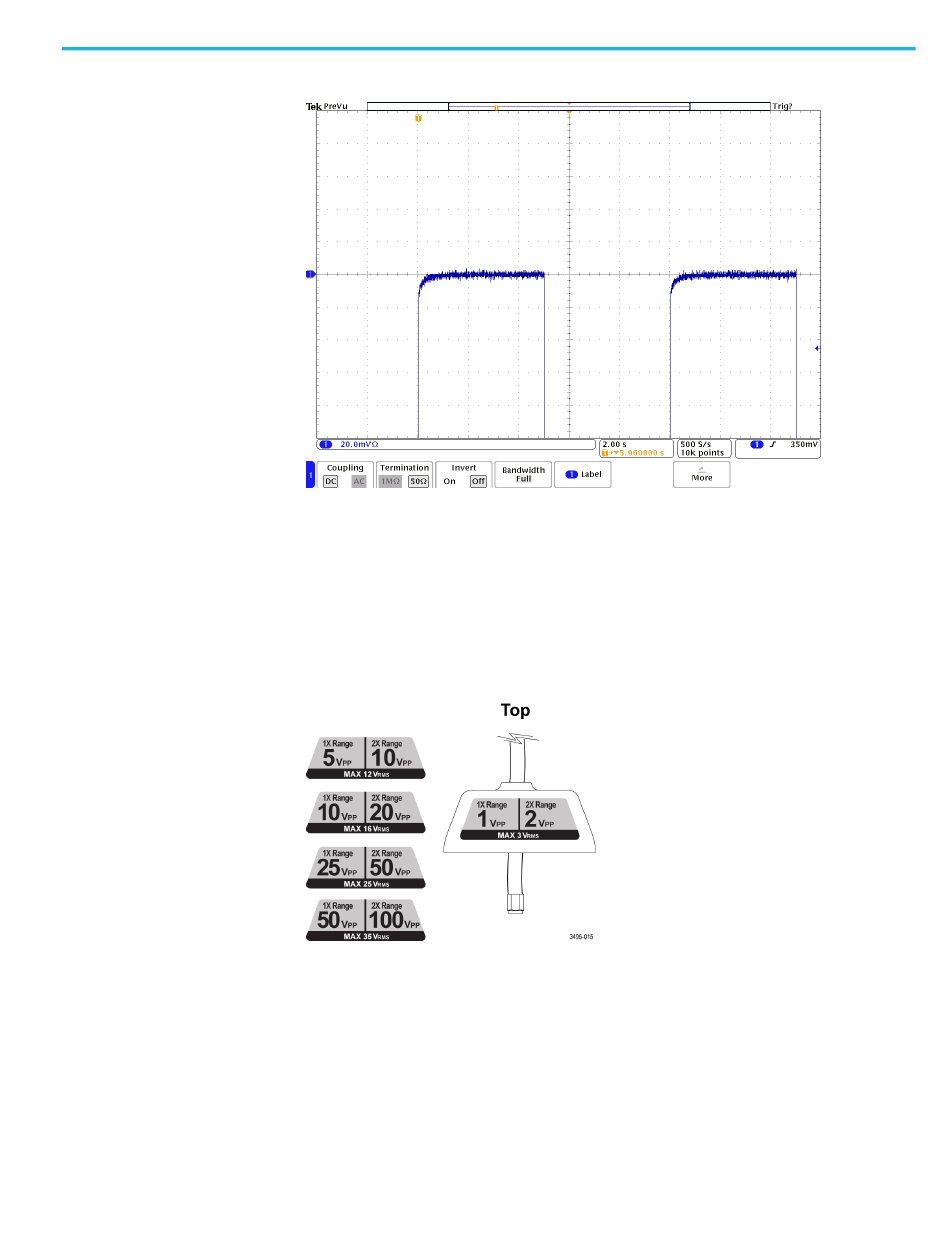

Figure 12: Digital filter aberrations after disabling offset correction
The top label of each sensor tip cable (IVTIP1X, IVTIP5X, IVTIP10X,
IVTIP25X, IVTIP50X) shows the dynamic range in peak-to-peak volts as shown
in the following figure.
Figure 13: Top sensor tip labels
Operating information
17
