Ethernet 10G Input/Capture Pipeline

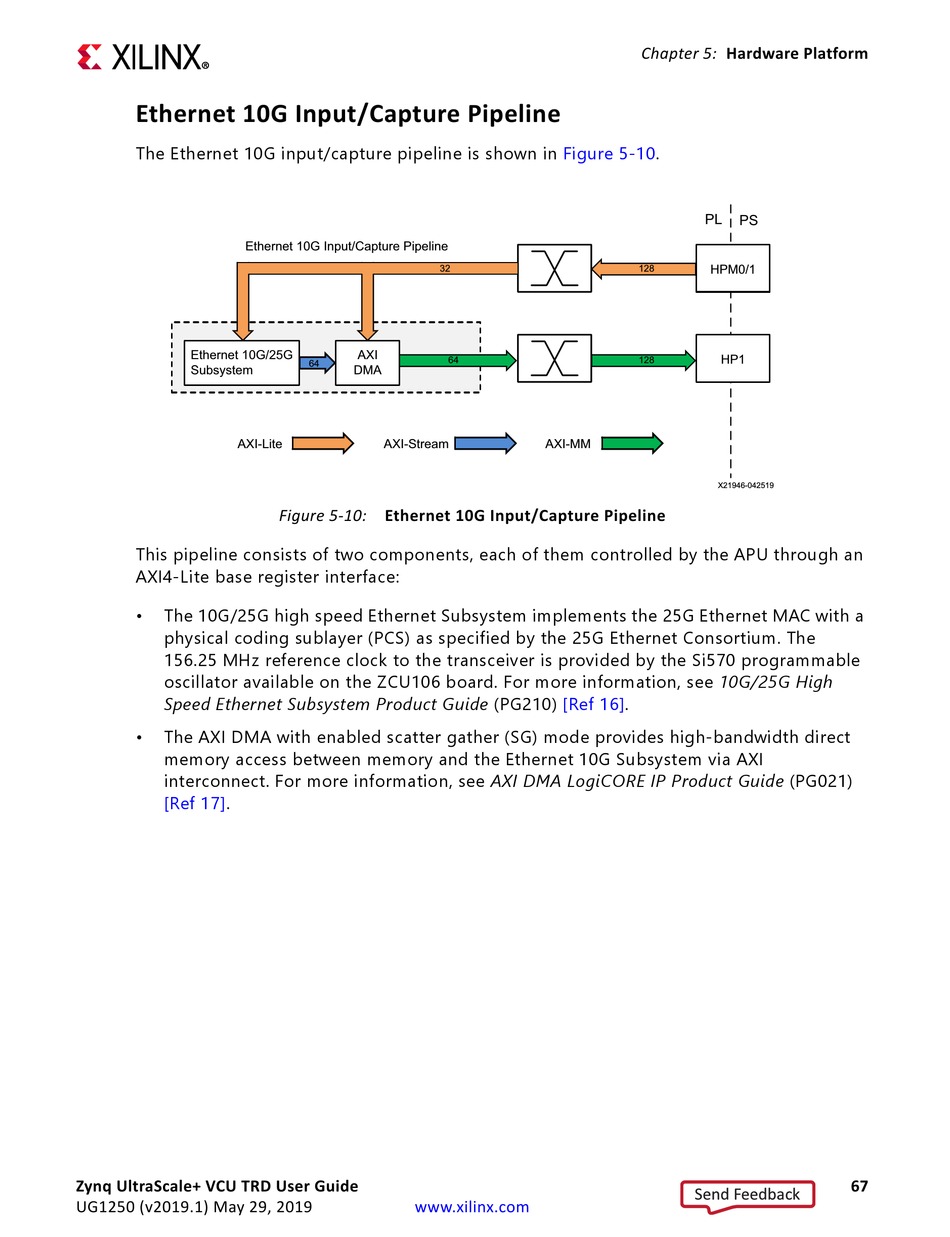

The Ethernet 10G input/capture pipeline is shown in
X-Ref Target - Figure 5-10
Ethernet 10G Input/Capture Pipeline
Ethernet 10G/25G
Subsystem
AXI-Lite
This pipeline consists of two components, each of them controlled by the APU through an
AXI4-Lite base register interface:
• The 10G/25G high speed Ethernet Subsystem implements the 25G Ethernet MAC with a
physical coding sublayer (PCS) as specified by the 25G Ethernet Consortium. The
156.25 MHz reference clock to the transceiver is provided by the Si570 programmable
oscillator available on the ZCU106 board. For more information, see 10G/25G High
Speed Ethernet Subsystem Product Guide (PG210)
• The AXI DMA with enabled scatter gather (SG) mode provides high-bandwidth direct
memory access between memory and the Ethernet 10G Subsystem via AXI
interconnect. For more information, see AXI DMA LogiCORE IP Product Guide (PG021)
[Ref 17].
Zynq UltraScale+ VCU TRD User Guide
UG1250 (v2019.1) May 29, 2019
32
AXI
64
64
DMA
AXI-Stream
Figure 5-10: Ethernet 10G Input/Capture Pipeline
www.xilinx.com
Chapter 5: Hardware Platform
Figure 5-10.
PL
128 HPM0/1
HP1
128
AXI-MM
X21946-042519 X20149-072218 X21946-120318
[Ref 16].
