A user application based on GStreamer demonstrates the features of the TRD.
shows the software stack present in the TRD.
X-Ref Target - Figure 3-7
ALSA
V4L2 DMA_BUF_FD
Plugin
Plugin
libalsa libv4l
ALSA V4L2
Sound
Pipeline
DMA_BUF
Card
Driver
Table 3-1: Software Stack Components
Component
Kernel drivers
User space libraries
OpenMAX v1.1.2
Zynq UltraScale+ VCU TRD User Guide
UG1250 (v2019.1) May 29, 2019
VCU QT Application/VCU GST Application
GStreamer Interface Library/Video Library
gst-omx plugin
DMA_BUF_FD
OMX
Encoder
Encoder low Decoder low
level control
level control
SW library
SW library
Encoder Decoder
Kernel
DMA_BUF
Driver
Developed Open Source

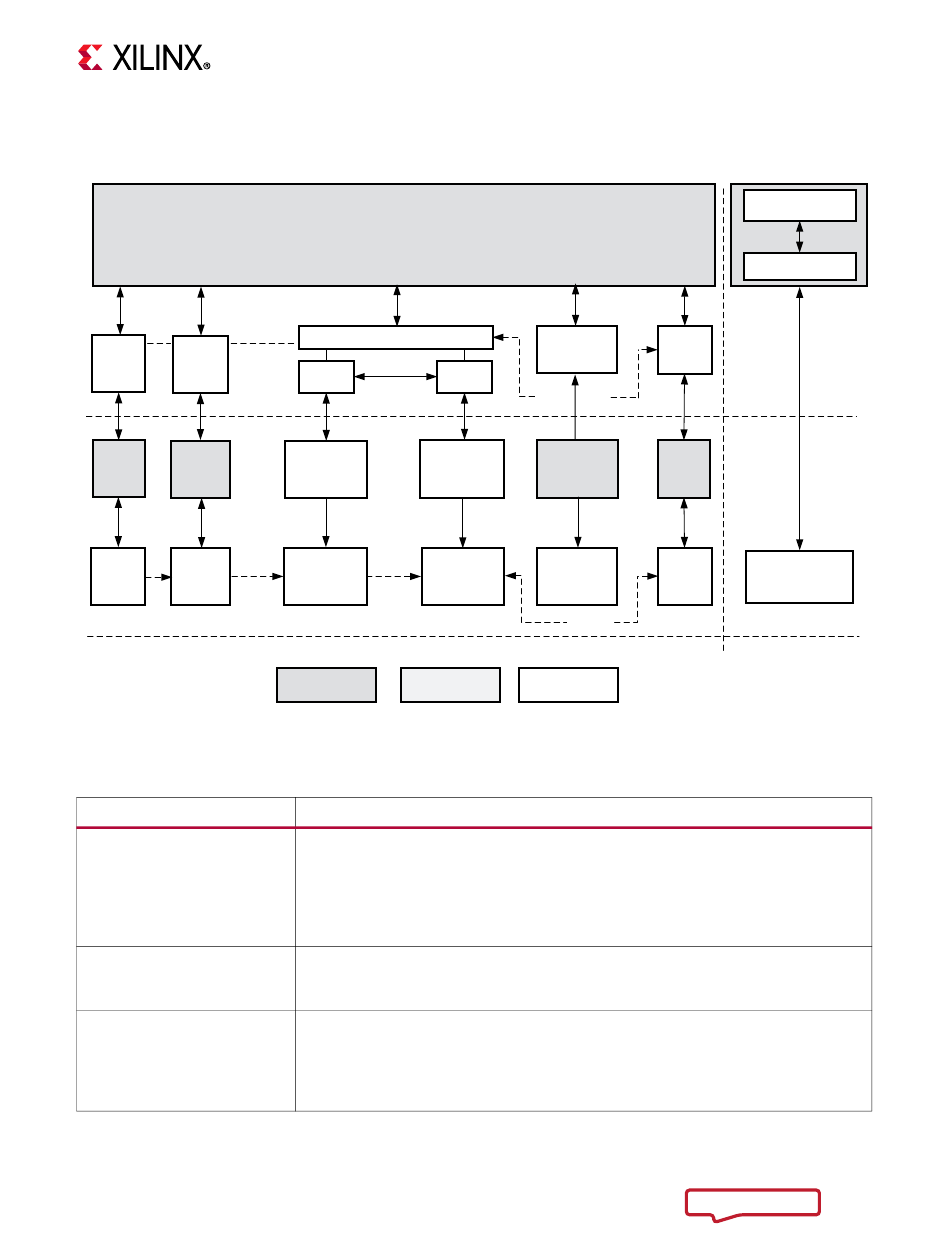

Figure 3-7: TRD Software Stack
This layer contains the kernel drivers for HDMI, Test Pattern Generator (TPG),
IMX274 sensor driver, MIPI CSI-2 RX Subsystem, Xilinx Video Demosaic, Xilinx
Video Gamma LUT, VPSS Color Space Converter (CSC), Xilinx Video Processing
Subsystem (VPSS Only configuration, 2X configuration), HDMI TX Subsystem,
HDMI RX Subsystem, Xilinx Video Pipeline (XVIPP), Mixer, VCU, Xilinx PL sound
card, Xilinx Audio Formatter, DisplayPort controller, and the Mali GPU.
User space libraries include the media and v4l2 lib for the video pipeline,
GStreamer libraries, lib_decode libraries for VCU, libdrm for the DRM device,
libalsa, and Mali user-space libraries for the GPU.
The OpenMAX integration layer (IL) components for encoder and decoder
provides an abstraction for VCU to a user space media framework like GStreamer
(a complete, cross-platform solution to play, record, convert, and stream audio
and video) [Ref 5]. It implements a standard application programming interface
(API) for the user space media framework.
