- Page 1 Single-Monitor Mount - Articulating Arm ARMPIVOTB *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/ARMPIVOTB.
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 3 注意 Warning statements Make sure to assemble this product according to the instructions. Failure to do so might result in 必ず取扱説明書に従って本製品の組み立てを行って下さい。 取り扱いを誤った場合に、 傷害を負う恐れ personal injury or property damage. や物的損害が発生する恐れがあります。 Make sure that the weight of the monitor doesn’t exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment.
-
Page 4: Table Of Contents
Package contents ............................4 Requirements ............................. 6 Assembly ....................7 Attach the ARMPIVOTB to your mounting surface ............... 7 Attach the monitor arm .......................... 11 Attach a monitor to the monitor arm ....................12 Adjust the tilt angle of your monitor ....................16 Organize your cables .......................... -
Page 5: Introduction

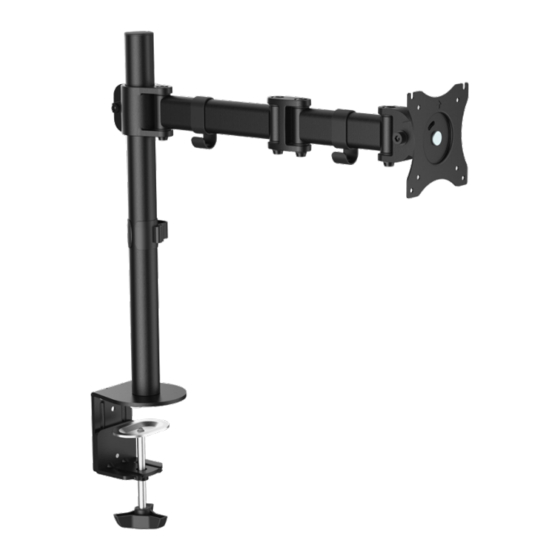

Introduction You can use the ARMPIVOTB to position a single monitor in a way that works best in your setup and allows for comfortable viewing. The monitor arm extends and can support monitors between 13 and 27 inches in size. This monitor arm includes desk and grommet mounting options, and features a straightforward assembly process. -
Page 6: Product Dimensions
Product dimensions 174 mm 33 mm 121 mm 65 mm 35 mm +45° -45° 75 mm 100 mm 116 mm 360° Instruction manual... -
Page 7: Technical Specifications
Technical specifications Type of measurement Measurement VESA mounting hole pattern 75x75 100x100 Weight capacity Up to 8 kg (17.6 lb.) Tilt +450 to -450 Screen size Maximum 685.8 mm (27 in.) Rotate 3600 Swivel 1800 Instruction manual... -
Page 8: Package Contents
Package contents Monitor arm Pole Qty: One Qty: One Desk clamp Desk-clamp screw Qty: One Qty: One Grommet baseplate Grommet plate Qty: One Qty: One Instruction manual... - Page 9 Rubber pads Cable-management clip Qty: Five Qty: One 5 mm hex key 6 mm hex key Qty: One Qty: One M4x12 mm screws M5x12 mm screws Qty: Four Qty: Four Instruction manual...
-
Page 10: Requirements
Washers Instruction manual Qty: Four Qty: One Requirements • A monitor or display that’s compatible with a VESA mount • A Phillips screwdriver Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ARMPIVOTB. Instruction manual... -
Page 11: Assembly
Assembly Attach the ARMPIVOTB to your mounting surface You can use either the desk clamp or grommet mount to attach the ARMPIVOTB to your mounting surface. Use the desk clamp to attach the ARMPIVOTB Warning! Make sure that the weight of the monitor doesn’t exceed the weight capacity of this product. - Page 12 6 mm hex key 5. Turn the knob on the desk clamp counterclockwise until you reach the thickness of the mounting surface that you’re attaching the ARMPIVOTB to. 6. Slide the desk clamp over the edge of the desk or table.
- Page 13 Warning! Make sure that the weight of the monitor doesn’t exceed the weight capacity of this product. This product can support the following weight: Up to 8 kg (17.6 lb.). Using the grommet mount to attach the ARMPIVOTB requires the assistance of a second person.
- Page 14 4. Position the grommet baseplate over the grommet hole in the mounting surface, and position the pole (2) over the grommet baseplate so that the projection on the grommet baseplate fits into one of the two holes on the pole. (figure 7) figure 7 Pole Projection...
-
Page 15: Attach The Monitor Arm
Attach the monitor arm 1. Slide the cable-management clip (8) down the pole (2). (figure 9) figure 9 Cable-management clip Pole 2. Slide the monitor arm (1) down the pole. 3. When the monitor arm is at the required height, use the 5 mm hex key (9) to tighten the screw in the side of the monitor arm. -
Page 16: Attach A Monitor To The Monitor Arm
100x100 and a 75x75 mounting hole pattern. Use the 100x100 VESA mounting hole pattern to attach a monitor To accommodate different monitor sizes, the ARMPIVOTB comes with two sets of screws that are different lengths and diameters. To select the appropriate screws for the type of monitor that you’re using, complete the following: •... - Page 17 3. Carefully hook the screws into the top two slots on the VESA monitor mount on the monitor arm. (figure 12) Caution! If the monitor arm starts to slip down the pole (2) when you add the weight of the monitor, remove the monitor and use the 5 mm hex key (9) to tighten the screw in the side of the monitor arm.
- Page 18 5. Place the other two washers over the mounting holes in the VESA monitor mount on the monitor arm. 6. Insert the other two M4x12 mm screws or M5x12 mm screws through the washers, the mounting holes in the VESA monitor mount, and into the back of the monitor. (figure 14) Warning! Do not over-tighten the screws.
- Page 19 Use the 75x75 VESA mounting hole pattern to attach a monitor To accommodate different monitor sizes, the ARMPIVOTB comes with two sets of screws that are different lengths and diameters. To select the appropriate screws for the type of monitor that you’re using, complete the following: •...
-
Page 20: Adjust The Tilt Angle Of Your Monitor
Adjust the tilt angle of your monitor 1. To change the angle that the monitor is tilted at, use the 6 mm hex key (10) to turn the screw in the side of the VESA monitor mount counterclockwise. 2. When the screw is loose, position the monitor at the angle that works best for you. 3. -
Page 21: Organize Your Cables
Organize your cables You can use the cable-management clips on the ARMPIVOTB to organize your cables and help to keep your work area free from cable clutter. 1. Position the cable from your monitor in the hooks in the cable-management clips along the monitor arm (1). -
Page 22: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 23 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
