Attach the Crossbar

1. Slide the Height-Adjustment Ring down the Pole to the desired height.
Note: The Height-Adjustment Ring uses a ratchet-style fastening system. Pull
the Lever outward to adjust the position of the Lever without affecting the
tension on the screw. This feature will help with tightening the Ring when it is in
contact with the Crossbar.
2.
Rotate the Lever on the Height-Adjustment Ring clockwise to tighten it and
prevent it from sliding down the Pole.

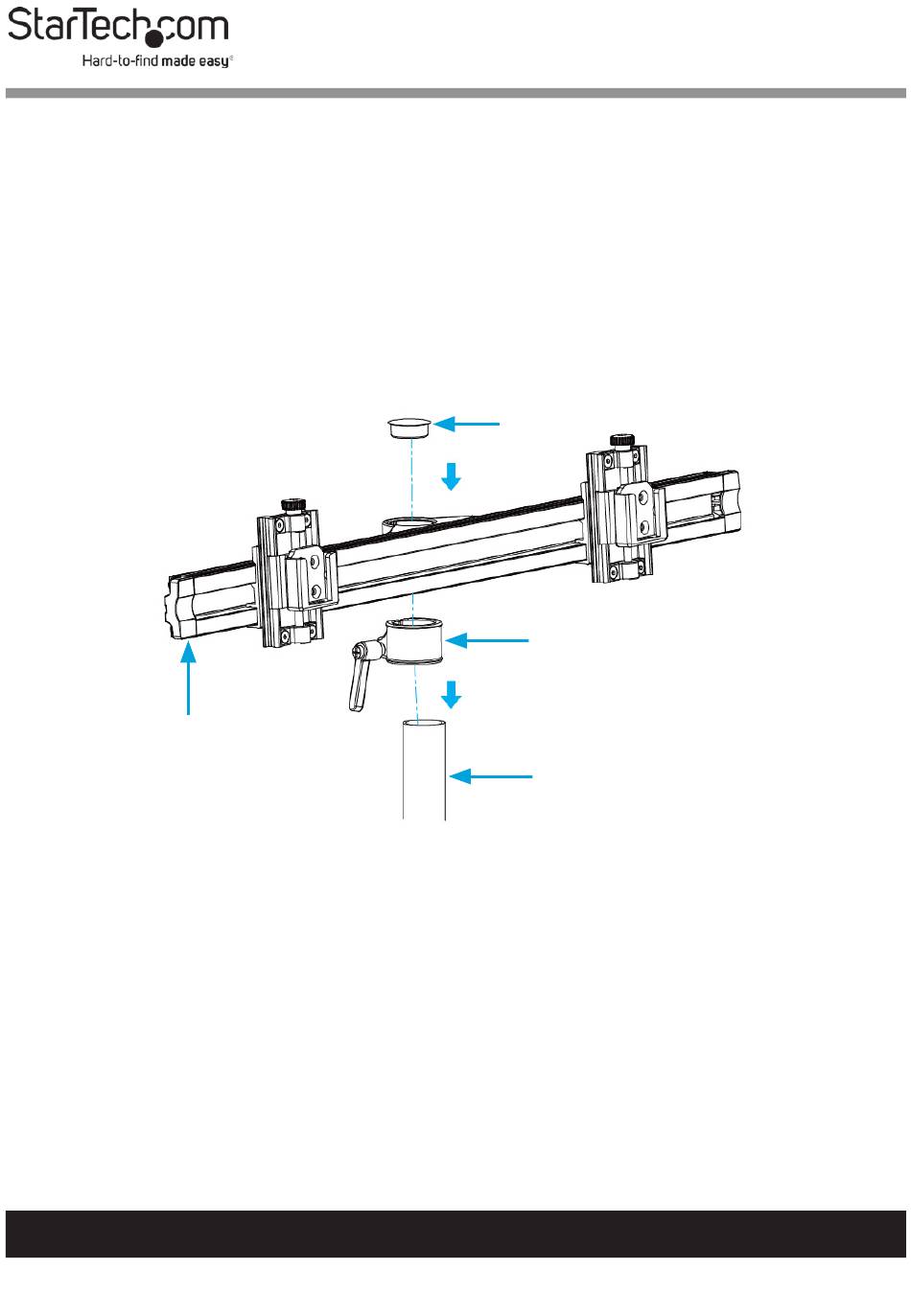

Figure 2
Crossbar
3.
Slide the Crossbar down the pole so that it sits on the Height-Adjustment Ring.
4.
Push the Pole Cap down into the top of the Pole (Figure 2).
5. Use the M3 Hex Key and turn the Set Screws in the Crossbar clockwise to
tighten it and prevent it from moving (Figure 3).
