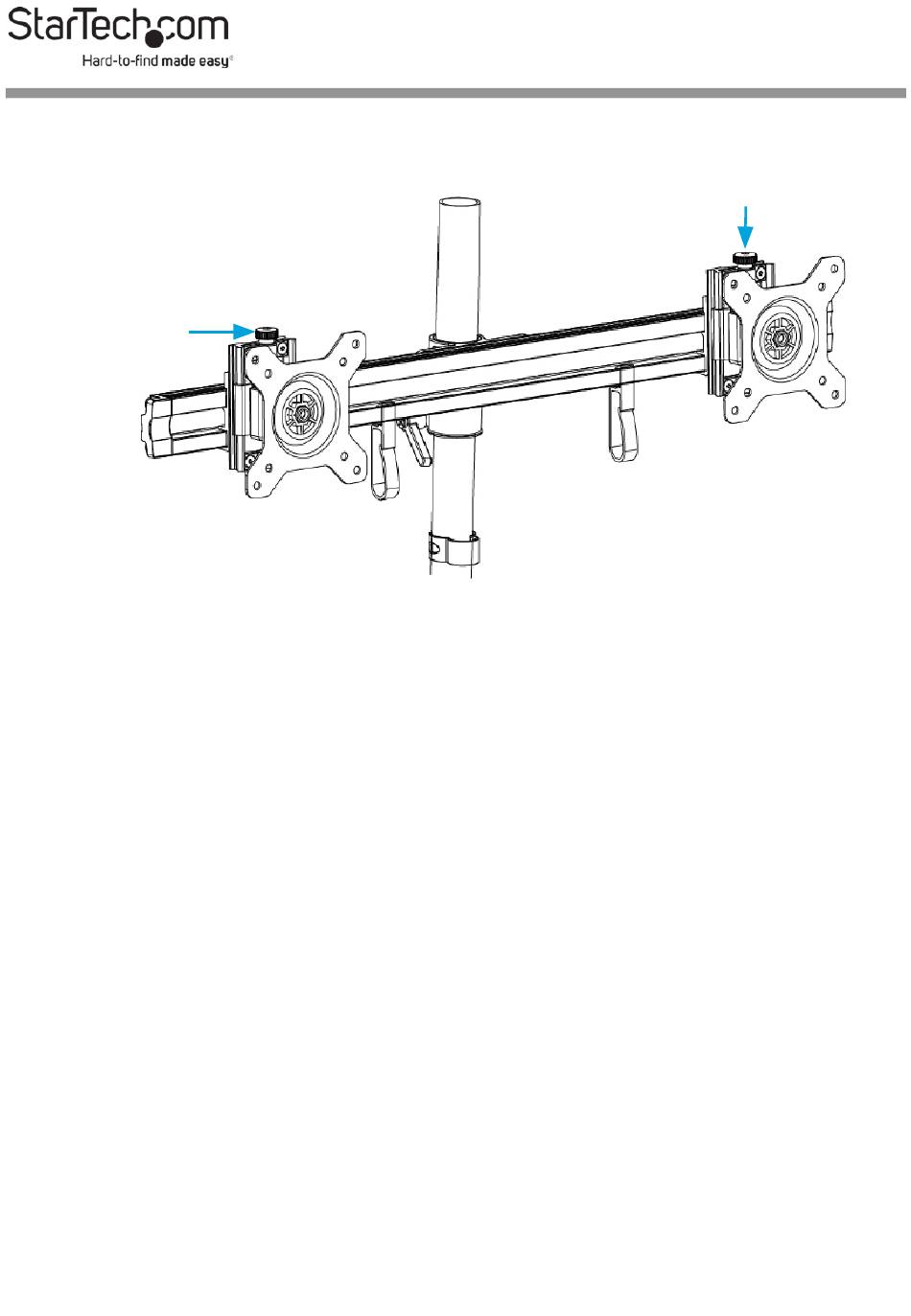

Figure 6
Height-
Adjustment
Screw
5.
Do one of the following:
•
To install Monitors that have a flush installation surface, insert four of
the M4x12 mm Screws through the VESA Monitor Mount and into
the Mounting Holes on the back of the Monitor. Use a Phillips Head
Screwdriver to tighten the Screws (Figure 7).
•
To install Monitors that have a recessed installation surface, insert four of
the M4x30 mm Screws through the VESA Monitor Mount, into four of the
Plastic Spacers and into the Mounting Holes on the back of the Monitor.
Use a Phillips Head Screwdriver to tighten the Screws (Figure 8).
Warning! Do not over-tighten the Screws. If you encounter resistance while
you're tightening the Screws, stop tighten ing. Failure to do so could result in
damage to the Monitors.
6.
Slide each of the VESA Monitor Mounts into the Plates on the Crossbar.
Warning! Lifting and moving ARMDUOSS is a two-person job. Do not attempt to
complete this task by yourself.
Tipping hazard! ARMDUOSS is free-standing and when you attach Monitors to
it, you increase the tipping hazard.
7.
Turn the Screw on the side of each of the VESA Monitor Mounts clockwise to
tighten the VESA Monitor Mounts in place.
