PANEL DESCRIPTION

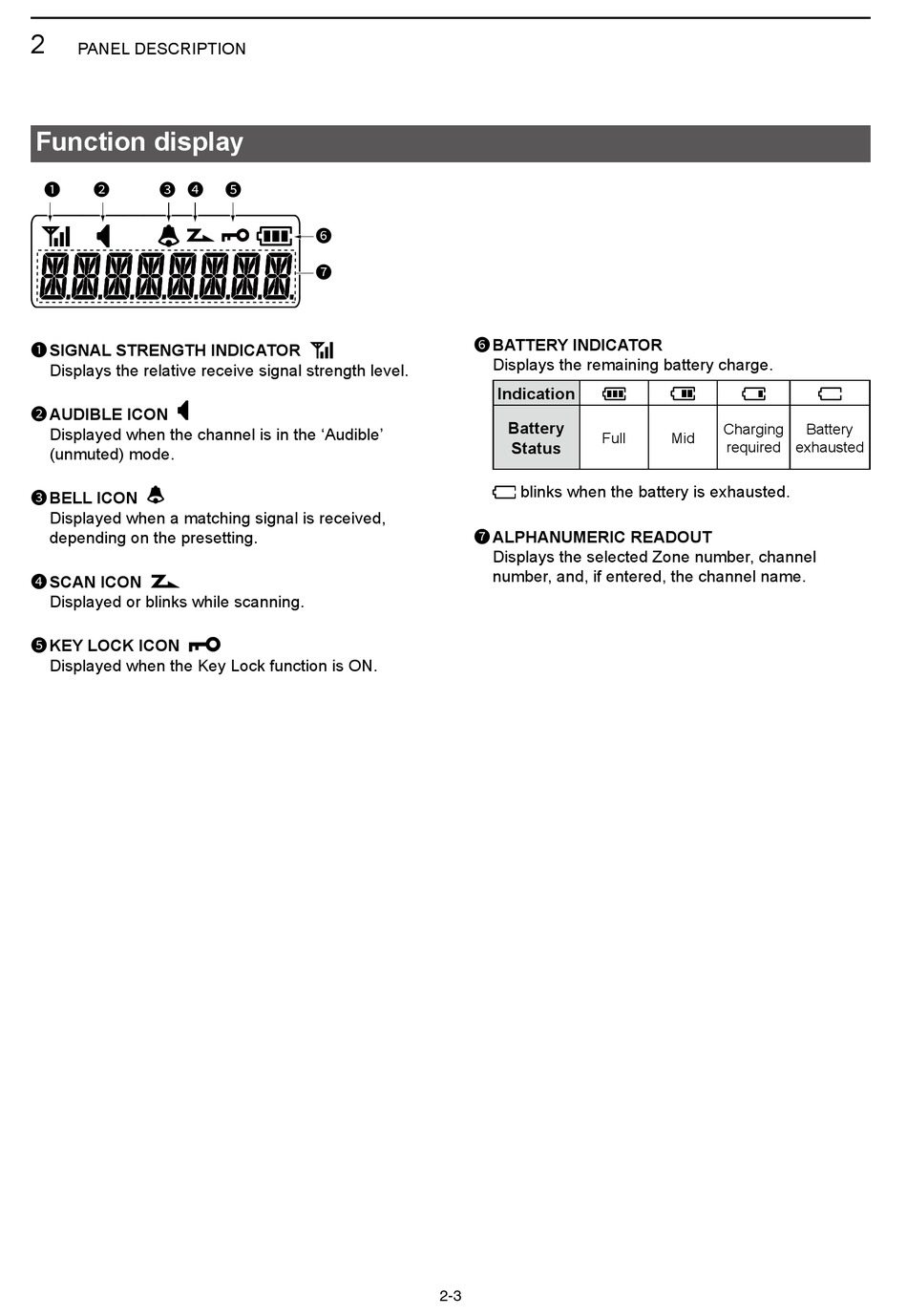

Function display

1 2 3 4 5
1 SIGNAL STRENGTH INDICATOR
Displays the relative receive signal strength level�
2 AUDIBLE ICON
Displayed when the channel is in the 'Audible'
(unmuted) mode�
3 BELL ICON
Displayed when a matching signal is received,
depending on the presetting�
4 SCAN ICON
Displayed or blinks while scanning�
5 KEY LOCK ICON
Displayed when the Key Lock function is ON�
6
7
6 BATTERY INDICATOR
7 ALPHANUMERIC READOUT
2-3
Displays the remaining battery charge�
Indication
Battery
Full
Status
blinks when the battery is exhausted�
Displays the selected Zone number, channel
number, and, if entered, the channel name�
Charging Battery
Mid
required exhausted
