1

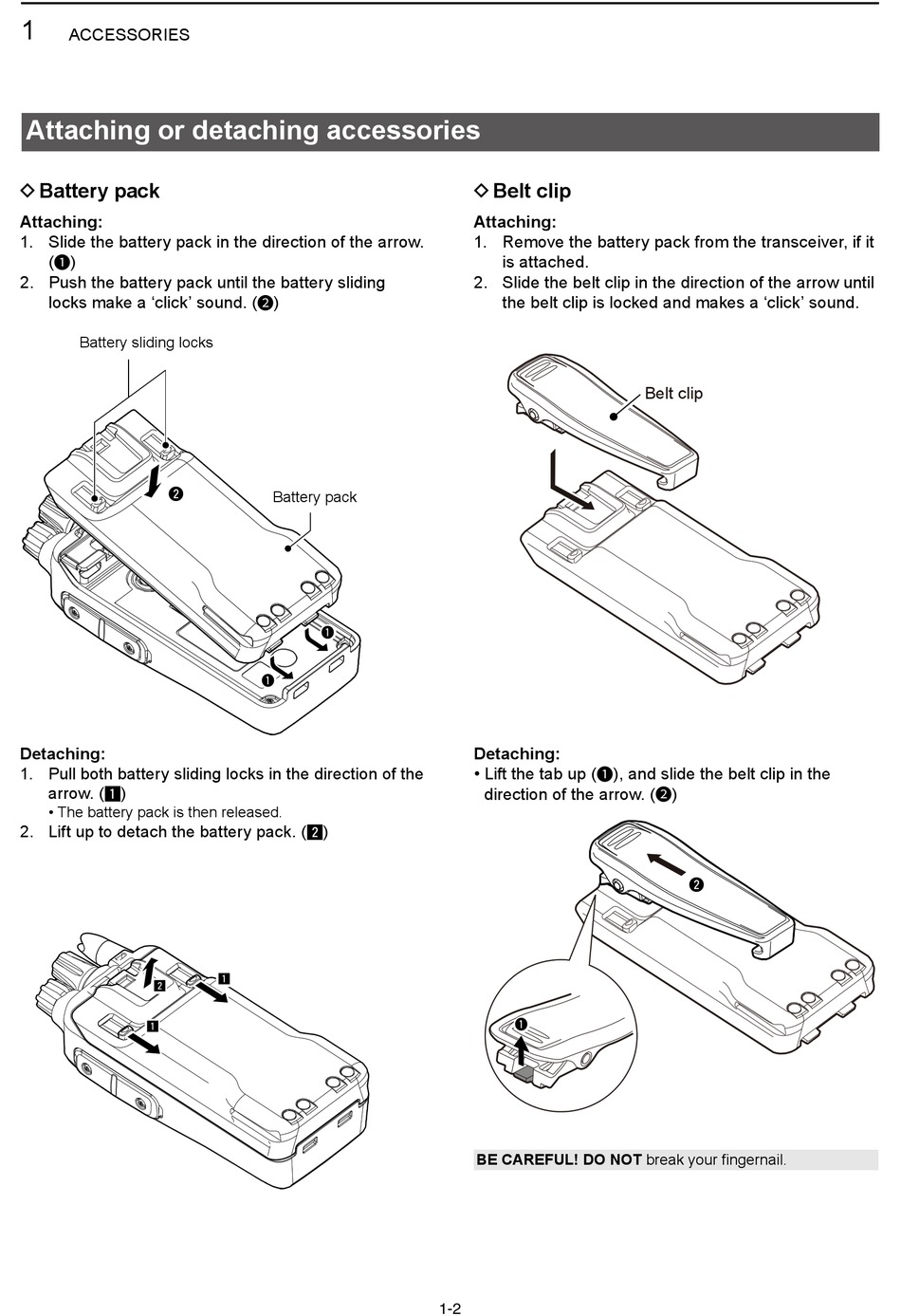

ACCESSORIES
Attaching or detaching accessories
D Battery pack
Attaching:
1� Slide the battery pack in the direction of the arrow�
( 1 )
2� Push the battery pack until the battery sliding
locks make a 'click' sound� ( 2 )
Battery sliding locks
w
Detaching:
1� Pull both battery sliding locks in the direction of the
arrow� ( z )
• The battery pack is then released�
2� Lift up to detach the battery pack� ( x )
x
z
Battery pack
q
q
z
D Belt clip
Attaching:
1� Remove the battery pack from the transceiver, if it
is attached�
2� Slide the belt clip in the direction of the arrow until
the belt clip is locked and makes a 'click' sound�
Detaching:
• Lift the tab up ( 1 ), and slide the belt clip in the
direction of the arrow� ( 2 )
q
BE CAREFUL! DO NOT break your fingernail.
1-2
Belt clip
w
