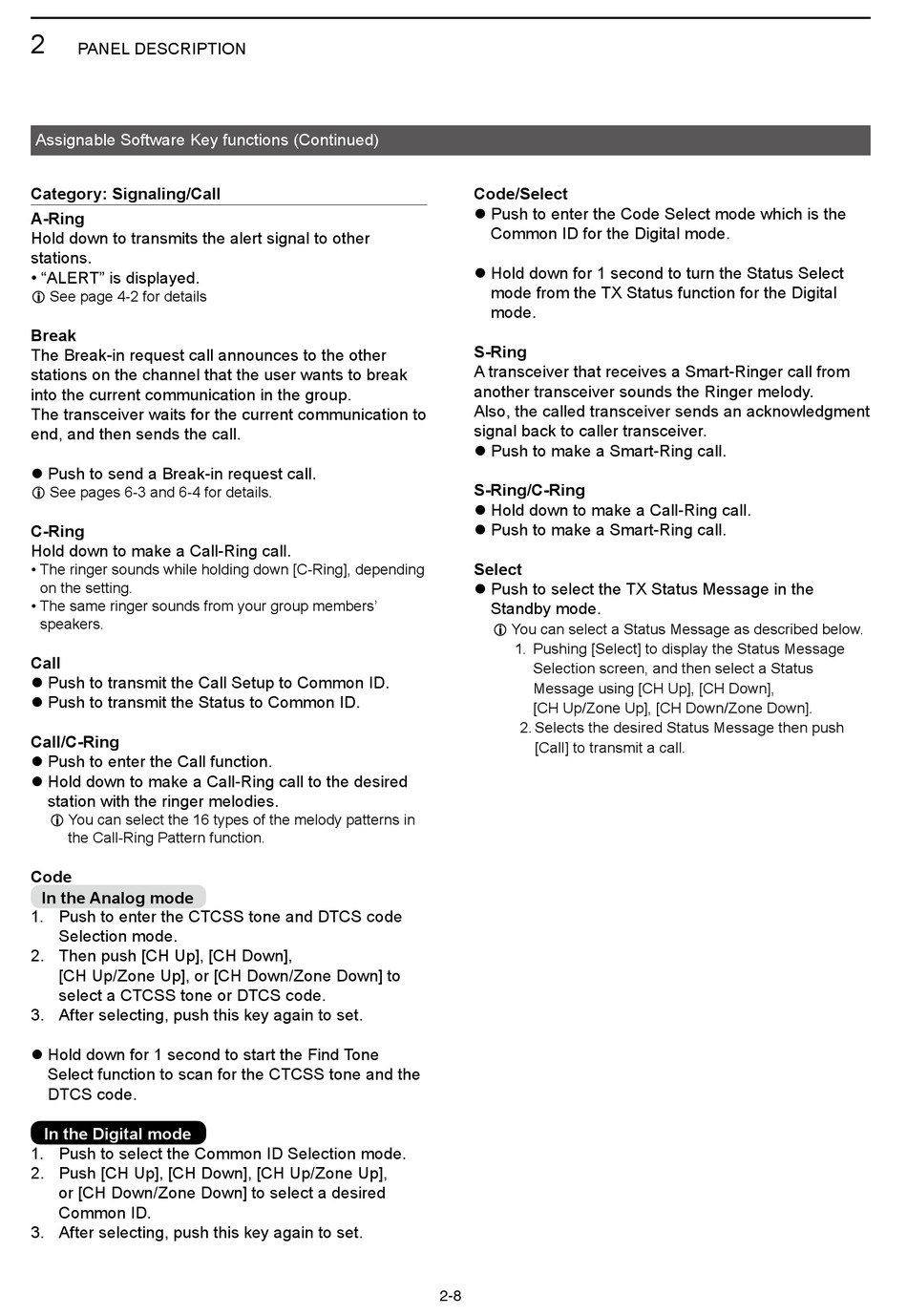

Icom dPMR446 Operating Manual page 13

2
PANEL DESCRIPTION
Assignable Software Key functions (Continued)
Category: Signaling/Call
A-Ring
Hold down to transmits the alert signal to other
stations�
• "ALERT" is displayed�
L See page 4-2 for details
Break
The Break-in request call announces to the other
stations on the channel that the user wants to break
into the current communication in the group�
The transceiver waits for the current communication to
end, and then sends the call�
z Push to send a Break-in request call�
L See pages 6-3 and 6-4 for details�
C-Ring
Hold down to make a Call-Ring call�
• The ringer sounds while holding down [C-Ring], depending
on the setting�
• The same ringer sounds from your group members'
speakers�
Call
z Push to transmit the Call Setup to Common ID�
z Push to transmit the Status to Common ID�
Call/C-Ring
z Push to enter the Call function�
z Hold down to make a Call-Ring call to the desired
station with the ringer melodies�
L You can select the 16 types of the melody patterns in
the Call-Ring Pattern function�
Code
In the Analog mode
1� Push to enter the CTCSS tone and DTCS code
Selection mode�
2� Then push [CH Up], [CH Down],
[CH Up/Zone Up], or [CH Down/Zone Down] to
select a CTCSS tone or DTCS code�
3� After selecting, push this key again to set�
z Hold down for 1 second to start the Find Tone
Select function to scan for the CTCSS tone and the
DTCS code�
In the Digital mode
1� Push to select the Common ID Selection mode�
2� Push [CH Up], [CH Down], [CH Up/Zone Up],
or [CH Down/Zone Down] to select a desired
Common ID�
3� After selecting, push this key again to set�
Code/Select
z Push to enter the Code Select mode which is the
Common ID for the Digital mode�
z Hold down for 1 second to turn the Status Select
mode from the TX Status function for the Digital
mode�
S-Ring
A transceiver that receives a Smart-Ringer call from
another transceiver sounds the Ringer melody�
Also, the called transceiver sends an acknowledgment
signal back to caller transceiver�
z Push to make a Smart-Ring call�
S-Ring/C-Ring
z Hold down to make a Call-Ring call�
z Push to make a Smart-Ring call�
Select
z Push to select the TX Status Message in the
Standby mode�
L You can select a Status Message as described below�
1� Pushing [Select] to display the Status Message
Selection screen, and then select a Status
Message using [CH Up], [CH Down],
[CH Up/Zone Up], [CH Down/Zone Down]�
2� Selects the desired Status Message then push
[Call] to transmit a call�
2-8
