NOTE: Use these amended pages as one addendum set.
Do not mix them up with the previous master pages.
CONTENTS
REPLACEMENT PAGE:
MECHANICAL PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
AMENDED PAGES:
PARTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
BOARD LAYOUTS (MAIN-A1/A2/A3/A4/A5/A6 UNIT: B-7409C) . . . . 2
[VERSION LIST]

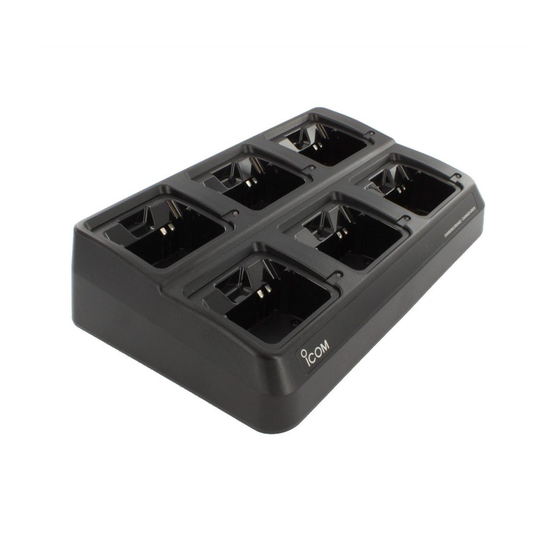

MODEL
BC-197
* Newly added versions.
July 2016
SERVICE MANUAL
ADDENDUM
VERSION
SUPPLIED
VERSION
NUMBER
AC ADAPTOR
OTH
#01
USA
#02
BC-157S (USA)
EUR
#03
BC-157S (EUR)
OTH-01
#11
USA-01
#12
BC-157S (USA)
EUR-01
#13
BC-157S (EUR)
OTH-02
#21
USA-02
#22
BC-157S (USA)
EUR-02
#23
BC-157S (EUR)
OTH-03
#26
USA-03
#27
BC-157S (USA)
EUR-03
#28
BC-157S (EUR)
OTH-04
#31
USA-04
#32
BC-157S (USA)
EUR-04
#33
BC-157S (EUR)
OTH-07
#36*
USA-12
#37
BC-157S (USA)
EUR-07
#38*
BC-157S (EUR)
USA-08
#50*
USA-09
#51*
USA-07
#52*
USA-10
#53*
USA-11
#54*
INSTALLED
ADAPTOR
–
AD-120
–
AD-121
–
AD-122
–
AD-124
–
AD-129
–
AD-128
–
–
