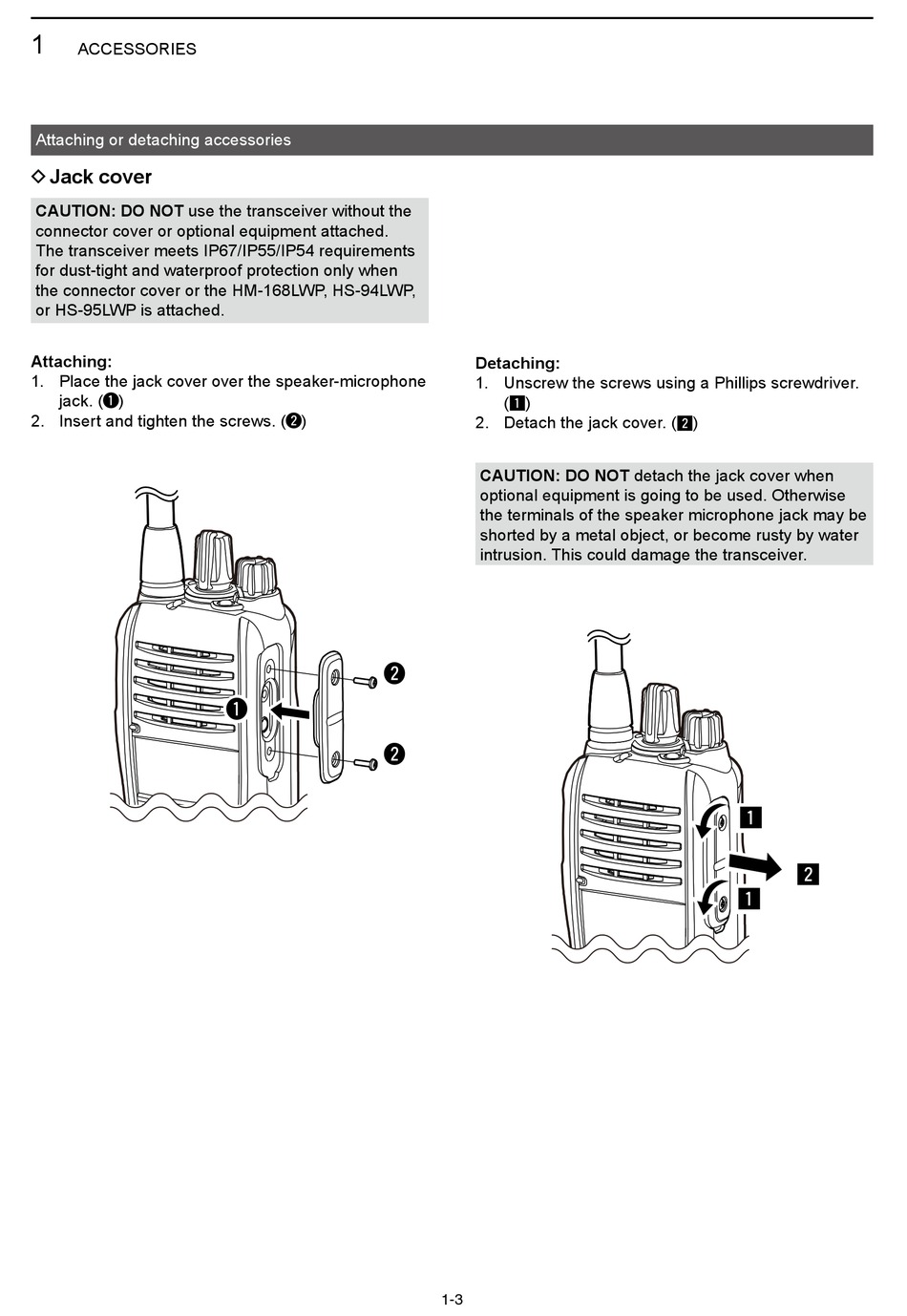

Icom dPMR446 Operating Manual page 5

1
ACCESSORIES
Attaching or detaching accessories
D Jack cover
CAUTION: DO NOT use the transceiver without the
connector cover or optional equipment attached�
The transceiver meets IP67/IP55/IP54 requirements
for dust-tight and waterproof protection only when
the connector cover or the HM-168LWP, HS-94LWP,
or HS-95LWP is attached�
Attaching:
1� Place the jack cover over the speaker-microphone
jack� (q)
2� Insert and tighten the screws� (w)
w
q
w
Detaching:
1� Unscrew the screws using a Phillips screwdriver�
( z )
2� Detach the jack cover� ( x )
CAUTION: DO NOT detach the jack cover when
optional equipment is going to be used� Otherwise
the terminals of the speaker microphone jack may be
shorted by a metal object, or become rusty by water
intrusion� This could damage the transceiver�
1-3
z
x
z
