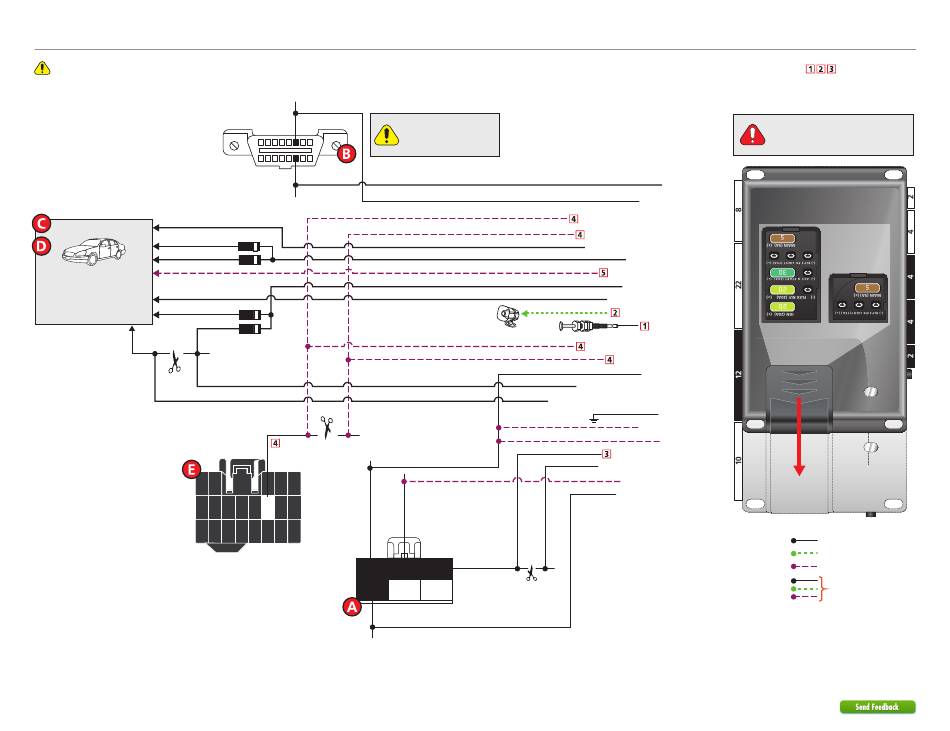

Wiring diagram with OEM alarm
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
OBDII
Diagnostic Connector
(connector side view)
(-) Factory Alarm Arm
(-) Lock
Refer to "Vehicle connections"
section for corresponding
connector, pin and wire color (-) Factory Alarm Disarm
of your vehicle.
(-) Unlock
(-) Lock Detection
Cut
(Black 21-pin conn. left
9 933.HKHT1 3.20.193.1 2012 Hyundai Accent
© 2019-03-20 Directed. All rights reserved.
C-CAN High: pin 6
1 8
9 16
C-CAN Low: pin 14
4 x
1A Diodes
Cut
EMS COM:
Blue/Orange, pin 11
(+)12V:
Green,
pin 1
11
EM01
1
of junction box.)
4
(+) Ignition: Pink, pin 4
Ignition Switch
(black conn.)
C-CAN wires MUST
be connected for
proper operation.
EMS COM Data (conn. side): Orange/Black: 7
Siren
Hood Pin
Lock Detection Interr. (veh. side): Lt. Green: 8
Lock Detection Interr. (conn. side): Lt. Green/White: 9
(+) Accessory:
Orange,
pin 2
(+) Starter:
White, pin 3
2 3
5 6
CUT
HS CAN Low: Tan: 1
HS CAN High: Tan/Black: 2
EMS COM Data (veh. side): Yellow/Black: 8
(-) Parking Light Output: Lt. Green/Black: 1
(-) Lock Output: Green/Black: 3
(-) RAP Off Output: Brown/White: 6
(-) Unlock Output: Blue/Black: 9
(-) Disarm Output: Lt. Blue/Black: 10
(+) Siren Output: Brown/Red: 11
(-) Hood Input: Gray: 21
EMS COM Data (conn. side): Blue/White: 1
EMS COM Data (veh. side): Blue: 3
(+) 12V Input: Red: 6 & 12
(-) Ground: Black: 10
(+) 12V Input: Red/Black: 2
(+) 12V Input: Red: 5
Starter Input (conn. side): Green: 6
(+) Starter Output (veh. side): Violet: 7
(+) Accessory Output: Orange: 8
(+) Ignition Input/Ouput: Pink: 10
).
It is IMPORTANT to check that
the fuses are positioned
correctly.
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
