Configure the system

Important!

Once the DS4+ module is installed in the vehicle following the instructions in "Installation", launch the DirectLink application on
your mobile device, and select Configure DS4/DS4+. Follow the on-screen instructions to configure the system.
Note: Your system can also be configured using XKLoader2 on www.directechs.com.

RF Systems

An RF System consists of one or multiple remotes, a Control Center (antenna), and an antenna cable – various combinations exist.
An RF System allows the vehicle owner to control the system with enhanced range. Two-way models are available. Please follow
the instructions included with the kit for appropriate installation and programming information.

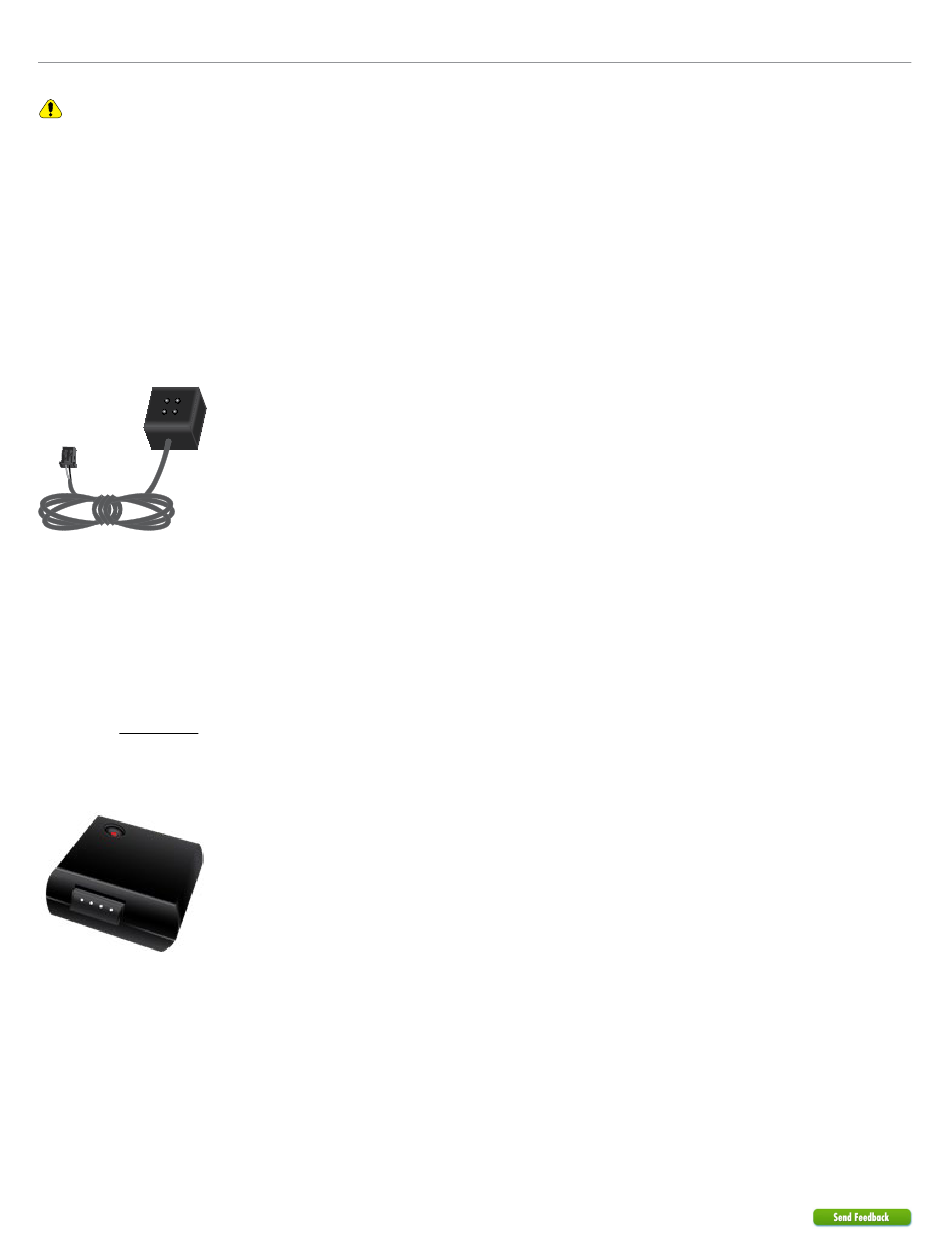

8556T Temperature Sensor

8504D Combo Sensor

The 8504D Combo Sensor is optional, but included with the purchase of a DS4SU security package. The Combo Sensor must be
paired to the device before it can be used.
To enter pairing:
1. Open at one vehicle door.
2. Turn the vehicle ignition to the ON position.
3. Within 10 seconds, press and release once, and then press and hold the programming button on the Control Center
(antenna) or the standalone switch until the LED starts flashing.
Note: Connected devices become registered within 4 to 6 seconds.
The Combo Sensor is preset for the majority of applications; however, it can be adjusted using the
DirectLink application, as well as a compatible LED or LCD remote. Please refer to the instructions
included with the DS4SU for more information on how to make adjustments.
Note: When the system is configured as a remote starter, the temperature is reported by the 8556T
Temperature Sensor. When security features are enabled, it is reported by the 8504D Combo Sensor.
When used in conjunction with SmartStart
To enable D2D communication between the DS4+ and the SmartStart one of the following actions must be executed:
SmartStart with Loops – The brown loop must be cut.
•
SmartStart with Pigtails – The gray wire must be connected to a ground source.
•
Loops
14
933.HKHT1 3.20.193.1 2012 Hyundai Accent
© 2019-03-20 Directed. All rights reserved.
The 8556T Temperature Sensor is optional, but included with your DS4+ module.
When used, the Temperature Sensor must be plugged into the 2-pin black connector of your DS4+
module.
Note: When the system is configured as a remote starter, the temperature is reported by the 8556T
Temperature Sensor. When security features are enabled, it is reported by the 8504D Combo Sensor.
Pigtails
