Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
Programming WITHOUT FT CAN & WITH HS CAN connections & WITH Transponder Immobilizer
(For security-only programming, see "Module programming for security-only installations".)

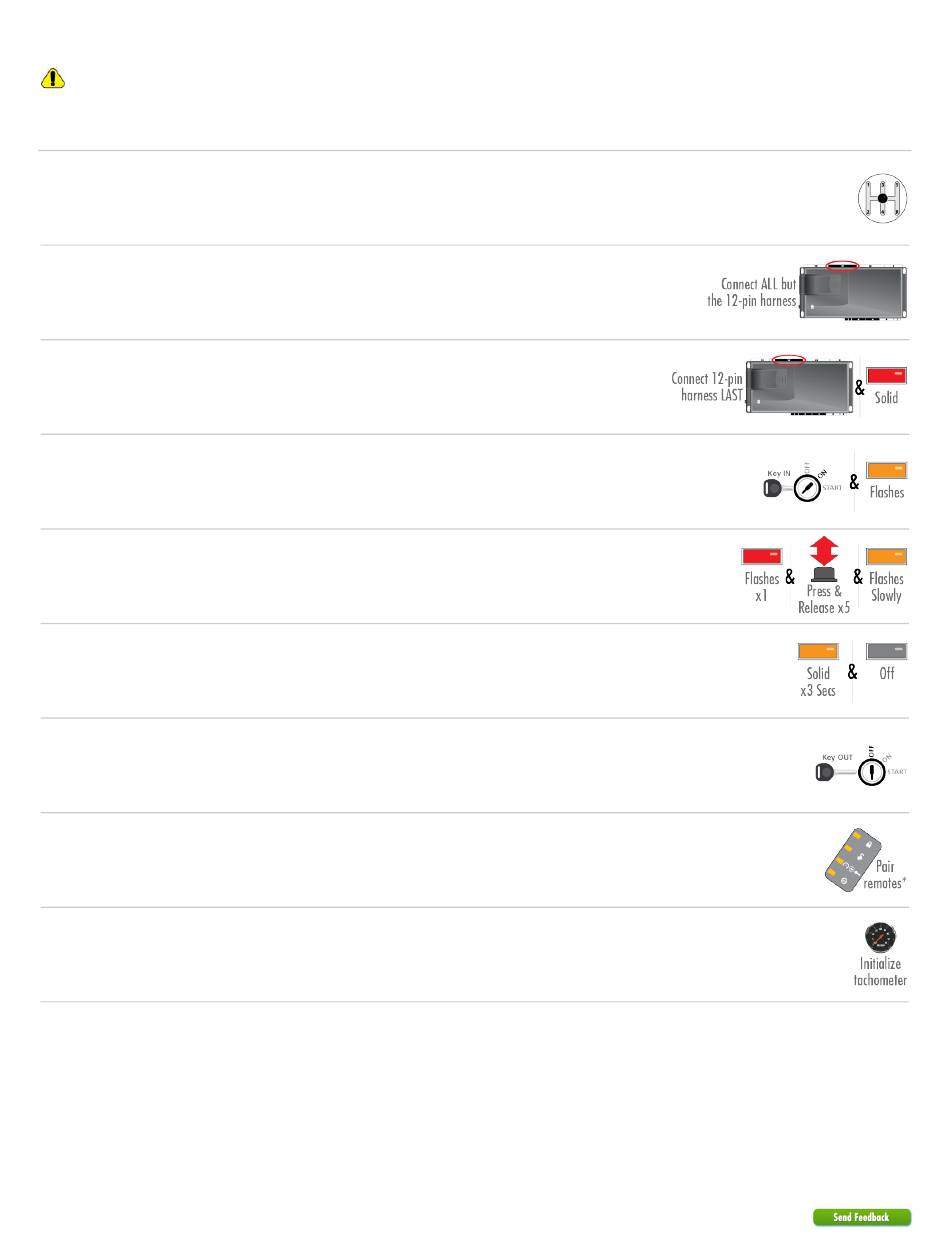

Please ensure that the vehicle is in a safe location, and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the
gearshift lever is in the neutral position.
Connect all the harnesses to the DS4+ module, EXCEPT the 12-pin main power
2
harness.
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
4
Insert and turn the key to the ON position. The LED starts flashing orange quickly.
When the LED flashes red once, press on the programming button 5 times. The LED will
then flash orange slowly.
5
Note: Depending on your vehicle, it may take up to 4 minutes to complete
programming.
6
The LED turns ON solid orange for 3 seconds, then turns OFF.
7
Turn the key to OFF and remove it from the ignition barrel.
Pair remotes (if applicable). For information on how to pair a specific remote, please
8
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
9
program tach, refer to "Initialize Virtual Tach (not needed with hardwired or data tach
applications".
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
