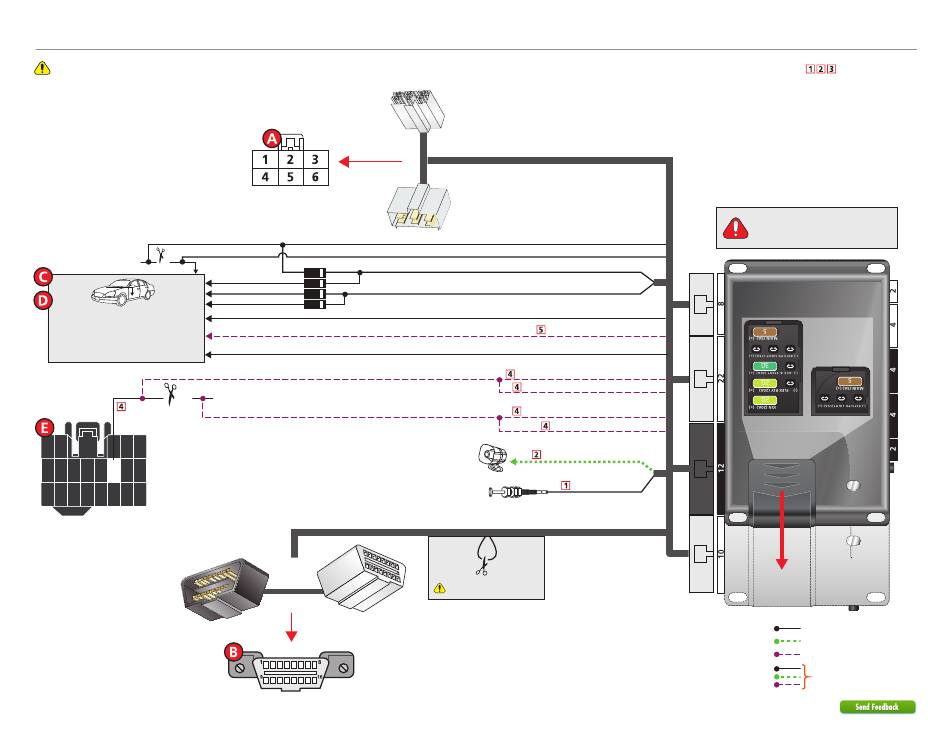

Wiring diagram with OEM alarm and
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Cut
(-) Lock Detection
Refer to the "Vehicle connections"
section for corresponding
connector, pin and wire color of
your vehicle.
Cut
EMS COM:
Blue/Orange, pin 11
11
EM01
(Black 21-pin conn.
left of junction box.)
7 933.HKHT1 3.20.193.1 2012 Hyundai Accent
© 2019-03-20 Directed. All rights reserved.
with T-Harness (THHYN3)
Ignition Switch
4 x 1A Diodes
(-) Unlock
(-) Factory Alarm Arm
(-) Lock
(-) Factory Alarm Disarm
Diagnostic
Connector
OBDII
OBDII - Diagnostic
16-pin Conn.
DS4+
DS4+
THHYN3
(Optional T-Harness)
Lock Detection Interr. (veh. side): Lt. Green
Lock Detection Interr. (conn. side): Lt. Green/White
(-) Unlock Output: Blue/Black
(-) Lock Output: Green/Black
(-) Parking Light Output: Lt. Green/Black
(-) RAP Off Output: Brown/White
(-) Disarm Output: Lt. Blue/Black
EMS COM Data (conn. side): Orange/Black
EMS COM Data (conn. side): Blue/White
EMS COM Data (veh. side): Yellow/Black
EMS COM Data (veh. side): Blue
(+) Siren Output: Brown/Red
Siren
(-) Hood Input: Gray
Hood Pin
Cut the Yellow/Black loop
for this installation.
).
It is IMPORTANT to check that
the fuses are positioned
correctly.
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
