How to Programme
NOTE
Parameter copy is not possible with Numeric Local Control
Panel (LCP101).
Select one of the following modes:
Status Mode: Displays the status of the frequency converter
or the motor.
If an alarm occurs, the NLCP automatically switches to status
mode.
A number of alarms can be displayed.
Quick Set-up or Main Menu Mode: Display parameters and
parameter settings.
1
Status
2 Menu
OK
On
3
Warn.
Alarm
Hand
4 O
on

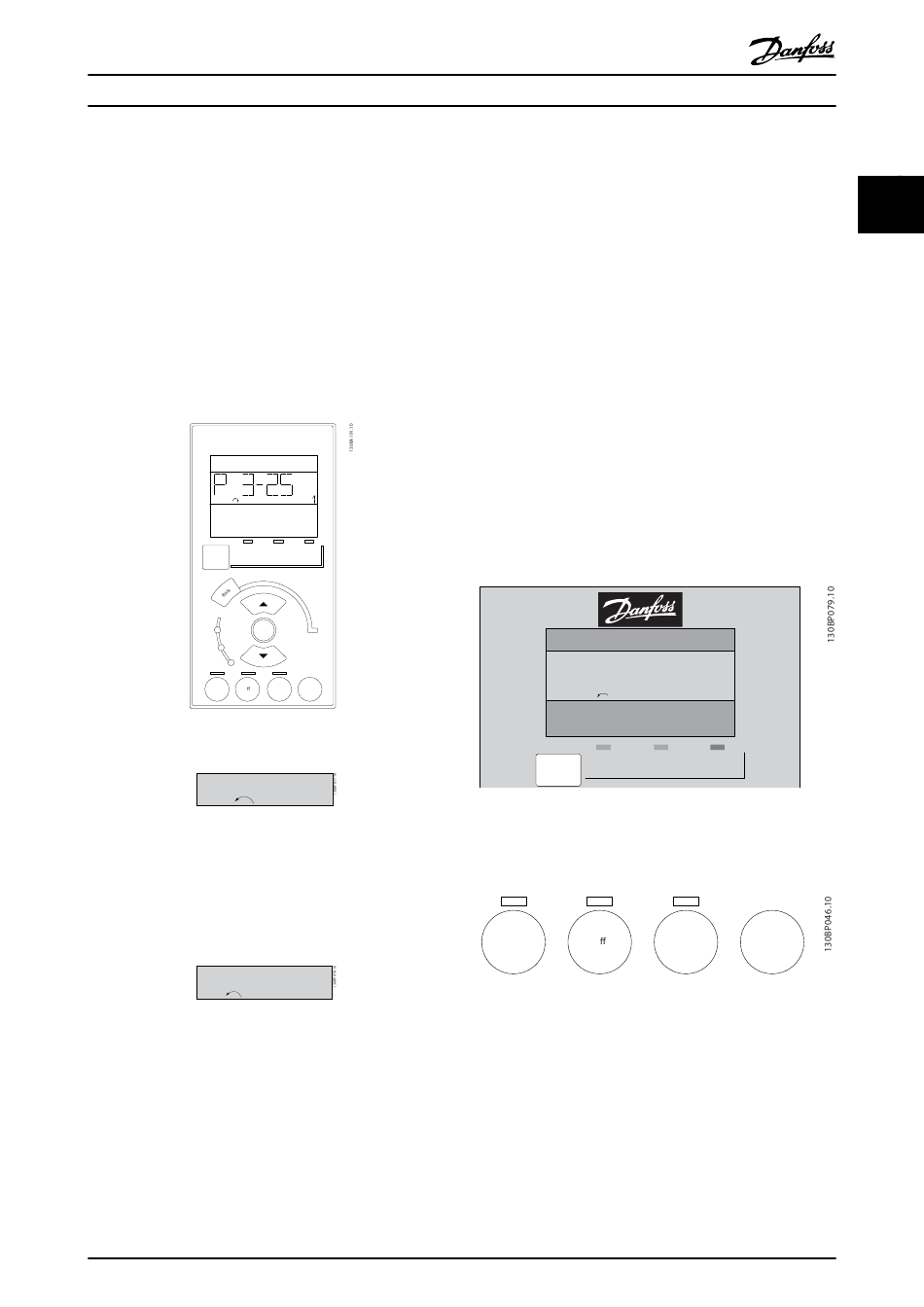

Illustration 2.1 Numerical LCP (NLCP)
22.8
Illustration 2.2 Status display example
Indicator lights (LEDs):
•
Green LED/On: Indicates if control section is on.
•
Yellow LED/Wrn.: Indicates a warning.
•
Flashing red LED/Alarm: Indicates an alarm.
A 17
Illustration 2.3 Alarm display example
Menu key
[Menu] Select one of the following modes:
•
Status
•
Quick Setup
•
Main Menu
®
VLT HVAC Drive Programming Guide
Setup
Quick Main
Setup Menu
Auto
Reset
on
rpm
Setup 1
Setup 1
®
MG.11.CB.02 - VLT is a registered Danfoss trademark
Main Menu is used for programming all parameters.
The parameters can be accessed immediately unless a
password has been created via 0-60 Main Menu Password,
0-61 Access to Main Menu w/o Password, 0-65 Personal Menu
Password or 0-66 Access to Personal Menu w/o Password.
Quick Setup is used to set up the frequency converter using
only the most essential parameters.
The parameter values can be changed using the up/down
arrows when the value is flashing.
Select Main Menu by pressing the [Menu] key a number of
times until the Main Menu LED is lit.
Select the parameter group [xx-__] and press [OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter select the array
number and press [OK]
Select the wanted data value and press [OK]
Navigation Keys [Back] for stepping backwards
▼ ▲
Arrow [ ] [ ] keys are used for manoeuvring between
parameter groups, parameters and within parameters.
[OK] is used for choosing a parameter marked by the cursor
and for enabling the change of a parameter.
P 2-03
S ta tus Q uick
M enu
S etup
Operation Keys
Keys for local control are found at the bottom of the control
panel.
Hand
O
on
Illustration 2.4 Operation keys of the numerical CP (NLCP)
[Hand on] enables control of the frequency converter via the
LCP. [Hand on] also starts the motor and it is now possible to
enter the motor speed data by means of the arrow keys. The
key can be selected as Enable [1] or Disable [0] via 0-40 [Hand
on] Key on LCP.
External stop signals activated by means of control signals or
a serial bus will override a 'start' command via the LCP.
S etup 1
M ain
M enu
Auto
Reset
on
15
2 2
