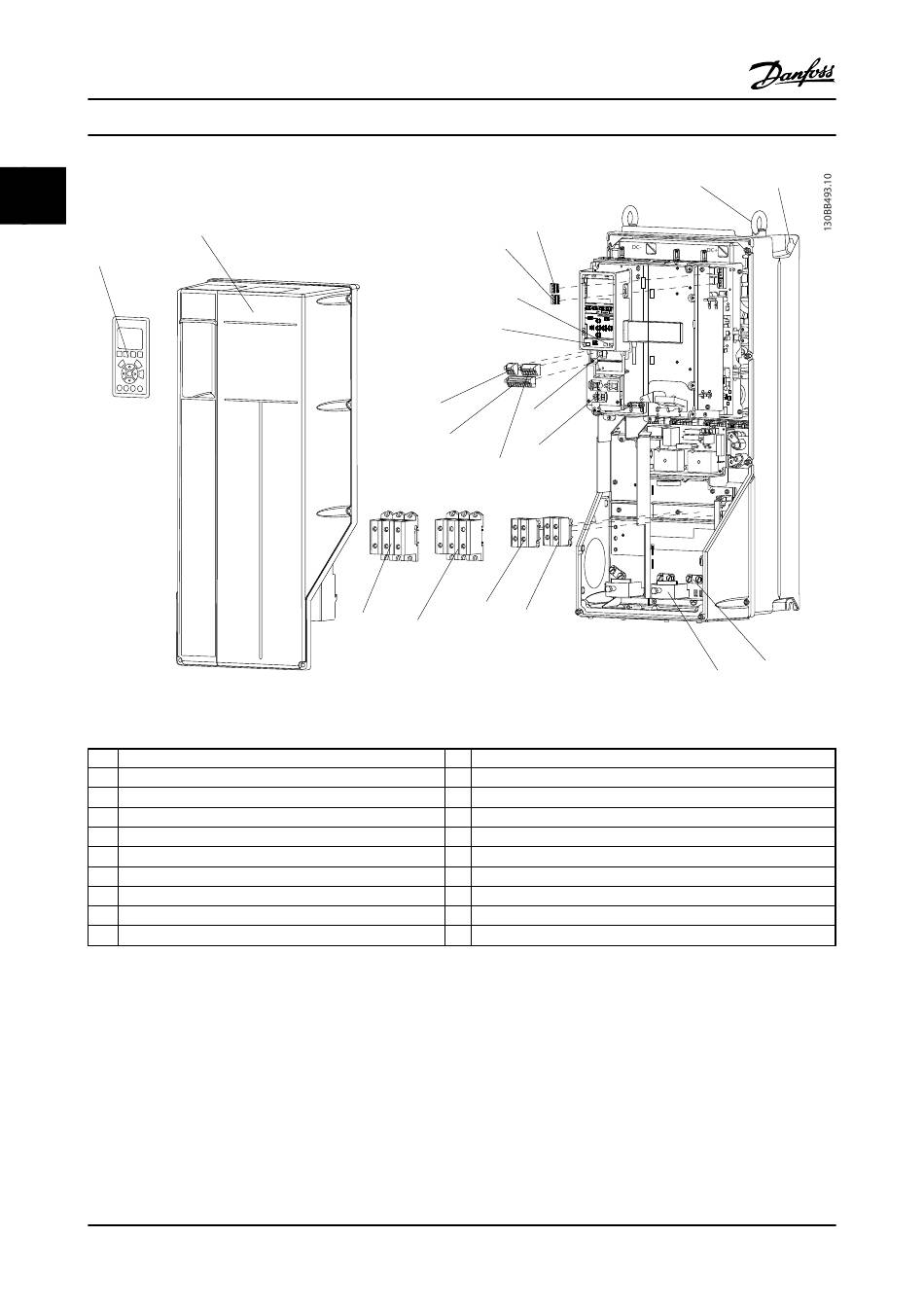

Figure 1.2 Exploded View B and C Sizes, IP55/66
1 LCP
2 Cover
3 RS-485 serial bus connector
4 Digital I/O and 24 V power supply
5 Analog I/O connector
6 Cable strain relief/PE ground
7 USB connector
8 Serial bus terminal switch
9 Analog switches (A53), (A54)
10 Relay 1 (01, 02, 03)
Table 1.2

1.1 Purpose of the Manual

This manual is intended to provide detailed information for
the installation and start-up of the adjustable frequency
drive. provides requirements for mechanical and electrical
installation, including input, motor, control and serial
communications wiring, and control terminal functions.
provides detailed procedures for start-up, basic operational
programming, and functional testing. The remaining
1-2
VLT
Manual
2
19
MG33AL22 - VLT
® AutomationDrive Instruction
11
10
9
8
61 68 39 42 50 53 54
3
7
4
6
5
17
16
18
11 Relay 2 (04, 05, 06)
12 Lifting ring
13 Mounting slot
14 Grounding clamp (PE)
15 Cable strain relief/PE ground
16 Brake terminal (-81, +82)
17 Load sharing terminal (DC bus) (-88, +89)
18 Motor output terminals 96 (U), 97 (V), 98 (W)
19 Line power input terminals 91 (L1), 92 (L2), 93 (L3)
chapters provide supplementary details. These details
include user interface, detailed programming, application
examples, start-up troubleshooting, and specifications.
®
