When machines are shipped with an applicator installed, an attached package will contain an envelope with crimped
NOTE
product samples which will be to the customer's specifications. These samples should be used as a comparison. All
significant test results are recorded on the applicator parts list, included in the envelope, and were made under power.
i
Examination of the complete machine for evidence of loose screws, bolts, and other components is
recommended, after which it should be securely bolted to the bench to prevent movement during operation.
Perform several test cycles under power using the procedure specified for production operation in 
Paragraph 4.2.
Hoist Hook

4. OPERATION

The machine is easy to operate, providing it is properly adjusted (see Section 7) and the applicator is also
properly adjusted (see applicable instruction sheet).
BEFORE connecting the machine to electrical power, and to the air supply, hand-cycle it to check for proper alignment of
CAUTION
tooling to prevent possible damage.
!

4.1. Hand Cycling

(Figure 9)
MAKE SURE main switch is "off" and electrical plug is disconnected, unless otherwise specified.
CAUTION
!
To avoid personal injury, ALWAYS disconnect electrical and air supply before removing flywheel guard.
DANGER
STOP
1. Open flywheel guard to gain access to transmission and flywheel.
2. Manually close solenoid by raising stop bar. This will allow clutch dog to engage in drive plate on flywheel
during rotation.
3. By hand, slowly turn flywheel in the direction of the arrow as shown in Figure 9 (clockwise, as viewed from
the rear of the machine).
DO NOT ATTEMPT to turn flywheel backward (counterclockwise), since this may damage or jam the applicator.
CAUTION
!
Rev Z

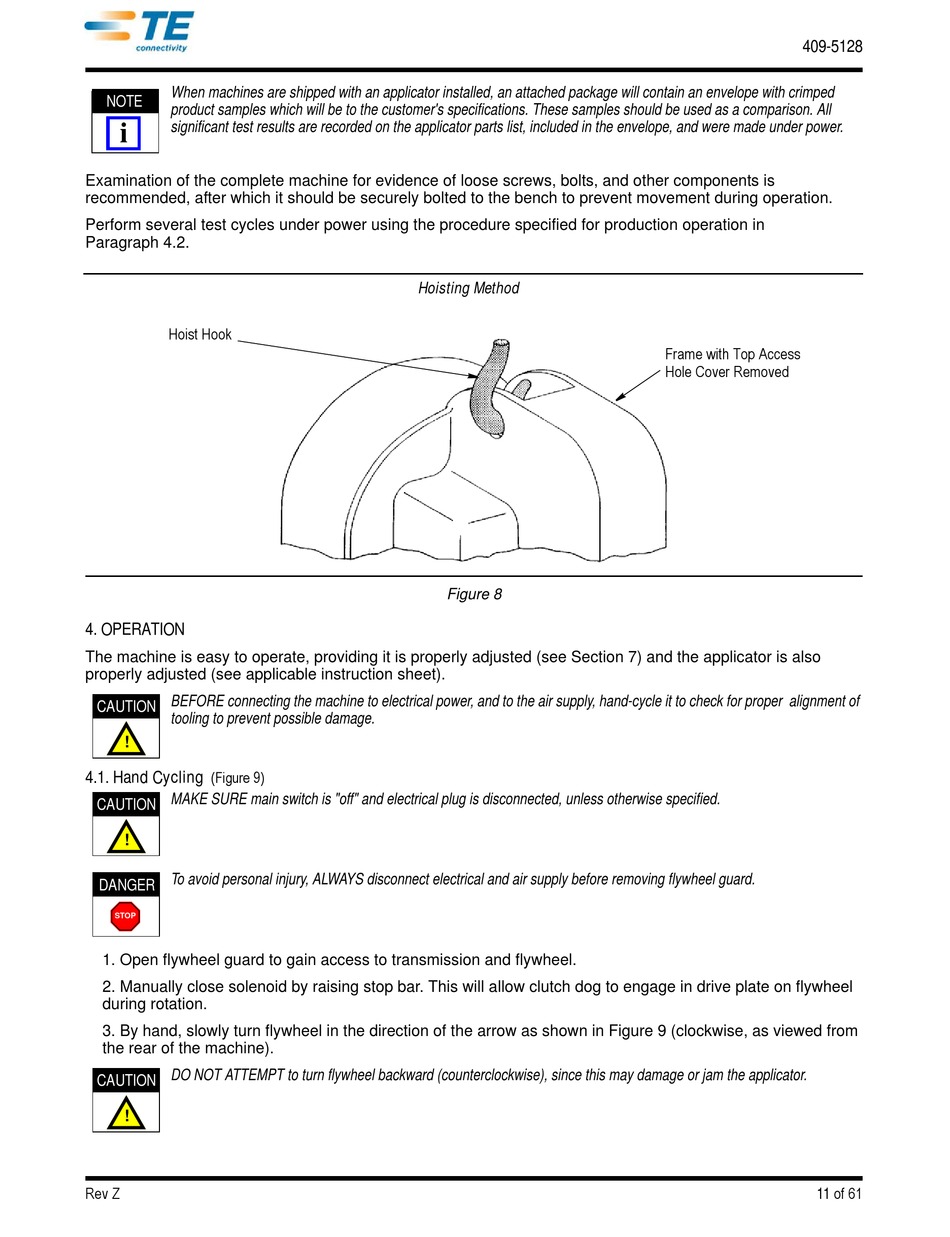

Hoisting Method
Figure 8
409-5128
Frame with Top Access
Hole Cover Removed
