4. As the machine ram nears the bottom of the stroke, closely observe tooling for proper alignment. If

misalignment is evident, STOP rotation of flywheel and determine cause. If adjustment to machine is required,

see Section 7. If adjustments to the applicator are required, refer to the appropriate instruction sheet. If

machine is for a special application, see the appropriate customer manual.

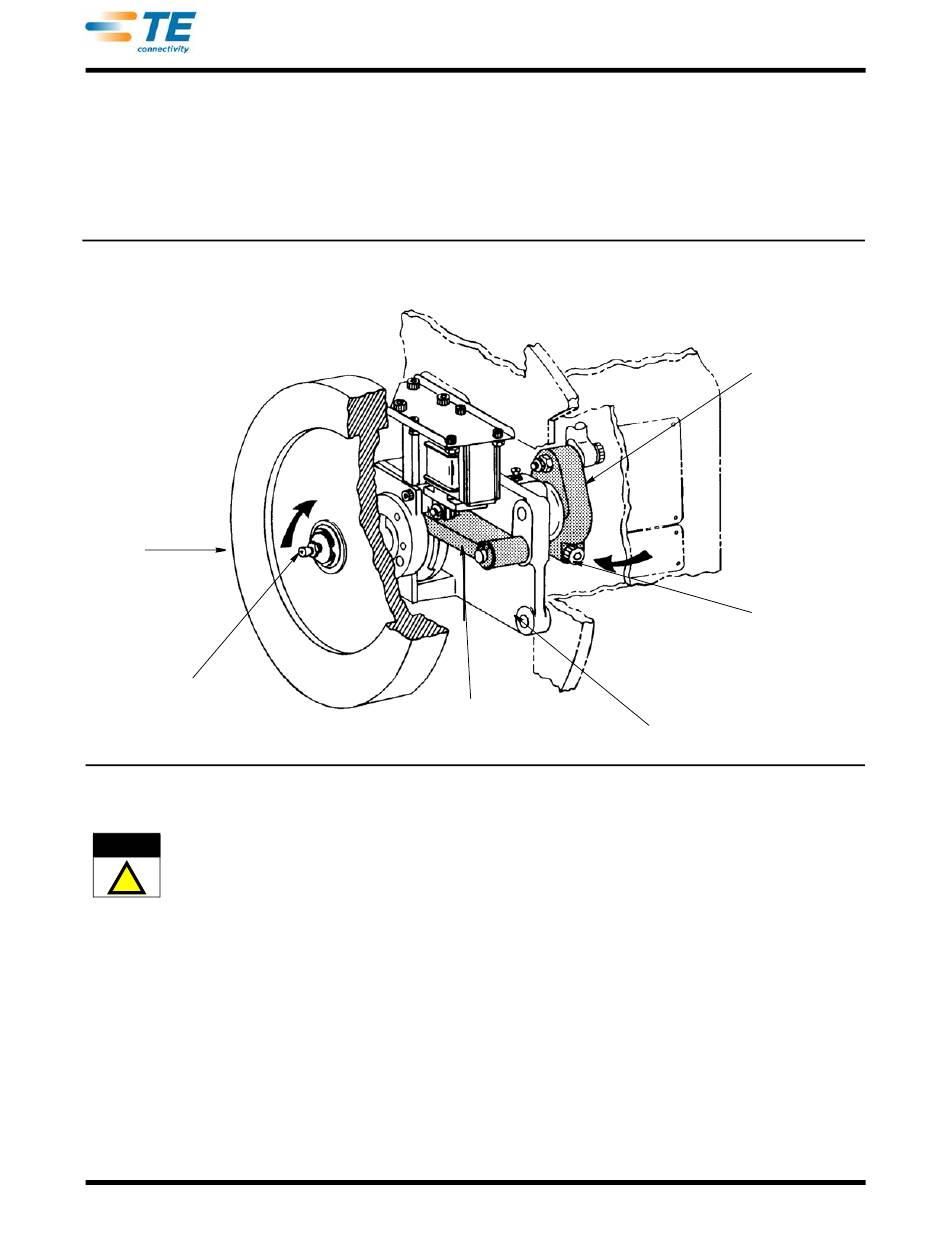

5. To reset the machine, use a 7/16-in. wrench to turn the grease fitting on the end of the crankshaft in the

direction of the arrow as shown in Figure 9. Use a crescent wrench or 7/16-in. box end wrench to turn the

grease fitting on the flywheel in the direction of the arrow also shown in Figure 9.

Flywheel

Grease Fitting on

End of Crankshaft

4.2. Production Operation

Operation of the machine may vary slightly depending on the application for which it is used. Should procedures

CAUTION

contained in the instructions for the applicator or other customer manuals differ from the following procedure, they shall

take precedence over this manual.

1. Connect electrical plug to an outlet with separate ground connection. If an air supply is used, make

connection.

2. Make sure machine is at TOP-DEAD-CENTER, and then move main switch (S2) to ON. Motor will start and

run continuously.

3. Perform several test cycles to check machine for proper operation. Each cycle is accomplished by

depressing the foot switch, and then releasing it before another cycle can be performed.

4. Perform production operation in the same manner as described in Step 3. Take periodic inspection samples

to ensure proper crimping of terminals.

5. At end of production operation, move main switch to OFF, and turn air supply OFF (if applicable).

Disconnect electrical plug.
