11. MODIFIED MACHINES

Modified Model "K" machines presented in this section are factory-prepared units that consist of a basic machine
(as covered in Sections 1 through 9) plus one or more of the accessories described in Section 10. Each different
type of modified machine has its own part number which distinguishes it from the other factory-modified versions
and from the basic machine.
A modified machine is not a complete, production-ready unit. Rather, it is a basic power unit, set up to accept a
given type of applicator. An applicator parts list is supplied with each applicator used in these Model "K"
machines, and this list includes the part number that identifies the modified configuration that the applicator
requires.
If a modified machine in the customer's plant carries the part number for the basic machine, or if the modified
configuration does not agree with the modified machine part number on the nameplate, this indicates that the
machine has been changed (at least once) since it left the factory. These changes could have involved the
accessories covered in Section 10 or the available conversion kits.

11.1. Machine 565435-5 and 565435-2

These machines accepts both end-feed and side-feed miniature quick-change applicators. Information
contained in Sections 1 through 9 for the basic machine is applicable to these machines with one exception.
Beginning with machine revision "AD," an adjustable UNIBAL assembly (813725-1) replaces the spherical
bearing link (Item 19, Figure 20).
Components and parts added to the basic machine, prior to revision "AD," include a base mount and plate, ram,
side-feed and end-feed guards, and left strip guide as listed in 408-8022. Beginning with revision "AD," the base
mount and plate have been replaced with a solid base assembly (812286-1) as shown in Figure 33, and the
machine frame has been modified. All other parts remain the same as listed in 408-8022.
No machines in the field can be converted to the solid base assembly, nor can a machine shipped from the factory with a
NOTE
solid base assembly be converted to another configuration.
i
End-Feed
Side-Feed
Rev Z
(Figure 33)
Machine 565435-5

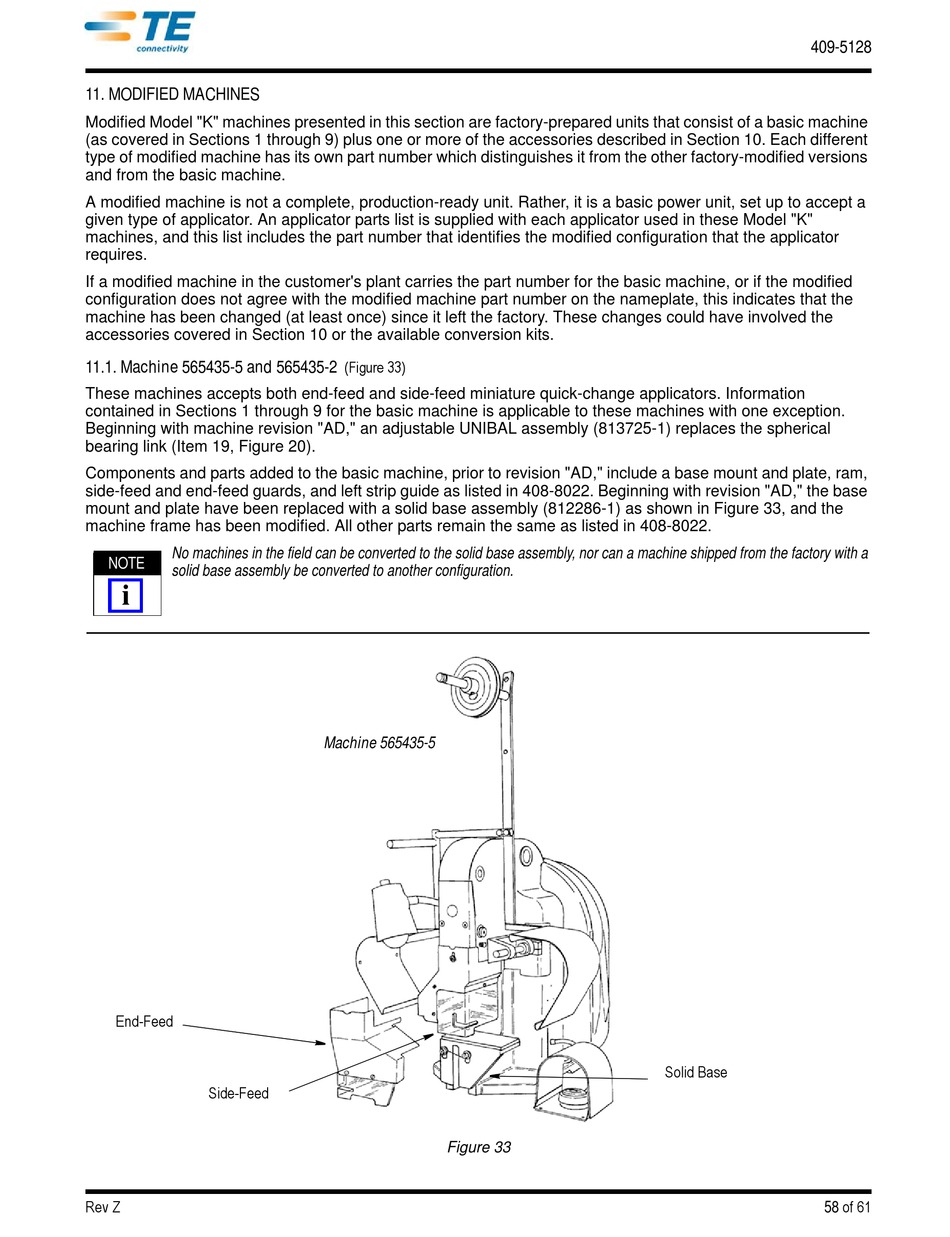

Figure 33

Solid Base
409-5128
