Fiber
Slide

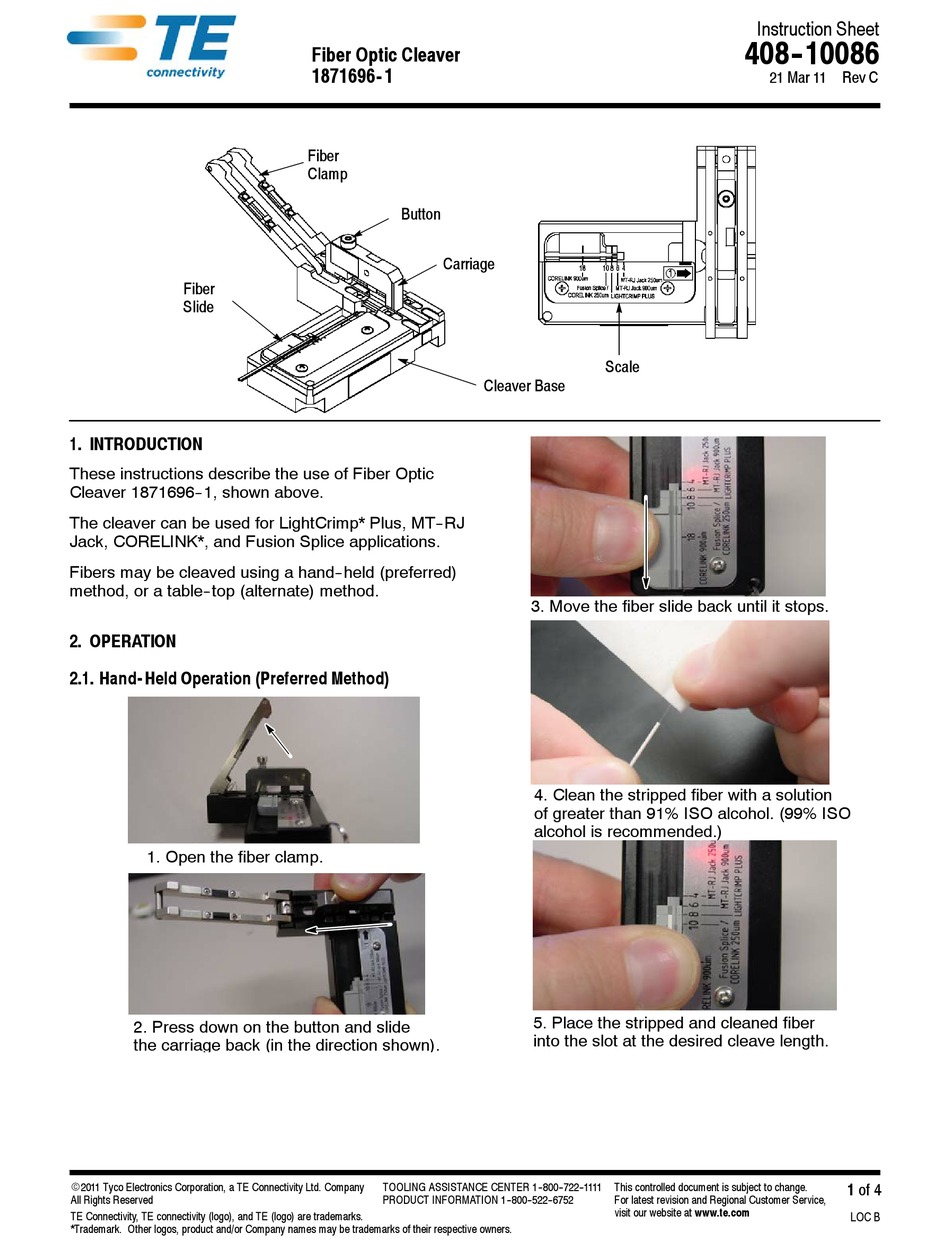

1. INTRODUCTION
These instructions describe the use of Fiber Optic
Cleaver 1871696--1, shown above.
The cleaver can be used for LightCrimp* Plus, MT--RJ
Jack, CORELINK*, and Fusion Splice applications.
Fibers may be cleaved using a hand--held (preferred)
method, or a table--top (alternate) method.
2. OPERATION
2.1. Hand- Held Operation (Preferred Method)
1. Open the fiber clamp.
2. Press down on the button and slide
the carriage back (in the direction shown).
E2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks.
*Trademark. Other logos, product and/or Company names may be trademarks of their respective owners.

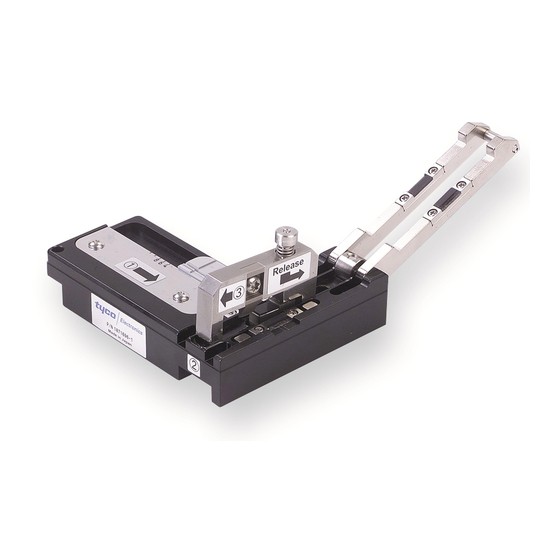

Fiber Optic Cleaver
1871696- 1
Fiber
Clamp
Button
Carriage
Cleaver Base
TOOLING ASSISTANCE CENTER 1--800--722--1111
PRODUCT INFORMATION 1--800--522--6752
Scale
3. Move the fiber slide back until it stops.
4. Clean the stripped fiber with a solution
of greater than 91% ISO alcohol. (99% ISO
alcohol is recommended.)
5. Place the stripped and cleaned fiber
into the slot at the desired cleave length.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408- - 10086
21 Mar 11 Rev C
1 of 4
LOC B
Advertisement
Related Manuals for TE Connectivity 1871696-1
Summary of Contents for TE Connectivity 1871696-1
- Page 1 PRODUCT INFORMATION 1--800--522--6752 For latest revision and Regional Customer Service, visit our website at www.te.com TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. LOC B *Trademark. Other logos, product and/or Company names may be trademarks of their respective owners.
- Page 2 408- 10086 6. While maintaining firm pressure on the buffer, move the fiber slide forward until it stops. 10. Move the fiber slide back. 7. Close the fiber clamp. 11. Remove the fiber, which is now cleaved to the proper length. 8.
- Page 3 408- 10086 2. Open the fiber clamp. 6. Place the stripped and cleaned fiber into the slot at the desired cleave length. 3. Press down on the button and slide the carriage back (in the direction shown). 7. While maintaining firm pressure on the buffer, move the fiber slide forward until it stops.
- Page 4 408- 10086 Do NOT touch the button while sliding the carriage. 13. Remove and properly dispose of the scrap fiber. 3. REVISION SUMMARY Since the previous release, the following changes have been made to this document: Updated document to corporate requirements. 10.
