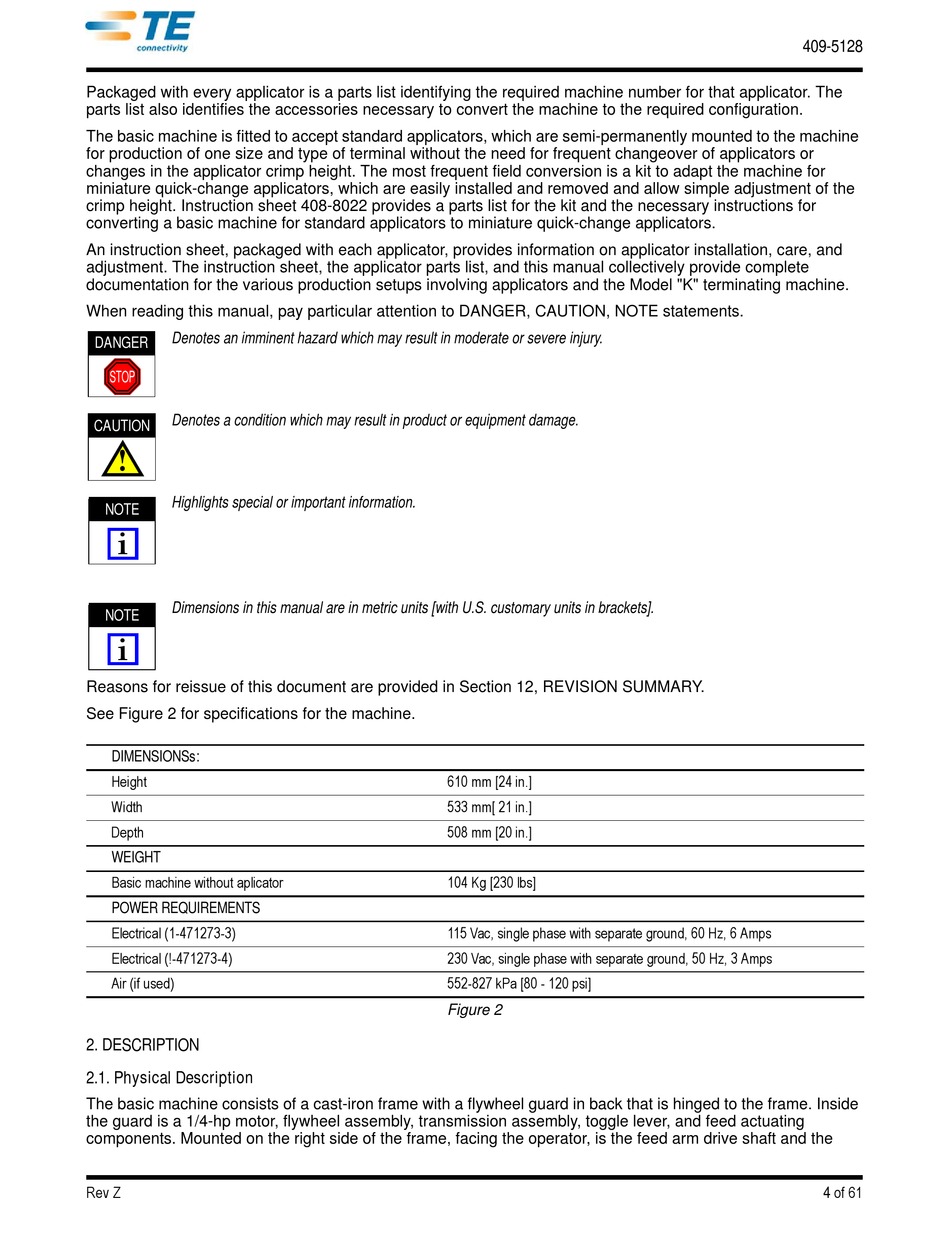

Packaged with every applicator is a parts list identifying the required machine number for that applicator. The
parts list also identifies the accessories necessary to convert the machine to the required configuration.
The basic machine is fitted to accept standard applicators, which are semi-permanently mounted to the machine
for production of one size and type of terminal without the need for frequent changeover of applicators or
changes in the applicator crimp height. The most frequent field conversion is a kit to adapt the machine for
miniature quick-change applicators, which are easily installed and removed and allow simple adjustment of the
crimp height. Instruction sheet 408-8022 provides a parts list for the kit and the necessary instructions for
converting a basic machine for standard applicators to miniature quick-change applicators.
An instruction sheet, packaged with each applicator, provides information on applicator installation, care, and
adjustment. The instruction sheet, the applicator parts list, and this manual collectively provide complete
documentation for the various production setups involving applicators and the Model "K" terminating machine.
When reading this manual, pay particular attention to DANGER, CAUTION, NOTE statements.
Denotes an imminent hazard which may result in moderate or severe injury.
DANGER


STOP
Denotes a condition which may result in product or equipment damage.
CAUTION


!
Highlights special or important information.
NOTE


i
Dimensions in this manual are in metric units [with U.S. customary units in brackets].
NOTE


i
Reasons for reissue of this document are provided in Section 12, REVISION SUMMARY.
See Figure 2 for specifications for the machine.
DIMENSIONSs:
Height
Width
Depth
WEIGHT
Basic machine without aplicator
POWER REQUIREMENTS
Electrical (1-471273-3)
Electrical (!-471273-4)
Air (if used)
2. DESCRIPTION

2.1. Physical Description

The basic machine consists of a cast-iron frame with a flywheel guard in back that is hinged to the frame. Inside
the guard is a 1/4-hp motor, flywheel assembly, transmission assembly, toggle lever, and feed actuating
components. Mounted on the right side of the frame, facing the operator, is the feed arm drive shaft and the
Rev Z


610 mm [24 in.]
533 mm[ 21 in.]
508 mm [20 in.]
104 Kg [230 lbs]
115 Vac, single phase with separate ground, 60 Hz, 6 Amps
230 Vac, single phase with separate ground, 50 Hz, 3 Amps
552-827 kPa [80 - 120 psi]
Figure 2


409-5128
4 of 61
