Introduction
Door opening from any extension
Programmable day and night destinations
Two different operation modes, standard/speed-dial
High quality speaker phone with volume control
Outdoor or indoor installation
Work in conjunction with card readers and security
devices
Simple to operate and program
Smart looking durable design
1.3.2

Physical Description

Speaker
Keypad
Cancel
button
The front panel of the Pancode unit incorporates a speaker,
microphone, and keypad. The front panel is attached to the
wall using a bracket and screws.
The Pancode unit is a hardwired unit powered by an external
12V AC transformer, which is provided in the package.
Optionally, you may use a 12-24V DC adapter (For outdoor
unit only.).
PanCam/Pantel/Pancode Installation and Programming Manual
Indoor Unit

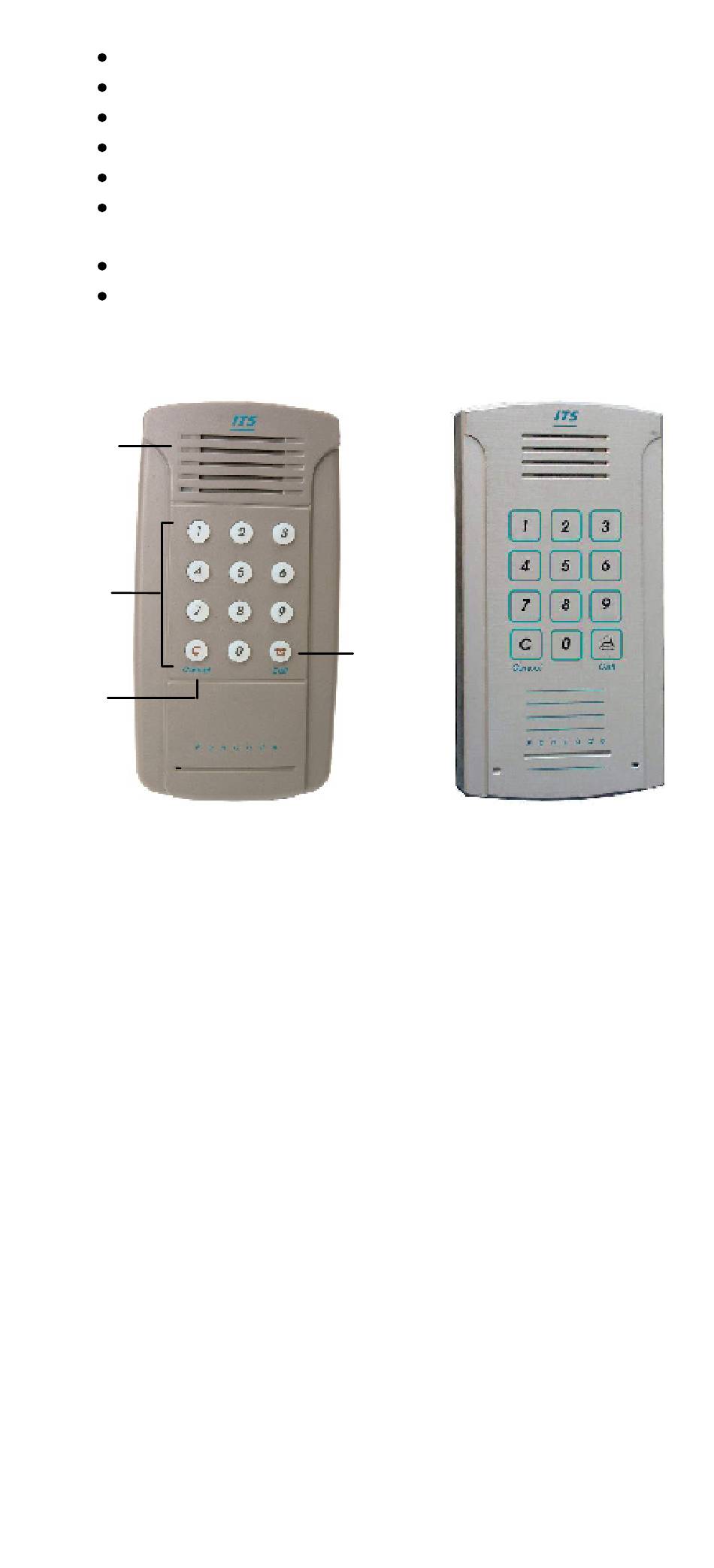

Figure 1-3. Pancode Front Panel
Call
button
Outdoor Unit
5
