For this type of installation, the access-control device "N.O."
output wires are connected to the Pantel/Pancode Switch
terminals (see Figure 2-5.)
Pancode/
Pantel

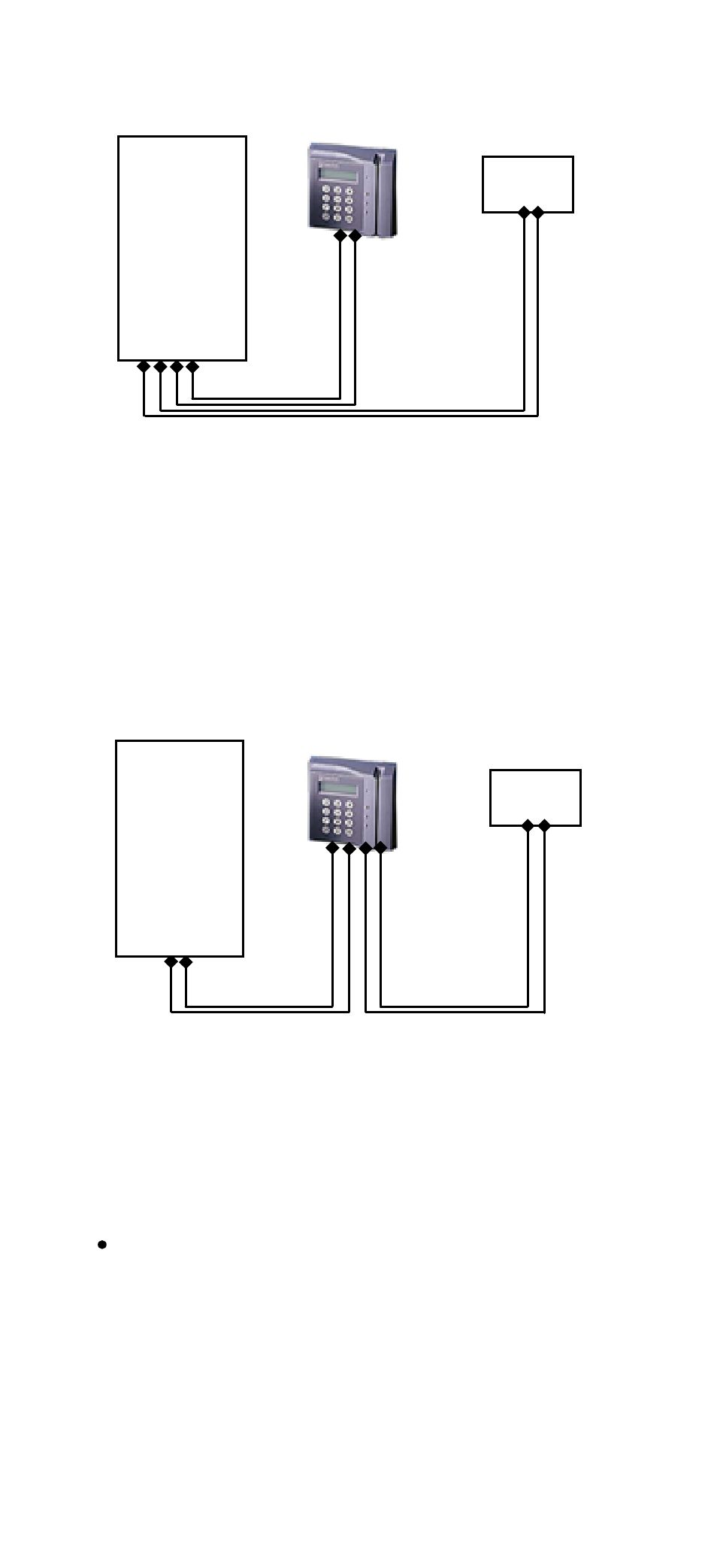

Figure 2-5. Pantel/Pancode – Controlling Lock Relay
2.2.2 Adding Pantel/Pancode to an Access Control
Device
The access-control device opens the door when the
Pantel/Pancode triggers the access-control device.
For this installation, the access-control device bypass
"Switch" wires are connected to the "N.O." and "CMN"
terminals of the Pantel/Pancode. The door-lock relay wires are
connected to the access-control device (see Figure 2-6.)
Pancode/
Pantel
Figure 2-6. Access Control - Controlling Lock Relay
2.3

Connection Schematic

The Pantel/Pancode offers multiple wiring options.
Option 1: For use with an external device, which
requires the Pancode to be set up as "Normally
Closed"
10 PanCam/Pantel/Pancode Installation and Programming Manual
Switch
N.O. and
CMN
Lock
Relay
N.O.
Output
Installation
Lock
Relay
