Summary of Contents for ITS Telecom PanCam-C
- Page 1 ACCESS CONTROL DOOR PHONES Installation and Programming Manual PanCam-C PanCam-T Pantel Pancode...
- Page 2 PanCam-C PanCam-T Pantel Pancode Installation and Programming Manual Release 3, May 2003...
- Page 3 NOTICE This manual describes the PanCam/Pantel/Pancode Access Control Door Phones system. Additional copies of this manual may be obtained from ITS . No part of this document may be reproduced or transmitted in any form, by any means (electronic, photocopying, recording, or otherwise) without the prior written permission of ITS.
-
Page 4: Table Of Contents
Adjacent Access Control Device ....12 Connection Schematic........14 Volume Control..........14 Programming ..........15 Day/Night Mode Selection......15 Entering Programming Mode......15 Resetting the PanCam/Pantel/Pancode ..16 PanCam-T/Pantel Setup and Operation ..16 PanCam-C/Pancode Setup ......18 Entering Special DTMF Characters ....23 Specifications..........25 General Specifications ........25 Camera Specifications........26 Comparison Table ........29... -
Page 5: Introduction
PBX or a Key Telephone System, with an internal black & white or color high-quality pinhole camera encased within the unit. Both, PanCam-C and T are vandal and weather resistant, suitable for outdoor installation. General Features... - Page 6 Introduction • Programmable day and night destinations • Two different operation modes, standard/speed-dial • High quality speaker phone with volume control • Entry access code • Works in conjunction with card readers and security devices • Simple to operate and program •...

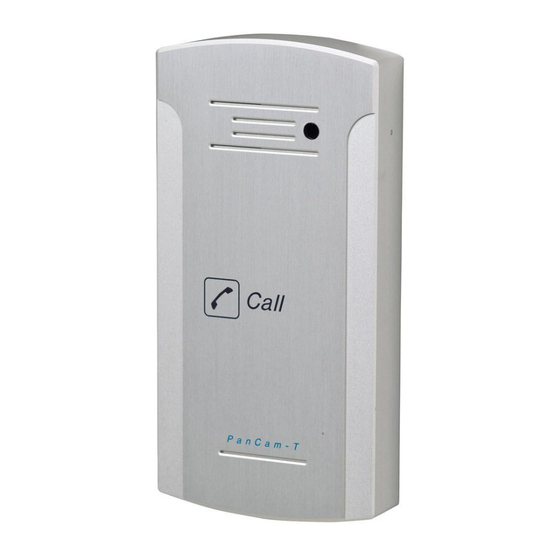

- Page 7 The front panel of the PanCam-T unit incorporates a speaker and a Call button. The microphone can be found at the bottom of the unit. The PanCam-C unit also features a keypad. The front panel is attached to the wall using a bracket and screws.
-
Page 8: Pantel
Introduction Pantel The Pantel is a wall mounted access control door phone, which is connected to an analog port of a PBX or a Key Telephone System. The Pantel is compatible with most known telephone systems and PBX types. With the press of a button, the Pantel dials a pre-defined extension number of up to 20 digits, allowing a conversation to take place and then enables the dialed party to open the door for the caller by pressing touch tone digit(s). - Page 9 Introduction Physical Description Speaker Call button Microphone Indoor Unit Outdoor Unit Figure 1-2. Pantel Front Panel The front panel of the Pantel unit incorporates a speaker and a Call button. The microphone can be found at the bottom of the unit.
-
Page 10: Pancode
Introduction Pancode The Pancode is a smart wall mounted access control door phone that is connected to an analog port of a PBX or a Key Telephone System, allowing door entry control. The Pancode is available in either an aluminum unit for outdoor installation, which is weather and vandal resistant, or a plastic unit for indoor installation. - Page 11 Introduction Physical Description Speaker Keypad Call button Cancel button Indoor Unit Outdoor Unit Figure 1-3. Pancode Front Panel The front panel of the Pancode unit incorporates a speaker and a keypad. The microphone can be found at the bottom of the unit.
- Page 12 Introduction 8 PanCam/Pantel/Pancode Installation and Programming Manual...
-
Page 13: Installation
Installation The PanCam/Pantel/Pancode is mounted to the installation bracket provided; this mounting bracket should be installed with the arms of the bracket positioned at the bottom. Outdoor Unit Bracket Indoor Unit Bracket Figure 2-1. Installation brackets To Install the PanCam/Pantel/Pancode wall bracket Measure and mark the location on the wall where the holes will be drilled for the mounting bracket. - Page 14 Installation Caution To avoid damage to the camera, make sure to connect the correct polarity to the connector (see Figure 2-2). Camera connector 12V DC +12V Figure 2-2. Camera connector PanCam Schematic setup The following pictures show the schematic setup of the PanCam unit.
- Page 15 Installation Installing the Pantel/Pancode The Pantel/Pancode can be installed as the individual access control or can be used with adjacent access-control devices, such as card reading devices. For more information on adjacent access-control device installation, see section 2.2, Adjacent Access Control Device. A 12V AC external power supply is included with the Pantel/Pancode unit.
-
Page 16: Adjacent Access Control Device
Installation The wiring connector is a screw connector type. In order to attach a wire you must insert the stripped end of the wire into the proper terminal and tighten the terminal screw. This will crimp the wire connection. Caution To avoid damage to the Pantel/Pancode, the power supply should be removed prior to connecting wires to the Pantel/Pancode unit. - Page 17 Installation Adding an Access Control Device to the Pantel/Pancode When activated, the access-control triggers the Pantel/Pancode “SW” terminal, which activates the door-lock relay and opens the door. For this type of installation, the access-control device “N.O.” output wires are connected to the Pantel/Pancode Switch terminals (see Figure 2-5.) Lock Relay...
-
Page 18: Connection Schematic
Installation Connection Schematic The Pantel/Pancode offers multiple wiring options. • Option 1: For use with an external device, which requires the Pancode to be set up as “Normally Closed” • Option 2: For use with an external device, which requires the Pancode to be set up as “Normally Open”... -
Page 19: Programming
Programming Programming can be done from any telephone or extension on the PBX, using keypad DTMF tones. The following programming functions are discussed in this section: • Day/Night Mode Selection • Entering Programming Mode • Resetting the PanCam/Pantel/Pancode Day/Night Mode Selection Day and Night mode specify which of the programmed destination numbers, Day or Night number, will be called when the... -
Page 20: Resetting The Pancam/Pantel/Pancode
Dial *151. A confirmation tone will be heard. Exit programming mode. To Reset the Unit in “speed dial” mode (only PanCam-C and Pancode) Enter programming mode (see section 3.2, Entering Programming Mode). Dial *152. A confirmation tone will be heard. - Page 21 Programming OPERATION COMMAND DEFAULT *For Pantel *371 + X + YYYY Indoor ONLY: where: Busy off/on time X = 1; off time setup 500 msec cadence setups for X = 2; on time setup 500 msec disconnecting the YYYY = Cadence in line when the steps of 20 milliseconds destination is busy...
-
Page 22: Pancam-C/Pancode Setup
Programming PanCam-C/Pancode Setup The PanCam-C/Pancode can work in two modes of operation: Standard and Speed-dial. In Standard mode, which is the default, the keypad requires direct dialing of extensions and numbers. In Speed-Dial mode, keys 1-9 can be assigned destination phone numbers. - Page 23 (Do Not use * or # as input to the prefix digit) PanCam-C/ Pancode begins To cancel this with these digits, operation, enter: the PanCam-C/ *170 + # Pancode will process them as extension dialing Digit(s) to open *441 +XXXX + # the door from any...
- Page 24 Programming access password password must be four numeric digits. Allowable characters are 0 through 9. Do not use the * or # keys. *For PanCam-C *620 + X ONLY X = 0 camera off Camera X = 1 camera on instructions...
- Page 25 Programming Speed-Dial Setup The following table contains programming functions, which can be accessed in the programming mode for Speed-Dial mode operation. PBX Parameter Commands OPERATION COMMAND DEFAULT Assigning a *120 + X + DN + # No default Speed-dial X = a digit 1 through 9 destination DN = Destination number.
- Page 26 Programming OPERATION COMMAND DEFAULT Delete a *360 + X + # destination where: number assigned X = 1 Day to Day, Night, or X = 2 Night Error DNs. This X = 3 Error command must be entered separately for each X value Defining the *441 + XXXX + # digit(s) to open...
-
Page 27: Entering Special Dtmf Characters
Programming OPERATION COMMAND DEFAULT *For PanCam-C *620 + X Camera X = 0 camera off instructions X = 1 camera on X = 2 camera powered when call button is pressed X = 3 powered by any touch on unit keypad Entering Special DTMF Characters Special characters can be entered using the keypad. - Page 28 Programming 24 PanCam/Pantel/Pancode Installation and Programming Manual...
-
Page 29: Specifications
Specifications General Specifications Power Supply (External) 12V AC@1.6A (supplied with unit) 12-24V DC@1.6A (optional) Line Voltage 24-72V DC < 10 µA DC Leakage On-Hook Insulation 0-100V DC > 5MΩ (Resistance Between Line 100-200 V DC > 30 KΩ Terminal and Ground) 500V AC/50Hz >... -
Page 30: Camera Specifications
Specifications Camera Specifications Black and White Camera Model no. MK-03261C TV System EIA/CCIR Image Sensor Device 1/3” interline transfer CCD Image Sensor Area 4.8mm x 3.6mm Horizontal Frequency 15.625KHz Vertical Frequency 50Hz Total Pixels 542(H) x 582(V) Scanning System 625 lines, 50 fields/sec CCIR Resolution 420 TVL horizontal Minimum Illumination... - Page 31 Specifications Color Camera Model no. MTV-54KOPI TV System PAL/NTSC Image Sensor ¼-inch CCD Image Sensor CCD Total Pixels 542(H) x 586(V) SYNC System Internal Minimum Illumination 0.5 Lux F1.2 5600°K Resolution 380 TVL/470 TVL (Enhanced) S/N Ratio 52dB (MIN)/60dB(TYP) (AGC OFF) White Balance ATW/AWB/FIX (Zero color rolling)
- Page 32 Specifications 28 PanCam/Pantel/Pancode Installation and Programming Manual...
-
Page 33: Comparison Table
Comparison Table PanCam Pancode Pantel PanCam-C PanCam-T Outdoor Indoor Outdoor Indoor Installation Outdoor Outdoor Outdoor Indoor Outdoor Indoor Case Type Aluminum Aluminum Aluminum Plastic Aluminum Plastic Entry Access Code Internal Door Opening Code from Any Extension Day/Night Mode Direct Dialing to any... - Page 34 29 Hametzuda Street 58001 Azur, Israel Tel: +972-3-5576866 Fax: +972-3-5576942 www.its-tel.com Eits@its-tel.com...
