- Page 1 USER MANUAL KIT HOME WIFI 322004 Single-family video intercom kit V.1.2 ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
-
Page 2: Table Of Contents
HOME WIFI KIT USER MANUAL INDEX 1- Product Description ........................................4 1.1 General characteristics ................................4 2- Elements of the HOME WIFI KIT Video Door Entry ....................... 5 2.1 PE 1BM Outer Plate ..................................5 2.2 PFA 2420 Power Supply ................................5 2.3 MON 43W Monitor .................................. - Page 3 HOME WIFI KIT USER MANUAL 5.4.2 Automatic opening hours ................................15 5.5 Door Settings ........................................15 5.5.1 Enable Unanswered Mailbox ................................ 15 5.5.2 Sound settings ......................................16 5.6 Cameras ..........................................16 5.7 Connection ......................................... 16 5.8 Advanced..........................................17 5.9 Mode Selection ....................................... 17 6–...
-
Page 4: 1- Product Description
HOME WIFI KIT USER MANUAL 1- Product Description KIT HOME is a non-polarized two-wire video door entry solution for single-family homes. 1.1 General characteristics • Two-wire non-polarized system. • Stainless steel outer plate with high-quality colour image camera with auto-detection system for lack of brightness. -
Page 5: 2- Elements Of The Home Wifi Kit Video Door Entry

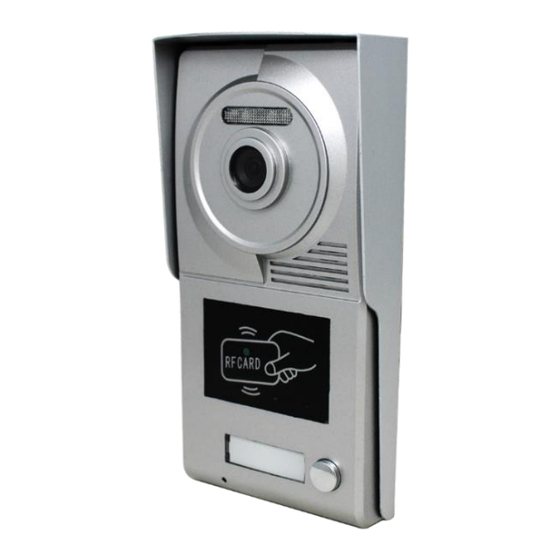

HOME WIFI KIT USER MANUAL 2- Elements of the HOME WIFI KIT Video Door Entry 2.1 PE 1BM Outer Plate Entrance panel with high image quality camera and dim auto-detection system. It has a housing push button and Mifare RFID access control system. The PE 1BM plate is integrated into an aluminium protective visor, with an anti-loss screw system to be installed on the surface. -
Page 6: Extra Accessories
HOME WIFI KIT USER MANUAL 2.4 Extra accessories 1x Mifare Configuration Master Wrench. 4x Screws and plugs for fastening PE 1BM entrance plate. 1x Allen Key. 1x Connector. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·... -
Page 7: 3- Electrical Diagram
HOME WIFI KIT USER MANUAL 3- Electrical diagram 3.1 Schematic with a monitor 3.2 Schematic with four monitors ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus... -
Page 8: 4- Pe 1Bm Configuration
HOME WIFI KIT USER MANUAL 4- PE 1BM Configuration 4.1 Configuring Dip Switches 4.1.1 Setting ID to PE 1BM Entrance Plate In case of installing several entrance panels in the system, these two dip switches must be configured correctly. The first door station must be set to 00, the second to 10, the third set to 01, and the fourth set to 11. -
Page 9: Door Opener Opening Time And Call Time
HOME WIFI KIT USER MANUAL 4.1.3 Door Opener Opening Time and Call Time Dip switches 4 and 5 are used for this configuration. 1 second (Default) 5 seconds 10 seconds 15 seconds 4.1.4 Additional Camera If it is required to use an additional camera in the installation, it is necessary to activate it on dip switch 6 (Note: only one additional camera can be used per entrance panel). -
Page 10: Types Of Jumper Configurations
HOME WIFI KIT USER MANUAL 4.3 Types of jumper configurations Power supply at 12V MAX 800mA (Relay in NW position) Continuous power supply at 12V MAX 800mA (Relay in NC position) Connection to external source (Relay in NC position) IMPORTANT: Maximum current 3.5A Connection to external source (Relay in NW position) IMPORTANT: Maximum current 3.5A... -
Page 11: Mifare Rfid Reader Configuration
HOME WIFI KIT USER MANUAL 4.4 Mifare RFID Reader Configuration Inside your KIT Home, you will find a Mifare RFID configuration master key. To add access keys, simply pass the master key and it will produce a first-read BEEP and then issue BEEP's indicating that it is in access card recording mode. -
Page 12: 5- Mon 43W Monitor
HOME WIFI KIT USER MANUAL 5- MON 43W Monitor 5.1 Navigation Pane 5.1.1 Main Panel Three icons are displayed on the main page. Notifications of unanswered calls, messages if you have received a call in your absence and a message has been left for you (it is necessary to activate the answering machine beforehand, Section 5.5.1). -
Page 13: Main Menu
HOME WIFI KIT USER MANUAL 5.1.2 Main Menu Visualize: To be able to visualize the different analog boards and cameras that are in your installation. Internal call: You will be able to make internal calls from video intercom to video intercom. Log: Log of calls, messages, and alarm notices. -
Page 14: Registration
HOME WIFI KIT USER MANUAL In the Display menu, you can view and manipulate the outer plates without prior marking. You will also be able to see the analog cameras installed, if any, in your facility. 5.3 Registration In the log menu, you can see if you had a call while you were away, unread messages, and alerts. 5.4 Settings 5.4.1 System On this screen you will be able to configure the basic settings of the MON 43W, such as device... -
Page 15: Automatic Opening Hours
HOME WIFI KIT USER MANUAL 5.4.2 Automatic opening hours To set an automatic opening time, select under Auto Unlock and change it to On. Please indicate the start and end time below. In the Week section, indicate which days you want to set the automatic unlock, being 1 Monday and 7 Sunday. -
Page 16: Sound Settings
HOME WIFI KIT USER MANUAL 5.5.2 Sound settings In Sound Settings you can configure 3 sound modes. In each mode you can select the ringtone, volume, and set them by schedule. Note: If you want to turn on a "Do Not Disturb" mode to prevent unwanted calls during the night, select a mode, set the time you want to be undisturbed, and set the volume to 0. -
Page 17: Advanced
HOME WIFI KIT USER MANUAL 5.8 Advanced In this menu you will have the factory settings, format the SD card, update the device and restart it. 5.9 Mode Selection The MON43W has three status modes. At home Standard configuration. Standard volume as set in the Sound Settings (Step 5.5.2). Vacation Standard configuration. -
Page 18: 6- Connect Mon 43W With The Ek Smart App
HOME WIFI KIT USER MANUAL 6– Connect MON 43W with the Ek Smart app 6.1 Download the Ek Smart App To download the app, go to the Play Store or Apple Store on your mobile device and search for "Ek Smart" or access it using the following QR code: Ek Smart 6.2 Enable pairing mode on the MON 43W To activate the pairing mode you need to activate the wifi mode of the MON 43W. -
Page 19: Add Mon 43W To The Ek Smart App
HOME WIFI KIT USER MANUAL 6.3 Add MON 43W to the Ek SMART app 6.3.1 Add Automatically Step 1: Step 2: It will start the device search automatically Tap "Add Device" to add the device Once you find the device, it will show you the device on the screen. Press "add" and it will launch the setup mode, WIFI connection and password will be required. -
Page 20: Adding Manually
HOME WIFI KIT USER MANUAL 6.3.2 Adding Manually If you want to add the device manually, you need to select the Video Door Entry Station, model MON43W category and follow the instructions that will appear on your mobile device. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés ·...
