Option 2: For use with an external device, which
requires the Pancode to be set up as "Normally
Open"
Option 3: For use with powered-unlocked-state lock
relay (most common)
Option 4: For use with powered-locked-state lock
relay
(recommended for safety purposes in an
emergency situation)

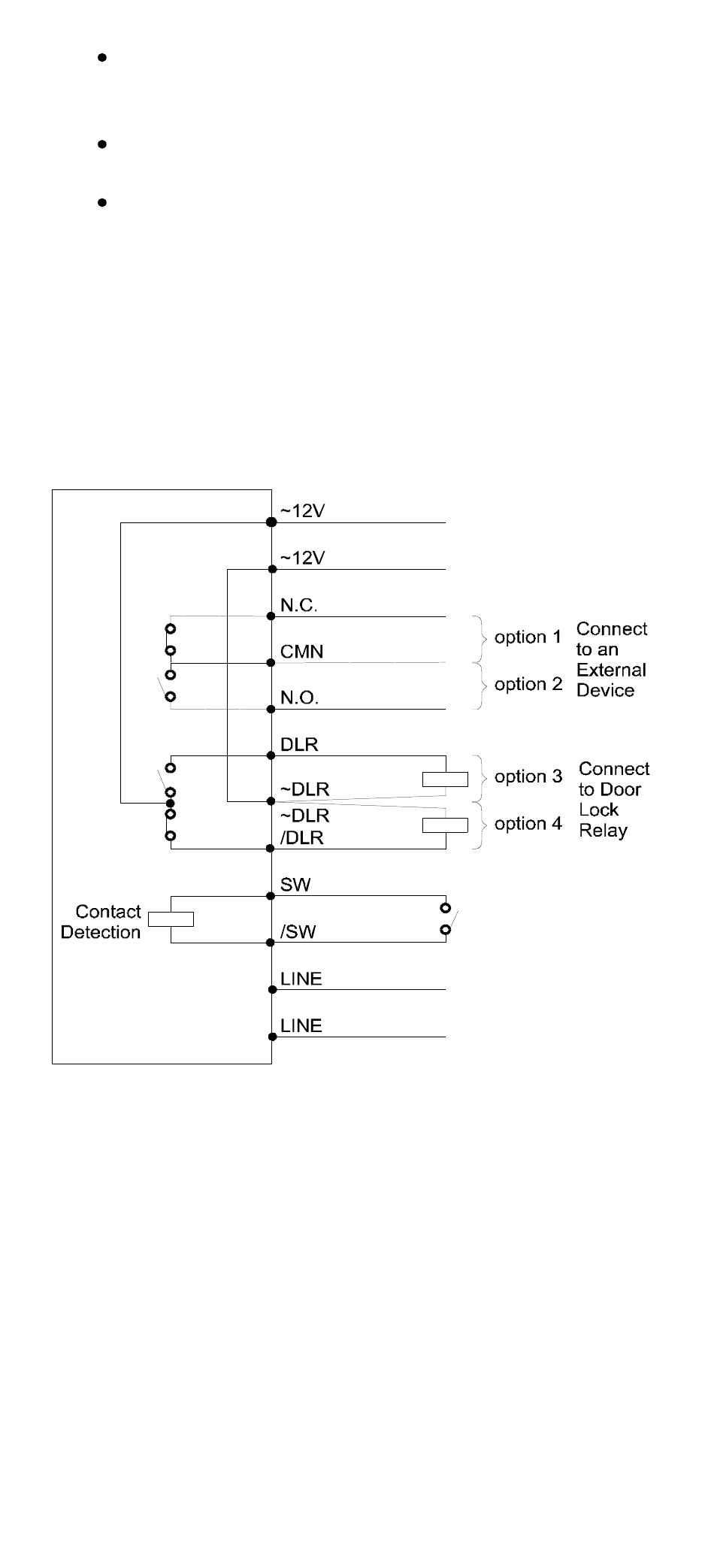

The following schematic diagram shows the wiring plan for
these four options.
PanCam/Pantel/Pancode
Circuit (PCB Side)
Figure 2-7. PanCam/Pantel/Pancode Wiring Schematics
2.4
Volume Control
The volume of the PanCam/Pantel/Pancode speaker can be
adjusted using the volume controller located on the unit's back
panel.
After installing the unit, test the volume. In case it is too
low/high, remove the unit from the mounting bracket and
adjust the volume using a small screwdriver.
PanCam/Pantel/Pancode Installation and Programming Manual
11
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the PanCam-C and is the answer not in the manual?
Questions and answers
תכנות קוד חדש
To program a new code for the ITS Telecom PanCam-C:
1. Dial the PanCam-C line/extension from any touch-tone telephone.
2. Wait until the PanCam-C answers and beeps.
3. Enter *900 to enter programming mode.
4. Enter the programming access password (default is 1234).
5. Enter *442 followed by the new access code (up to 4 numeric digits).
6. If the code is less than 4 digits, press # after the digits.
Notes:
- Only digits 0–9 are allowed.
- Do not use * or # in the code.
- The code cannot begin with the same digits as PBX extension numbers.
