ITS Telecom Pancode VoIP Installation And Programming Manual
Access control door phones
Hide thumbs
Also See for Pancode VoIP:
- Installation and programming manual (48 pages) ,
- Installation and programming manual (34 pages)
Related Manuals for ITS Telecom Pancode VoIP
Summary of Contents for ITS Telecom Pancode VoIP
- Page 1 Pancode VoIP Pantel VoIP Access Control Door Phones Installation and Programming Manual Version 2 Pre-Release 2 October 2007...
- Page 2 Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual NOTICE This publication refers to the PANCODE IP and Pantel IP Door Access Control devices, Release 2. Additional copies of this manual may be obtained from ITS Ltd. Reproduction of this manual or parts thereof without written permission from ITS is strictly prohibited.
-
Page 3: Table Of Contents
Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual Table of Contents Introduction ...............................2 Pancode VoIP/Pantel VoIP Kit Contents....................3 Physical Description............................4 Pancode VoIP Front Panel ........................4 Pantel VoIP Front Panel........................5 Installation ..............................6 Pancode VoIP/Pantel VoIP Schematic Setup ....................7 Installing the Pantel VoIP/Pancode VoIP ......................8... -
Page 4: Introduction

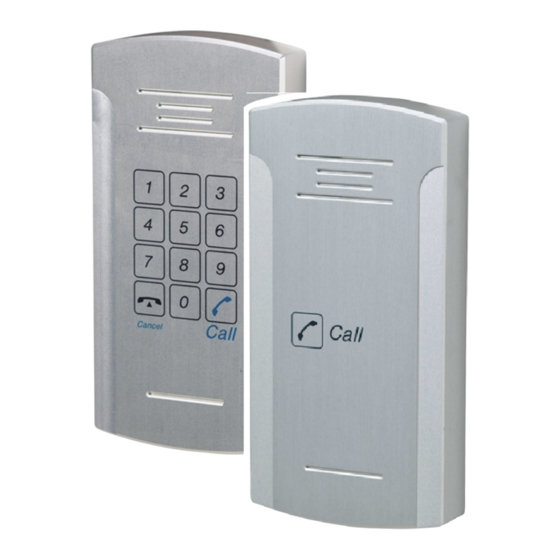

Pantel VoIP outdoor piezo keypad unit The Pancode VoIP and Pantel VoIP are smart wall-mounted access control door phones connected to a local Voice Over IP (VoIP) network of a VoIP PBX, allowing door entry control. They are available for outdoor installation in an aluminum unit with a piezo keypad. -
Page 5: Pancode Voip/Pantel Voip Kit Contents
Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual Pancode VoIP/Pantel VoIP Kit Contents The contents of the Pancode VoIP/Pantel VoIP are as follows: Pancode VoIP or Pantel VoIP unit External 12V AC power supply Ethernet cable Installation CD... -
Page 6: Physical Description
Installation and Programming Manual Physical Description The Pancode VoIP and Pantel VoIP are attached to the wall using a bracket and screws. These units are hardwired and powered by an external 12V AC transformer, included in the package. The Pancode VoIP and Pantel VoIP dimensions are: Height: –... -
Page 7: Pantel Voip Front Panel
Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual Pantel VoIP Front Panel The front panel of the Pantel VoIP unit contains a built-in speaker, a microphone and a touch-keypad (Figure 2). Speaker Call Button Microphone Figure 2. Pantel VoIP Front Panel... -
Page 8: Installation
Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual Installation The Pantel VoIP/Pancode VoIP is mounted on the provided installation bracket. This mounting bracket should be installed as shown in Figure 3. Figure 3. Installation Bracket To install the wall bracket: a. -
Page 9: Pancode Voip/Pantel Voip Schematic Setup
Pancode VoIP/Pantel VoIP Schematic Setup The Pancode VoIP/Pantel VoIP unit is connected to the VoIP PBX as a SIP extension or via any IP router (Network HUB, Switch etc). The unit powers the door lock, provided it is powered by an external supply and not PoE. -
Page 10: Installing The Pantel Voip/Pancode Voip
Installation and Programming Manual Installing the Pantel VoIP/Pancode VoIP The Pantel VoIP/Pancode VoIP can be installed as an individual access control or used with adjacent access- control devices, such as card reading devices (see Section 6). The provided 12V AC external power supply should not be located further than 10m (30ft) from the unit. - Page 11 This will crimp the wire connection. To Install the Pantel/Pancode VoIP: a. Remove the cover from the Pantel VoIP/Pancode VoIP unit and disconnect the wire connector, found at the base of the internal component.
- Page 12 Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual Ethernet RJ-45 ~12V Connector Wire Connectors Figure 6. Unit Connectors Figure 7. RJ-45 Connector...
-
Page 13: Adjacent Access Control Device
Installation and Programming Manual Adjacent Access Control Device This section describes adding an access-control device to an existing Pantel VoIP/Pancode VoIP, and adding a Pantel VoIP/Pancode VoIP to an existing access-control device. The key difference between these two installations is which access-control device controls the door lock relay. - Page 14 Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual To add a Pantel VoIP/Pancode VoIP to an access control device: The access control device opens the door when the Pantel/Pancode triggers the access-control device. For this installation, the access-control device “Bypass Switch” (SW) wires are connected to the “N.O.” and “CMN”...
-
Page 15: Programming
Installation and Programming Manual Programming The Pancode VoIP/Pantel VoIP units are programmed through web-based GUI interface. This process can be implemented after the unit has been installed on the wall, since it requires the connection of an Ethernet cable to the local network. -
Page 16: Application Interface
Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual Application Interface When running the application, the main screen opens, comprising the navigation menu, parameters fields and functional buttons (Figure 12). Figure 12. Application Interface The navigation menu contains the following items:... -
Page 17: System Parameters
Contains the unit authorization on the SIP proxy server. Legal entry: 5 to Account Password (password) 20 characters 0-9, A-Z, a-z. Identifies the Pantel VoIP/Pancode VoIP device on the TCP/IP network. IP Address – Local Address Legal entry: digits 0-9 only. Example: 192.168.21.10. - Page 18 Speed-dialing – sets the Pancode VoIP to speed-dialing operation mode. In this mode, it is possible to make a call using a two-digit speed dial code...
- Page 19 Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual Parameter Description Time mode Day mode and Night mode – enables to select the operational mode of the unit. Number of Door Access Code error retries, when IP Door Panel will...
-
Page 20: Voip Dialing Settings
Enables the DHCP mode for the digital video camera. IP Camera IP Address * Identifies the Pantel VoIP/Pancode VoIP digital video camera on the TCP/IP network. Legal entry: digits 0-9 only. Example: 192.168.21.10. A mask that determines to which subnet an IP address belongs. Legal IP Camera Subnet mask* entry: digits 0-9 only. - Page 21 Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual Parameter Description Prefix for direct dialing field – contains the first digit of a target phone Regular Prefix number, to which it is possible to call directly. You can enter up to eight prefixes using a coma separator.
- Page 22 Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual Parameter Description Access Codes 1 – 10 Access Door Opening Codes fields – contain door opening codes. Each field can contain a code of up to 8 digits, which opens the door lock.
-
Page 23: Technical Specification
Pancode VoIP/Pantel VoIP Access Control Door Phones Installation and Programming Manual 8. Technical Specification Power supply 12V AC; 1.5A or Power Over Ethernet IEEE 802.3af compliant Communication interface Ethernet for voice; and for programming DC Leakage <10 µA Imbalance ratio 300-3400Hz >...
