2.1.3

Pantel/Pancode

The Pantel/Pancode can be installed as the individual access
control or can be used with adjacent access-control devices,
such as card reading devices. For more information on
adjacent access-control device installation, see section 2.2,
Adjacent Access-Control Device.
A 12V AC external power supply is included with the
Pantel/Pancode unit. A 12 to 24V DC/1.6A power adapter,
which provides a quieter door-lock action, can also power the
Pantel/Pancode. The power adapter should not be located
farther than 10m (30ft) from the Pantel/Pancode.
The following figure shows the terminal locations on the wire
connector provided with the Pantel/Pancode. This connector is
attached at the base of the internal component. All wiring to
the Pantel/Pancode is attached to the wire connector.
The Pantel/Pancode supports bypass switch installation. This
allows opening the door with a hardwired switch. A bypass
switch should be connect to the SW and /SW terminals.
Power Supply
Normally
Open/Closed
Outputs
Door Lock
Relay
Terminals
Switch
Terminals
Phone
Line/Extension
Note: For installations of powered-unlocked-state, use DLR
and ~DLR. For installations of powered-locked-state,
use /DLR and ~DLR (this is recommended for safety
purposes in an emergency situation).
The wiring connector is a screw connector type. In order to
attach a wire you must insert the stripped end of the wire into
8 PanCam/Pantel/Pancode Installation and Programming Manual

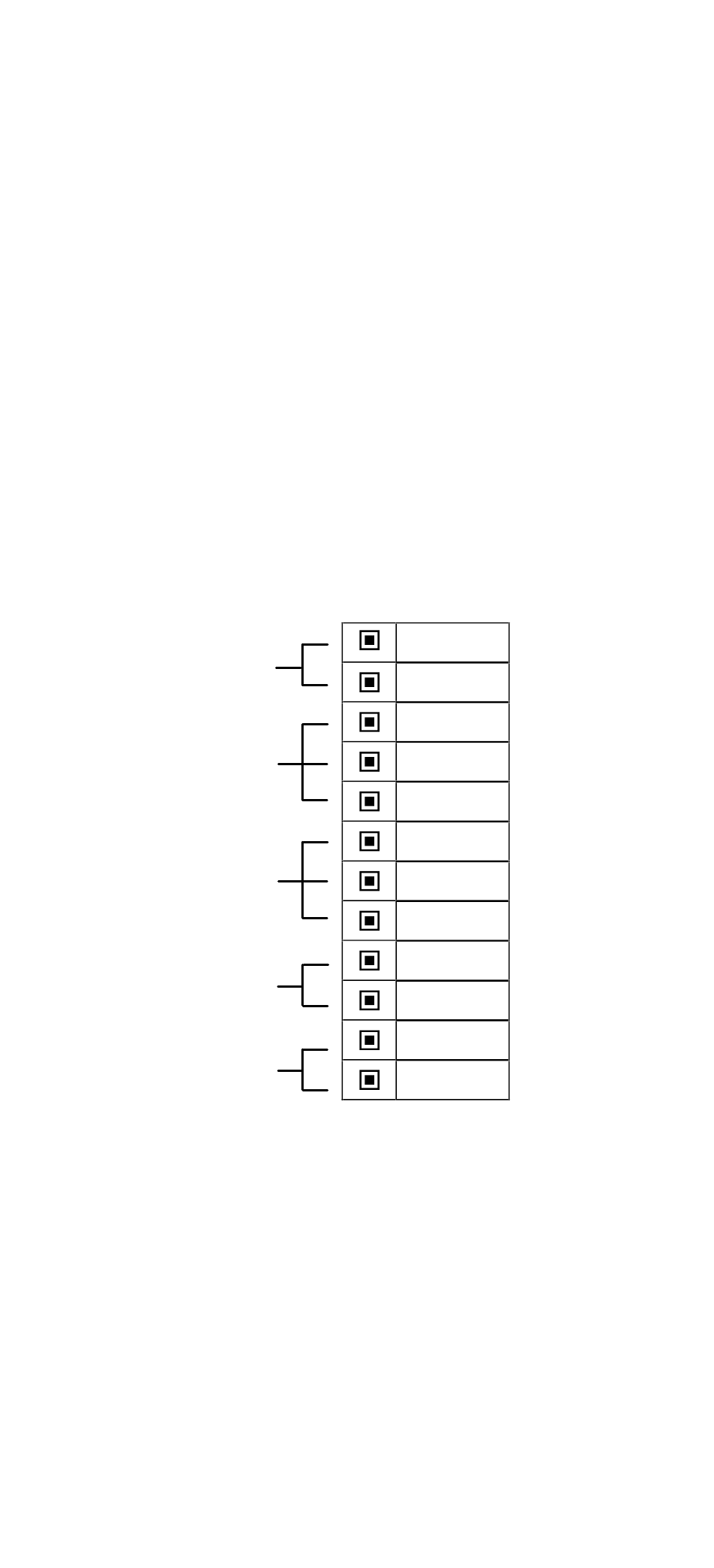

Figure 2-4. Connector Wiring
~12V
~12V
N.C.
CMN
N.O.
DLR
~DLR
/DLR
SW
/SW
LINE
LINE
