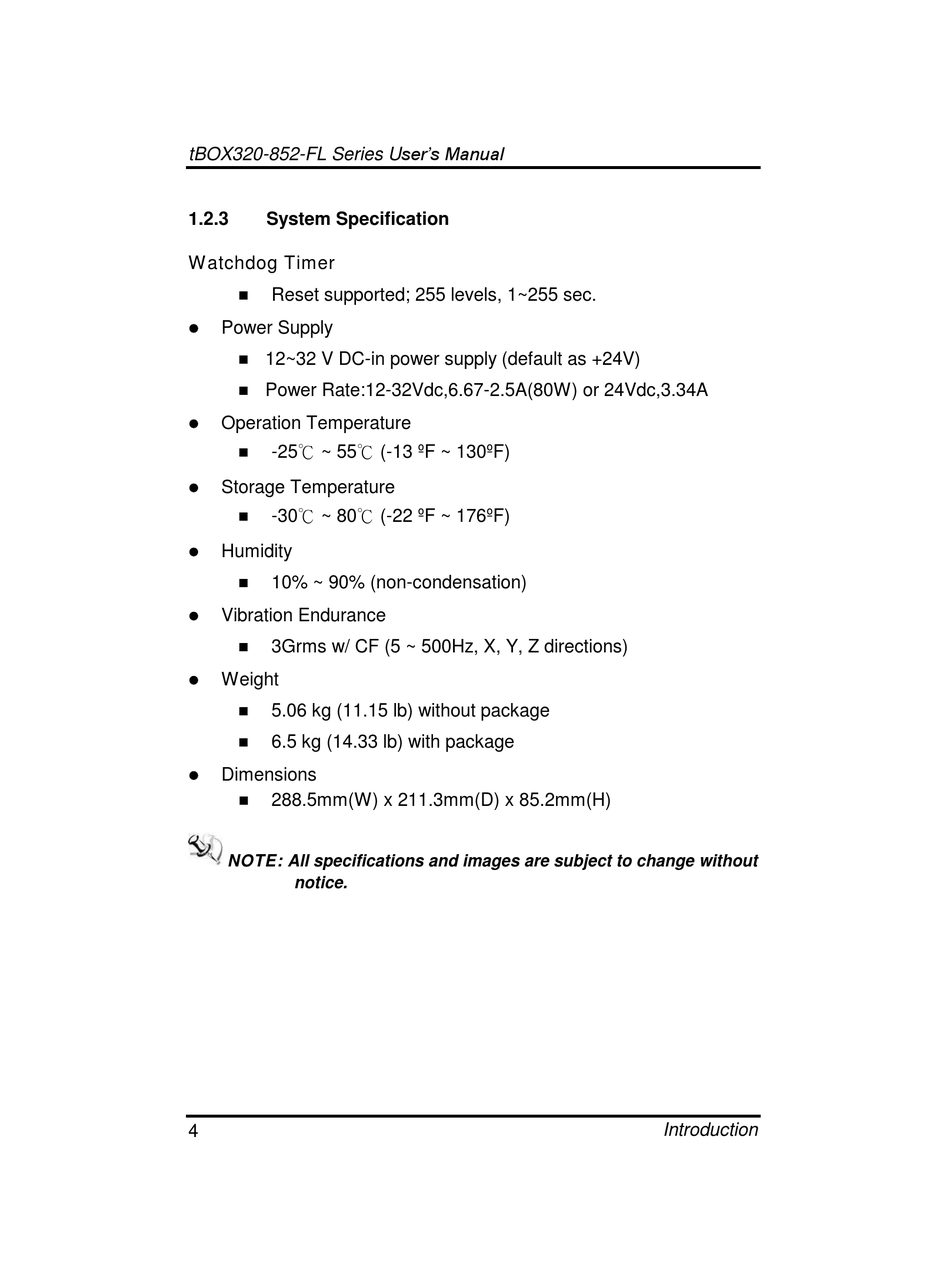

System Specification - AXIOMTEK tBOX320-852-FL Series User Manual

tBOX320-852-FL Series User's Manual
1.2.3

System Specification

W atchdog Timer
 Reset supported; 255 levels, 1~255 sec.
 Power Supply
 12~32 V DC-in power supply (default as +24V)
 Power Rate:12-32Vdc,6.67-2.5A(80W) or 24Vdc,3.34A

Operation Temperature

-25℃ ~ 55℃ (-13 ºF ~ 130ºF)
 Storage Temperature
 -30℃ ~ 80℃ (-22 ºF ~ 176ºF)
 Humidity

10% ~ 90% (non-condensation)
 Vibration Endurance
 3Grms w/ CF (5 ~ 500Hz, X, Y, Z directions)

Weight
 5.06 kg (11.15 lb) without package

6.5 kg (14.33 lb) with package
 Dimensions
 288.5mm(W) x 211.3mm(D) x 85.2mm(H)
NOTE: All specifications and images are subject to change without
notice.
4
Introduction
