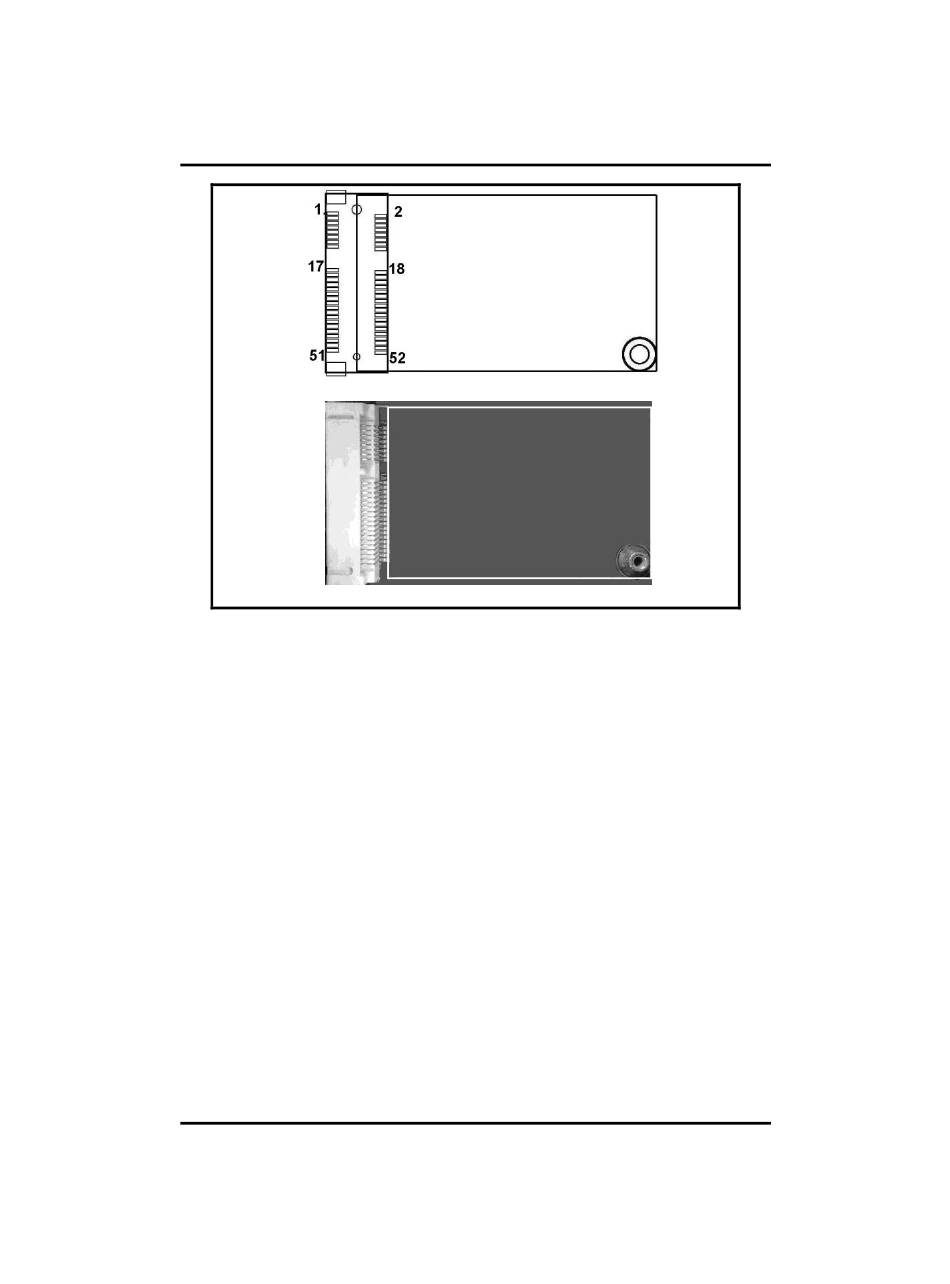

The CN6 is a PCI Express Mini Card connectors with support for
a PCI Express x1 link and a USB 2.0 link , it also connectos to a
SIM card slot(CN4).
A PCI Express Mini Card can be applied to either PCI Express or
USB 2.0. The USB 2.0 support will be helpful during the
transition to PCI Express, because peripheral vendors will need
time to design their chipsets to have the PCI Express function.
During the transition, PCI Express Mini Cards can be quickly
implemented by using USB 2.0.
Jumper Setting & Connector
