1.2

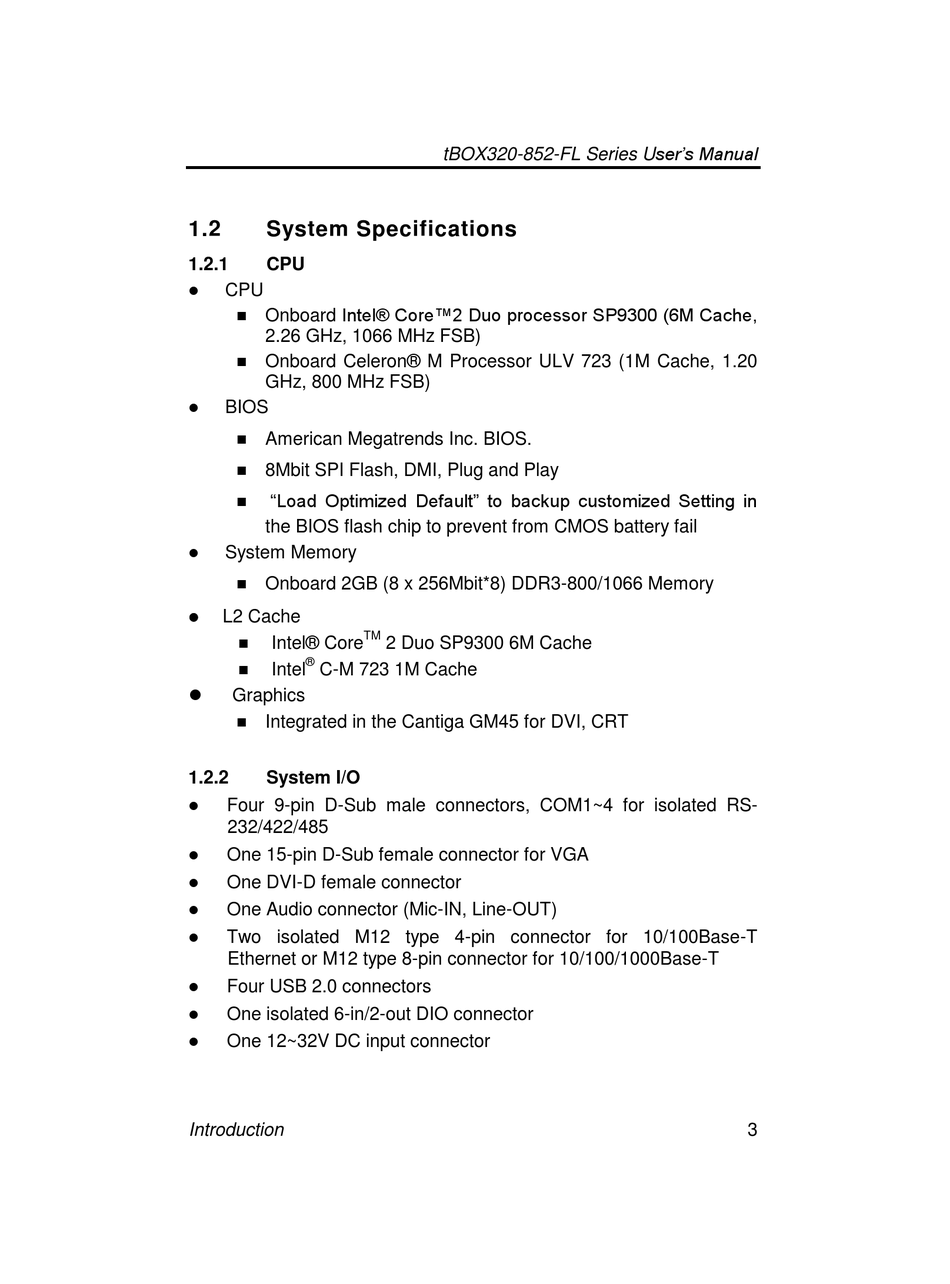

System Specifications

1.2.1

CPU

 CPU
Onboard Intel® Core™2 Duo processor SP9300 (6M Cache,

2.26 GHz, 1066 MHz FSB)

Onboard Celeron® M Processor ULV 723 (1M Cache, 1.20
GHz, 800 MHz FSB)
 BIOS
 American Megatrends Inc. BIOS.
 8Mbit SPI Flash, DMI, Plug and Play
"Load Optimized Default" to backup customized Setting in

the BIOS flash chip to prevent from CMOS battery fail
 System Memory
 Onboard 2GB (8 x 256Mbit*8) DDR3-800/1066 Memory
 L2 Cache
TM
 Intel® Core
®
 Intel C-M 723 1M Cache

Graphics

Integrated in the Cantiga GM45 for DVI, CRT
1.2.2

System I/O

 Four 9-pin D-Sub male connectors, COM1~4 for isolated RS-
232/422/485
 One 15-pin D-Sub female connector for VGA
 One DVI-D female connector
 One Audio connector (Mic-IN, Line-OUT)
 Two isolated M12 type 4-pin connector for 10/100Base-T
Ethernet or M12 type 8-pin connector for 10/100/1000Base-T
 Four USB 2.0 connectors

One isolated 6-in/2-out DIO connector
 One 12~32V DC input connector
Introduction
tBOX320-852-FL Series User's Manual
2 Duo SP9300 6M Cache
