This chapter contains general information and detailed specifications
of the tBOX320-852-FL. The Chapter 1 includes the following sections:


General Description

 System Specification
 Dimensions
 I/O Outlets
 Package List

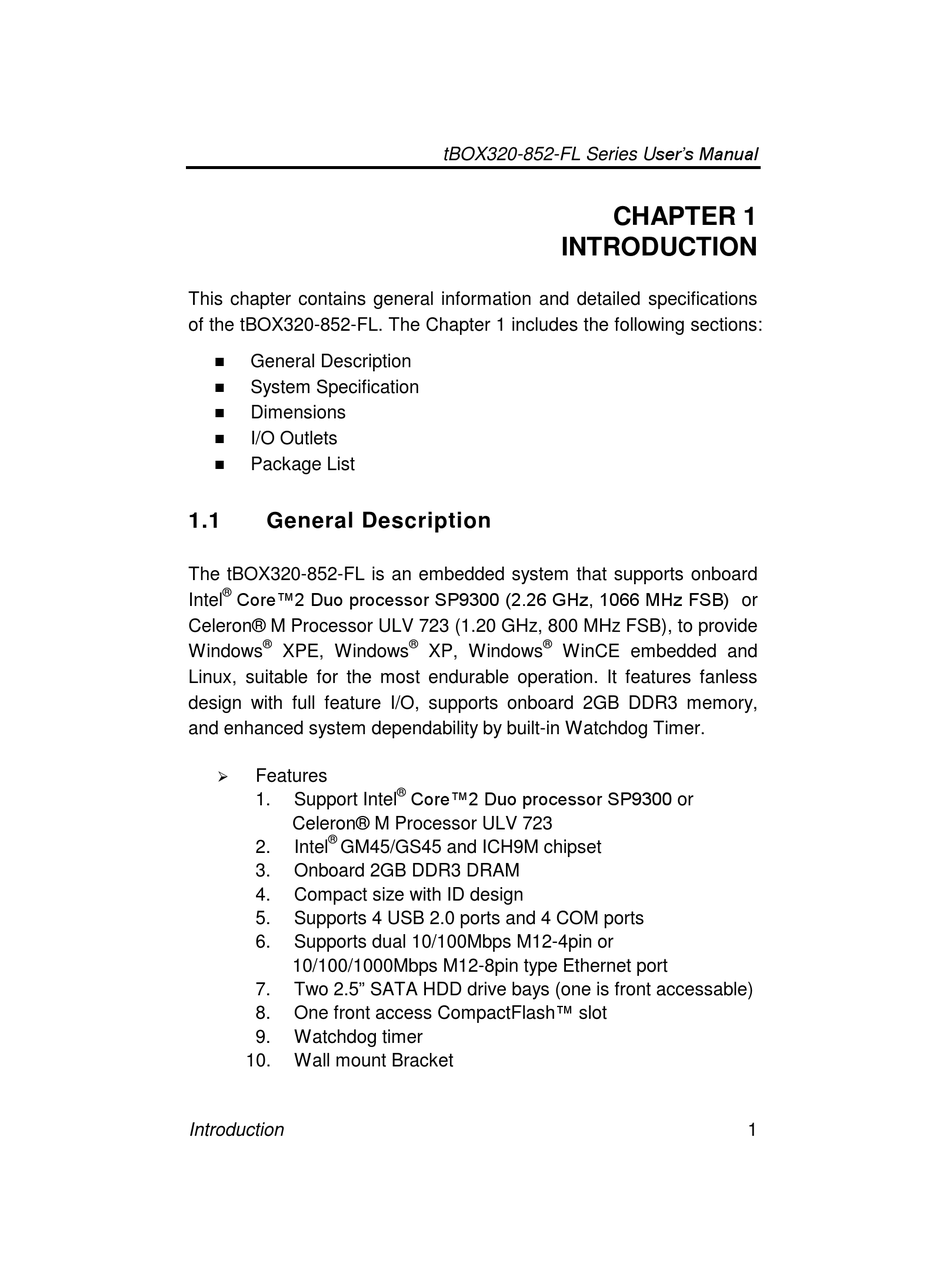

1.1 General Description
The tBOX320-852-FL is an embedded system that supports onboard
®
Core™2 Duo processor SP9300 (2.26 GHz, 1066 MHz FSB) or
Intel
Celeron® M Processor ULV 723 (1.20 GHz, 800 MHz FSB), to provide
®
Windows XPE, Windows
Linux, suitable for the most endurable operation. It features fanless
design with full feature I/O, supports onboard 2GB DDR3 memory,
and enhanced system dependability by built-in Watchdog Timer.
 Features
1. Support Intel
Celeron® M Processor ULV 723
®
2. Intel GM45/GS45 and ICH9M chipset
3. Onboard 2GB DDR3 DRAM
4. Compact size with ID design
5. Supports 4 USB 2.0 ports and 4 COM ports
6. Supports dual 10/100Mbps M12-4pin or
10/100/1000Mbps M12-8pin type Ethernet port
7. Two 2.5" SATA HDD drive bays (one is front accessable)
8. One front access CompactFlash™ slot
9. Watchdog timer
10. Wall mount Bracket
Introduction
tBOX320-852-FL Series User's Manual
INTRODUCTION
® ®
XP, Windows WinCE embedded and
®
Core™2 Duo processor SP9300 or
CHAPTER 1
1
