tBOX320-852-FL Series User's Manual
3.2.2

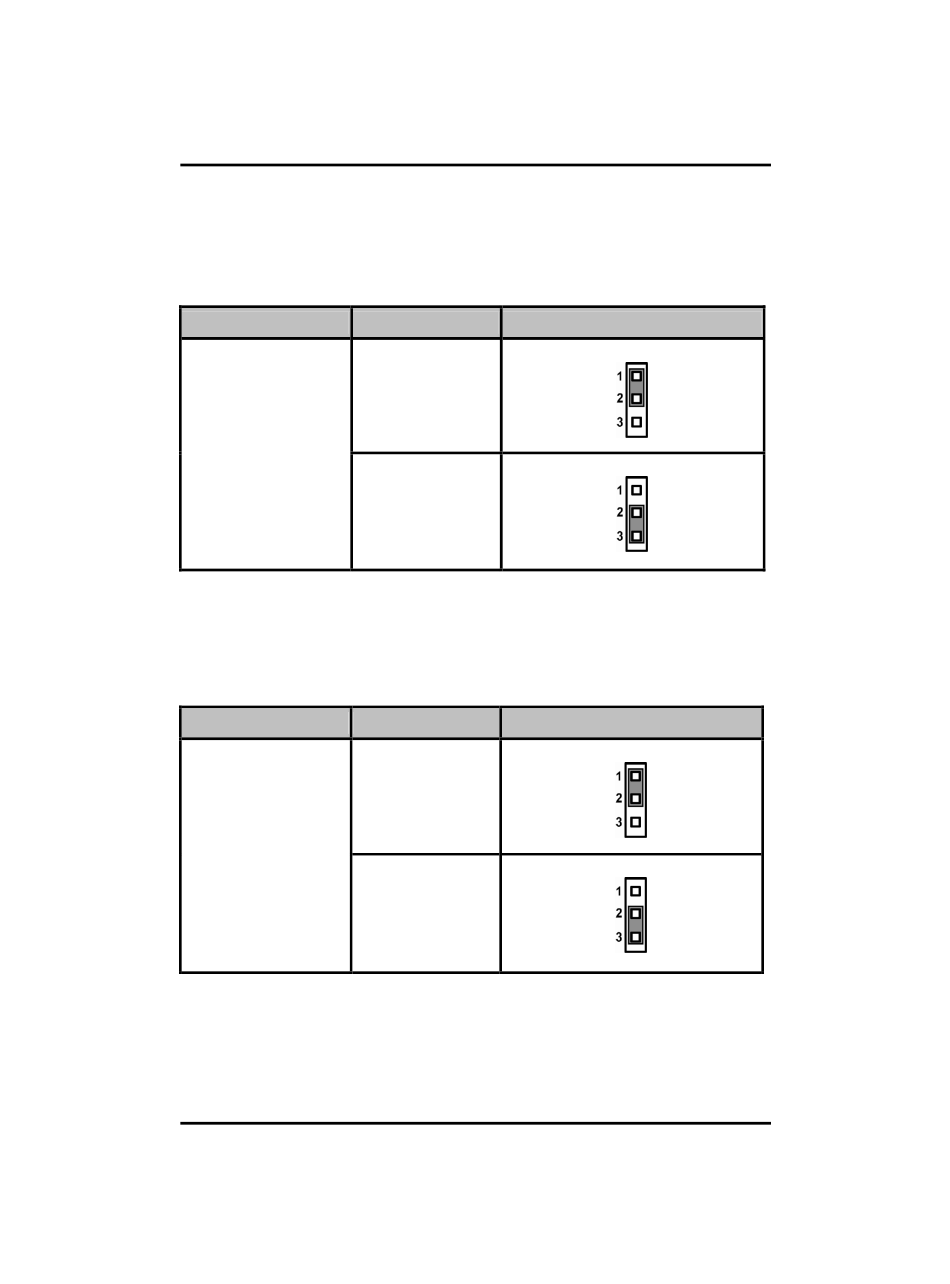

Pin7 of SATA2 Connector Selection Jumper (JP3)

The jumper is to select the voltage or GND for SATA interface. It is
used to set SATA connector (SATA2) PIN 7, to be with voltage 5V or
GND. Usually for SATA DOM.
Description
SATA Voltage
Selection
3.2.3

Pin7 of SATA1 Connector Selection (JP4)

The jumper is to select the voltage or GND for SATA interface. It is
used to set SATA connector (SATA1) PIN 7, to be with voltage 5V or
GND. Usually for SATA DOM.
Description
SATA Voltage
Selection
34
Function
GND (Default)
+5V level
Function
GND (Default)
+5V level
Jumper Setting & Connector
Jumper Setting
JP3
JP3
Jumper Setting
JP4
JP4
