2.3 Replacing the Fan
The IPC-601-SCA provides three hot-swap fans. There is no screws on the fans and it is easy to
replace the fans.
2.4 Adding Disk Drives
The IPC-601-SCA supports three hard disk drives, one slim-type CD-ROM (which is set in the master
mode only) and one slim-type floppy disk drive. The IPC-601-SCA provides one SCA-2 backplane and
supports three hot-swap hard disk drives.
Please notice that if the hard disk drives used in the IPC-601-SCA shall be 3.5", 1" height SCSI hard
disk drives with 80-pin SCA-2 connecotrs.
In order to install the hard disk drives in the chassis, please follow the following procedures.
1. Unfasten the dummy HDD trays from the hard disk racks.
2. Put hard disk drives in the hard disk racks and fasten them with screws.
3. Slide the hard disk racks into the drive bay.
8
IPC-601-SCA User's Manual

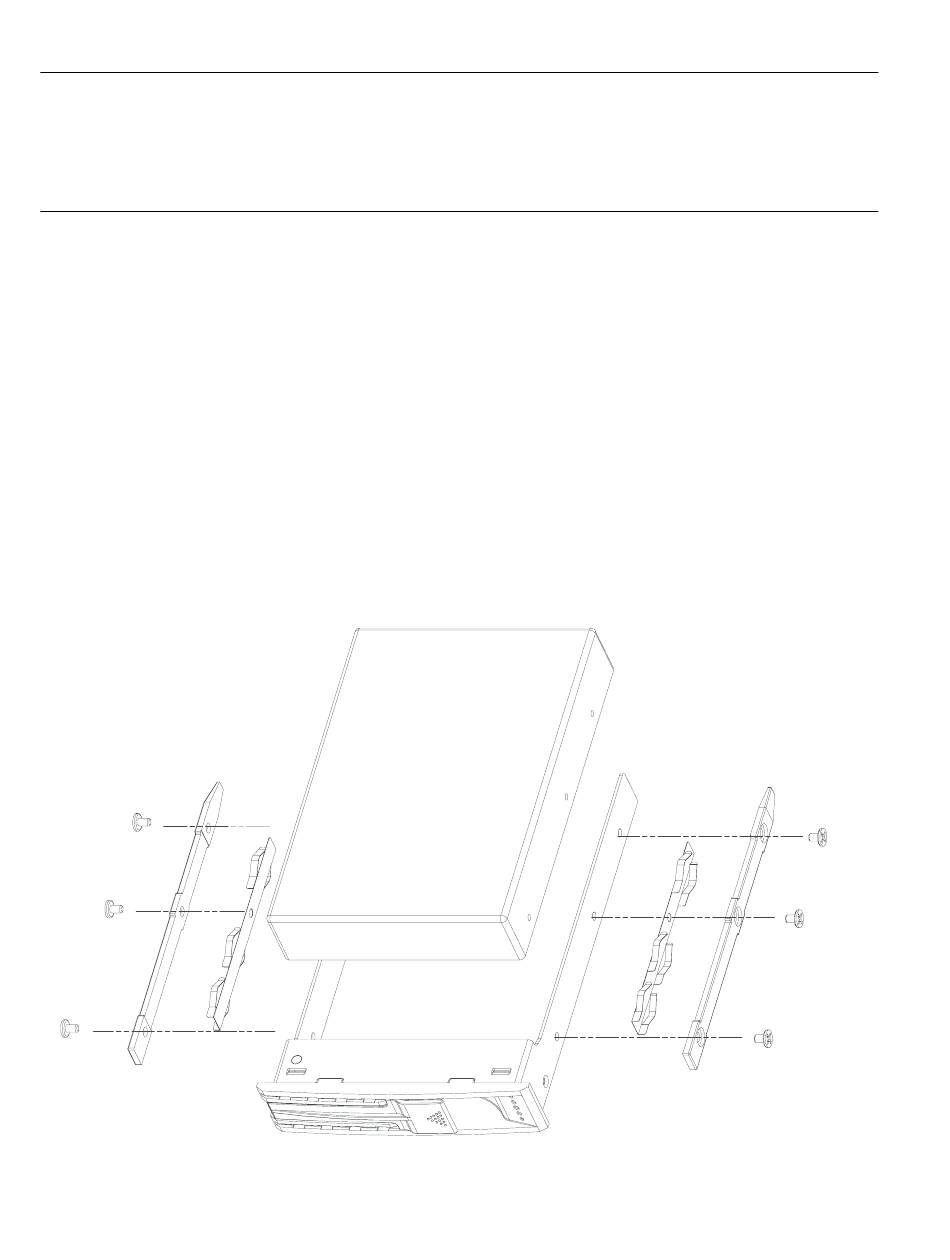

Figure 2-3 Installing a hard disk drive in the hard disk rack
