Removing The Cover - Advantech IPC-601-SCA Manual

1u e-server chassis
Hide thumbs
Table of Contents

Advertisement

2.1 Removing the Cover

1. Unscrew the screws at the rear side of the upper cover.
2. Slide the upper cover backwards.
3. Lift up the upper cover.
Please refer to the Figure 2-1 below for illustration.
6
IPC-601-SCA User's Manual

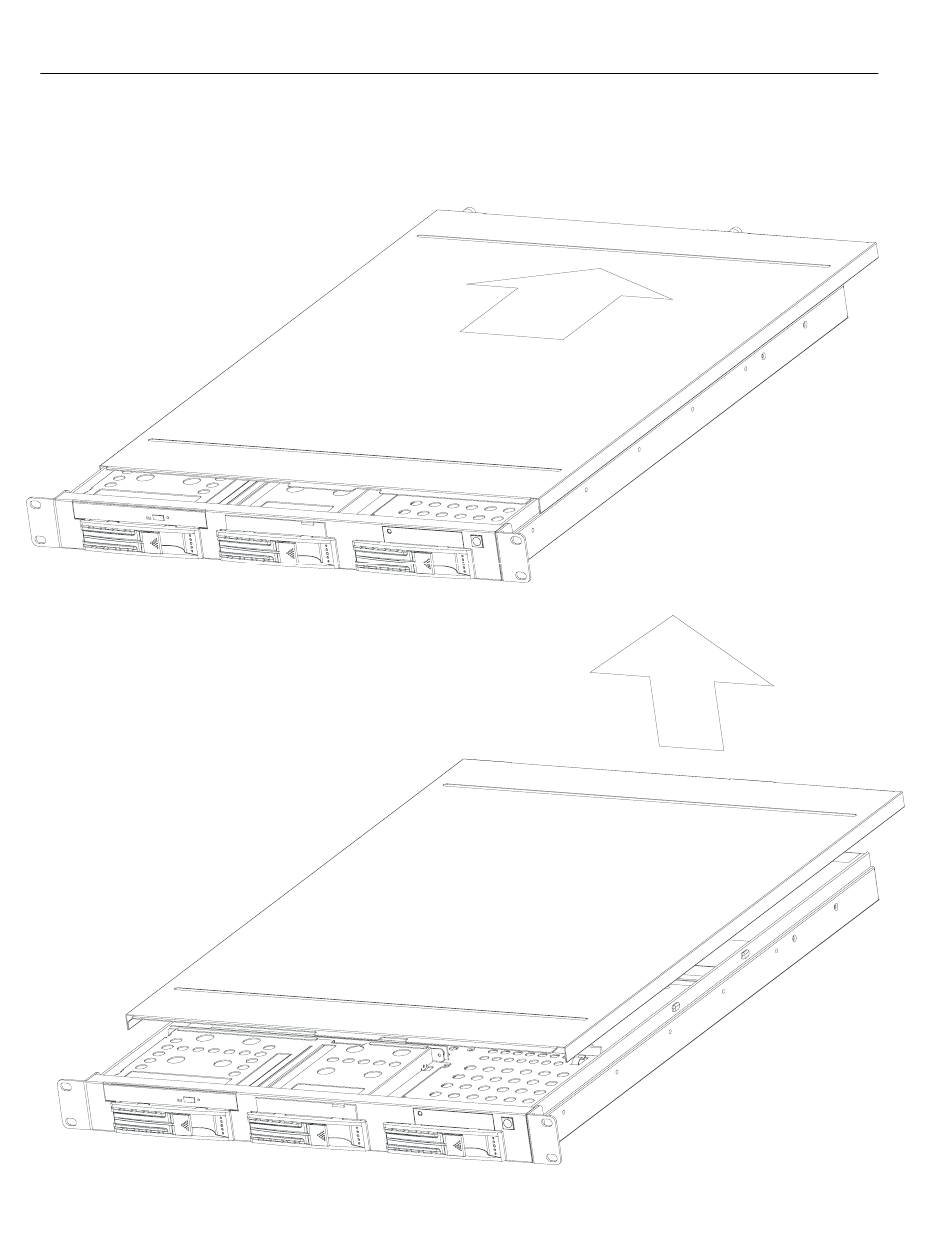

Figure 2-1: Upper cover removing
